| SES Part Number | MAPPS-90-108-12-120 |
| System Power | 90 Watts |
| PV Module Model | SES 490J |
| Battery | Deka sealed gel solar battery |
| Enclosure | NEMA Rated |
| Mount | Side of pole |
| Panel Dimensions | 47.6" x 21.1" x 2" |
MAPPS Weatherproof Pole-Mounted Remote Off-Grid Solar System Project for MDS Radio Communication
SKU SES-PROJ-MAPPS-90-108-12-120
 |
Commercial Solar System Installation Projects |

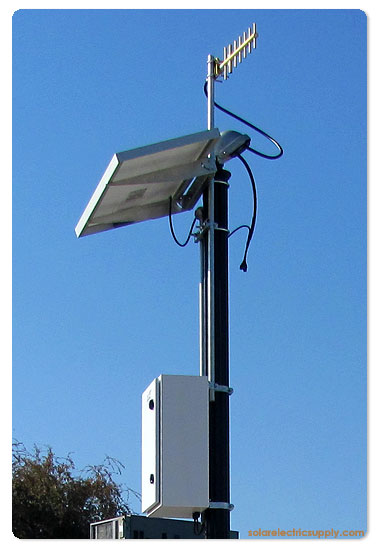

MAPPS® Pole Mount NEMA Enclosure Solar Battery System
Pole-mounted NEMA rated enclosure solar system designed for long life in harsh weather climates.
When one of the world's largest utilities needs their remote power problems solved, they turn to Solar Electric Supply! We were asked to provide a solar power solution for a utility smart gas meter reader MDS radio communication system. This is a radio communication system for automatically reading PG&E gas "Smart Meters" at customer facilities. These are deployed in urban areas to read residential and commercial smart meters. The MAPPS systems are placed on PG&E owned light poles and utility towers and power the radios that gather the local data and send back to headquarters for billing. SES designed special mounting brackets to accommodate the various pole sizes. This particular system is called the MAPPS 90-108-12, with optional DC to AC sine wave inverter.
The main components supplied by Solar Electric Supply consist of:
- Monocrystalline solar module
- PWM or MPPT charge controller
- Deka sealed gel deep-cycle solar battery for 12 VDC nominal
- NEMA 3 or NEMA 4 weatherproof enclosure
- Solar Electric Supply system design and support
Our MAPPS® systems are designed by NAPCEP certified engineers with the highest quality components and standards.
Contact us toll-free: (877) 297-0014 for expert assistance.
The reliable, rugged and autonomous NEMA Rated enclosure design of MAPPS® make them ideal for many long-term remote outdoor solar power applications.
Off-grid pole-mounted solar battery system:
| Model Number | MAPPS-90-108-12 |
| Nominal System Voltage | 12 VDC |
| Solar PV Module | SES 490J 12 Vdc 90 Watts |
| Solar Module Certifications | UL 1703, Class C Fire Rating |
| PV Module Mount | SPM1-Multi side of pole mount |
| Battery Type |
 Deka Solar 8G30H Gel Cell |
| Battery Capacity | 12V 108 Ahr at 100 hour discharge rate |
| Enclosure Model | AL-POL-1-G31N |
| NEMA Rated Enclosure | NEMA 3R |
| Charge Controller | SunSaver SS-10L-12 |
| Controller Certifications | ETL Listed to UL 1741 & CSA C22.2 No. 107.1-01 |
 |
 Wiring Diagram & Installation Guide |
| MAPPS System Weight w/ Batteries | 127 lbs. |
| Origin | USA |
|
All of our commercial solar systems are uniquely tailored for each customer's needs.
