Renesola Monocrystalline
255 Watt Solar Module w/ Square Monocrystalline Solar Cells
ReneSola Model Number JC255S-24/Bb-b
STC Rating 255.0 Watts
PTC Rating 233.0
Open Circuit Voltage (Voc) 37.6 Volts
Short Circuit Current (Isc) 8.99 Amps
Frame Color Black
Origin China
Power Tolerance -0 / +5%
Module Efficiency 15.4 %
Area 17.54 ft²
Weight 41.9 lbs.
Length 64.6 in.
Width 39.1 in.
Height 1.6 in.

ReneSola JC255S-24/Bb-b Monocrystalline Solar Panel

SKU JC255S-24/Bb-b

Renesola

ReneSola JC255S-24/Bb-b Monocrystalline Solar Panel

  • 255 Watt solar panel using monocrystalline solar cells
  • Sleek uniform dark color.
  • Black anodized weatherproof frame
  • 15.7% module efficiency
  • Nominal output power starts at 0%.
  • 25 year linear product warranty..

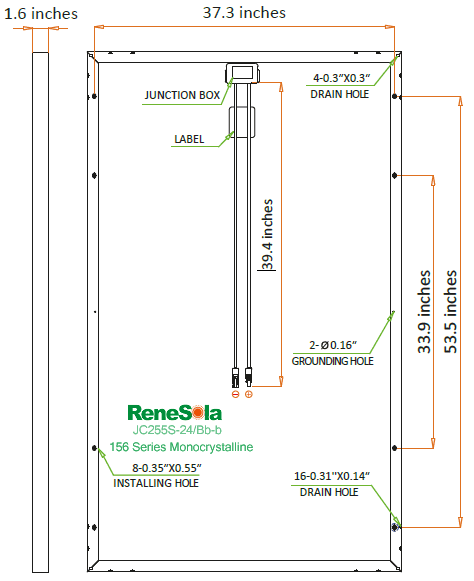

JC255S-24/Bb-b Dimensions

JC255S-24 Review

Complete ReneSola JC255S-24/Bb-b solar panel systems available!

Solar Electric Supply not only supplies ReneSola 156 Square Monocrystalline Series solar panels at a discount price, we also carry complete ReneSola grid-tie systems.

Systems Include:

ReneSola JC255S-24/Bb-b solar modules
Choice of grid-tie inverter
Roof or ground mount
Schematic and installation support.

Contact us for the latest standard or custom grid-tie ReneSola monocrystalline solar panel systems at a wholesale price.

Renesola solar system

ReneSola JC255S-24 156 Square Mono Solar Panel Features Review

A very high module conversion efficiency means a smaller footprint. The JC255S-24 uses less space per watt than other types of solar panels to maximize solar power production in a limited space.

The sleek black frame and dark square monocrystalline solar cells provide an aesthetically pleasing and modern look for any system application.

Mechanical Load Capability of up to 5400 Pa ensures the highest snow and wind load resistance.

These are easy to install with standard MC cables. The JC255S-24/Bb-b is commonly used for residential rooftop solar systems and other various applications.

Conforms with IEC 61215:2005, IEC 61730: 2004, UL 1703 PV Standards
ISO9001, OHSAS18001, ISO14001 Certified
Application Class A, Safety Class II, Fire Rating C




JC255S-24 Certifications

monocrystalline module info


Contact us for discount pricing, solar panel system design or reviews for the ReneSola JC255S-24/Bb-b Solar Panel.
