SolaEdge StorEdge SE7600A-USS2, HV Hybrid Inverter, 7.6kW, 500VDC, 240VAC, 60HZ

High Power Model for Single-Phase Grid-Tie
Energy Storage Battery Backup Solar Systems

SolarEdge StorEdge Model Number SE7600A-USS2
AC Output (Loads/Grid)
Rated AC Power Output 7,600 W
Max. AC Power Output 8,350 W
AC Output (Backup Power)
Rated AC Power Output 5,000 W
Max. AC Power Output 7,000 W
PV DC Input
Maximum DC Power 10,250 W
Battery DC Input
Peak Power 7,000 W
Efficiency
Inverter Efficiency 98%
CEC Weighted Efficiency 97.5
Nighttime Power Consumption <5W

Complete SolarEdge StorEdge energy storage solar systems at wholesale pricing.

Contact Us

SolarEdge StorEdge SE7600A-USS2 Hybrid Energy Storage Inverter

SKU SE7600A-USS2
SolarEdge

SolarEdge StorEdge SE7600A-USS2 Hybrid Inverter Solution

SolarEdge’s StorEdge SE7600A-USS2 storage solution automatically provides homeowners with backup power in case of grid interruption, and allows home owners to maximize self-consumption and to increase energy independence. We carry the latest SE7600A-USS2 UL1741, UL1699B, UL1998, certified inverters with IEEE1547, Rule 21, Rule 14 Grid Connection Standards.

StorEdge is popular for:

SolarEdge StorEdge inverter with LG Chem RESU10H

The SolarEdge StorEdge SE7600A-USS2 will automatically charge and utilize the LG Chem RESU10H battery.

  • Self Consumption / Backup Power
  • Time Of Use / Backup Power (for California or areas where power costs are high or there is a SGIP program to subsidize cost)
  • Backup Power for East Coast and Florida where they have power outages.

StorEdge™ Power Backup Benefits

  • Backup power using Li-ion battery technology
  • Able to support the high-powered LG Chem Lithium Ion RESU 10H
  • Superior efficiency at up to 98%!
  • Type 1 Photovoltaic Arc-Fault Circuit-Protection
  • Small, lightweight and easy to install on provided bracket
  • Built-in module-level monitoring through power optimizers
  • Communication to internet via Ethernet or Wireless
  • Outdoor and indoor installation
  • Integral AC/DC Switch
Energy Watthour Meter Self Generation Consumption The optional SolarEdge Energy Meter allows for consumption monitoring, power export control and other StorEdge applications.

More Energy

• DC coupled solution allows high system efficiency
• PV power is stored directly in the battery
• No additional conversions from AC to DC and then back to AC again
• Module-level power optimization for greater PV solar power harvest

Simple Design & Installation

• A single inverter for both PV, storage and backup power
• Outdoor installation allows flexibility in battery location
• No special wires are required, utilizes the same PV cables

Full Visibility and Easy Maintenance

• Monitor the battery status, PV production, and self-consumption data
• Smarter energy consumption to reduce electricity bill
• Monitor battery energy levels and remaining hours of backup power
• Remote access to inverter/battery software

Enhanced Safety

• The PV array and battery voltage of a StorEdge system are designed to reduce to a safe voltage upon AC shut down, when not in backup mode
• Integrated Rapid Shutdown functionality ensures low current when an emergency shutdown occurs

The StorEdge SE7600A-USS2 inverter is part of SolarEdge’s larger fan-cooled single-phase inverter series. These are designed to provide higher-power systems at a lower cost than multiple small convection cooled inverters.

Revenue grade inverter with ANSI C12.1 Revenue Grade Data also available: SE7600A-USS20NNM2

Contact us toll-free: (877) 297-0014

Read more about SolarEdge StorEdge Inverters.

SolarEdge StorEdge SE7600A-USS2 Inverter Review

SolarEdge’s StorEdge DC coupled storage solution automatically provides homeowners with backup power in case of grid interruption, and allows home owners to maximize self-consumption for maximum energy independence.

Unused PV power is stored in a battery and used during a power outage or when PV production is insufficient. When there is a power outage, a combination of PV and battery is used to power important loads such as the refrigerator, TV, lights and AC outlets, day or night. The solution is based on a single inverter for PV, storage and backup power.

Reliable, Safe & Efficient Power

Increased energy yield compared to the traditional inverter system:

  • SolarEdge inverters allow for more solar energy harvest due to module-level MPPT
    No power loss due to module mismatch due to power optimization per module
  • Constraint free design allows for utilization of more roof area
  • Easy and cost efficient maintenance for increased up-time of your PV system

Works in conjunction with SolarEdge Power Optimizers for the greatest efficiency

The SolarEdge SE7600A-USS2 inverter is designed with sophisticated digital control technology with efficient power conversion architecture. This innovation combined with Power Optimizers achieves superior solar power harvesting and best-in-class inverter reliability for home grid-tie solar system applications.

The SolarEdge power optimizer is connected by installers to each module, replacing the traditional solar junction box. The optimizers are designed be as reliable as the solar panels that they are mounted to. Power Optimizers are based on the SolarEdge reliability strategy, a physics-based multi-level method of failure point identification. Providing a warranty for a proven 25 year system operational lifetime was enabled through a combination of reliability-oriented design rules.

The fixed-voltage technology ensures the SolarEdge SE7600A-USS2 solar inverter is always working at its optimal input voltage over a wider range of string lengths and regardless of the environmental conditions of your solar system.

StorEdge Options

SolarEdge Energy Meter

The SolarEdge meter is used for battery integration and for production / consumption readings for Feed-in Limitation. This RS485 Electricity Meter enables the use of Export Control and Consumption Monitoring for StorEdge Applications. It mounts inside the included NEMA 3R weatherproof enclosure and comes with 2 current transformers.

auto-transformer

Auto-Transformer

This separate switching transformer connects to a StorEdge™ Inverter to quickly and automatically enable battery backup power. The auto-transformer connects to the StorEdge inverter to enable split-phase balancing for 120V loads, using the inverter’s 240V output to power the 120V backed-up loads. It is only needed for StorEdge backup battery power applications, it is not required if the system is working in Smart Energy Management mode.

LG Chem RESU Energy Storage Battery

The StorEdge SE7600A-USS2 High-Power Model can support an LG Chem RESU 10H ESS battery module pack. The RESU10H can store surplus energy generated from rooftop solar panels for use when needed. When the sun has set, energy demand is high, or there is a black-out, you can use the energy stored in your ESS to meet your energy needs at no extra cost.

Power Optimizers

Power Optimizers utilize a fixed-voltage technology to ensure the SolarEdge system is always working at its optimal input voltage over a wider range of string lengths. The SolarEdge power optimizer is connected by installers to each module, replacing the traditional solar junction box. The optimizers are designed be as reliable as the solar panels that they are mounted to.

SolarEdge's Multi-Level Reliability:

The SolarEdge multi-level reliability plan involves Design Analysis & Qualification by in-house and external experts, sub-system testing by Accelerated Life Testing (ALT) of critical components, and integrative testing of design prototypes (via HALT) and large sample groups.

SolarEdge StorEdge monitoring

 As part of these efforts, tens of thousands of components have been evaluated in accelerated life chambers (burn-in, thermal cycling, humidity and so forth) as well as hundreds of products in field tests and stress tests. These tests have run for the equivalent of over 100 years (well over the expected life of photovoltaic systems). The lessons learned are invaluable and as a result, SolarEdge produces systems with unsurpassed reliability.

In order to verify that each SolarEdge product that leaves manufacturing plants conforms to their high reliability and quality standards, each component, sub-assembly, and final product are tested multiple times during production. These tests include: Automatic Optical Inspection, In-Circuit Testing, Board- and Component-Level Functional Testing, Safety Testing and Integrative Stress Testing. These rigorous screening and testing procedures, which are completed for 100% of the products SolarEdge manufactures, enable them to guarantee that SolarEdge products work as expected for the entire product lifetime.

A key element of SolarEdge's reliability strategy – and a significant differentiator relative to its competitors – is use of proprietary application specific ICs (ASIC) in its products. The best way to improve the reliability of electrical circuits is to reduce the number of components in it – this is done in SolarEdge products by replacing a large number of discrete components with a single ASIC designed specifically for the task at hand. The ASIC itself is manufactured according to proprietary design rules specifically defined to allow for the long 25 year lifetime of the ASICs. Extensive analysis and testing has been done to assure the ASIC packaging is robust enough to handle the mechanical and electro-chemical stresses experienced over 25 years of daily thermal inverter cycling.

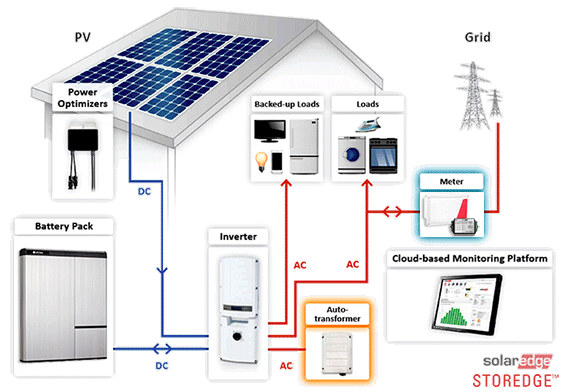

StorEdge energy storage battery solar system review

SolarEdge StorEdge SE7600A-USS2 is a grid-tie inverter system with self-generation / DC battery backup capability. It will automatically charge and utilize the LG Chem RESU10H or Tesla Powerwall battery.

Safety:

  • During Installation: safe string voltage until inverter & AC supply are turned on
  • Maintenance: safe string voltage with an automatic DC shutdown once inverter is turned off
  • Emergency: safe string voltage with an automatic DC shutdown after grid disconnection or in reaction to high temperature
    Electrocution and fire risks are eliminated with safe voltages during installation, maintenance and firefighting

Peace of mind:

  • Ability to monitor the PV system anytime, anywhere in order to guarantee optimal operation
  • Module level, real-time alerts of system issues pinpointed on a virtual map

Increased energy yield:

  • More energy due to module-level MPPT
  • Mismatch power losses eliminated
  • Shade tolerance assures maximum power harvest under trees and other obstructions
  • Easy and cost efficient maintenance for increased up-time of your PV system

SolarEdge StorEdge energy storage battery systems available at low wholesale prices.
