Solectria PVI5000 Home Grid-Tie Inverter

Availability: Call For Availability

Quick Overview


  • Provides 5000 Watts continuous power

  • Highest efficiency transformer isolated inverters in the industry, 96% CEC

  • Fully integrated with DC disconnect, 3 or 4 fuse combiner and detachable DC wiring box

  • Widest DC voltage range of 200-600 VDC

  • High reliability, 10 year warranty and certification to latest UL1741/IEEE1547

  • Free PC software and both RS232 and RS485 communication ports

Features

  • Top CEC Efficiency
  • DC Disconnect
  • String Combiner
  • Quick-mount bracket
  • Lightweight
  • Universal 240/208 VAC

Solectria PVI5000 Inverter

Double click on above image to view full picture

Zoom Out
Zoom In

Specifications

Model Number PVI5000
AC Nominal Power (W) 5150.0
Peak Efficiency 0.967
CEC Weighted Efficiency 0.960
Weight (lbs) 58.5
Height (in) 29.8
Width (in) 17.8
Depth (in) 8.3

Manufacturer Specification Sheets

View FilePVI3000-5300 Data Sheet    Size: (990.2 KB)

Details

solectria inverter

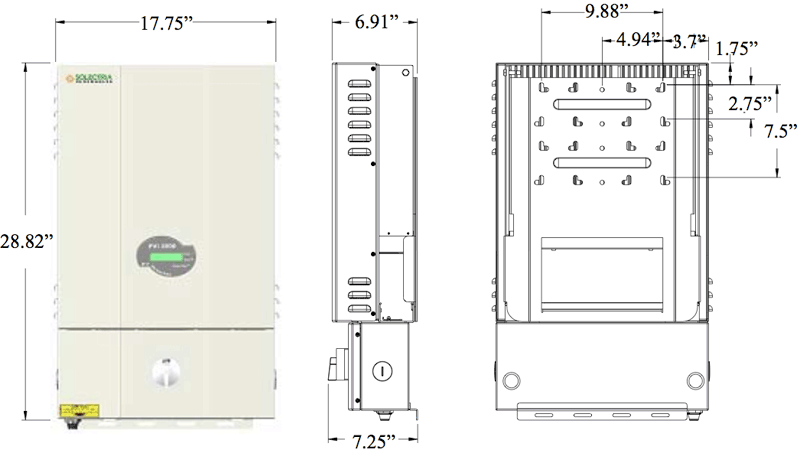

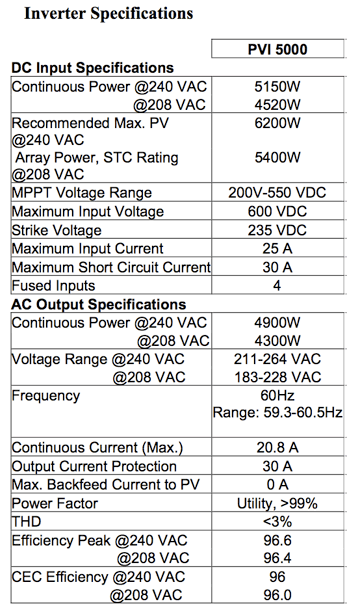

Solectria PVI5000 Inverter Specifications Solectria PVI5000 Inverter Dimensions
