Morningstar SureSine Inverter

morningstar

The Sure Sine inverter has been developed using Morningstar’s power electronics expertise and 25 years of experience with remote off-grid photovoltaic (PV) systems.

suresine inverterThis product is a pure sine wave inverter designed specifically to meet the needs of rural PV electrification requiring AC power including solar home systems, schools, community centers and health clinics. This inverter is also a good choice for small PV systems, telecom, remote cabins and weekend homes, RV/caravans and boats.

The SureSine’s combination of performance, features and competitive price provides the best small inverter value on the market. It is highly reliable, having no internal cooling fan or other moving parts prone to failure.

Improved Load Operation

Pure Sine Wave – Provides quality AC equivalent to grid power. A sine wave will extend the life of the household appliances (lights, TV, fans) and improve load performance.
Toroidal transformer design – Generates good wave form throughout the range of input voltages.
Outstanding Surge Capability – Handles a 200% surge during load start-up, to a maximum of 600 watts.


More Power Available

High Efficiency – A high peak efficiency will reduce heating and make more solar energy available for powering loads.
Low Self-Consumption – The SureSine consumes 450mA while powering loads. During no load conditions, solar energy is not wasted because the SureSine automatically powers down to stand-by mode, reducing self-consumption to one tenth of operating consumption.

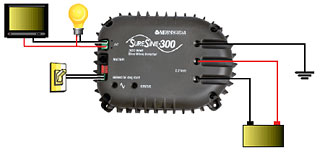

suresine diagramExtremely High Reliability

Extensive Electronic Protections – The SureSine has extensive electronic protections that will automatically protect against faults and user mistakes such as short circuit, overload, high temperature and low voltage disconnect. Recovery from most faults is automatic.
No Internal Cooling Fan – A key design objective since fans often fail in harsh environments and are noisy, consume power and blow dirt into the electronics.
Tropicalization – The SureSine uses epoxy encapsulation, conformal coating, stainless steel hardware, and an anodized aluminum enclosure to protect against harsh tropical and marine environments.

Other Features

More Information – The two LEDs provide important information to the user about system status and any fault conditions. An optional digital meter may be connected to the SureSine to display additional system information.
Remote On/Off – Improves safety by making it easy to install the SureSine in an inaccessible location or enclosure. Reduces system cost by avoiding the need to add an AC safety disconnect to the system.
Adjustability – Four DIP switches provide easy adjustability of several system parameters. Additional adjustability is possible via RJ-11 to RS-232 adapter to a personal computer and using Morningstar’s PC software.

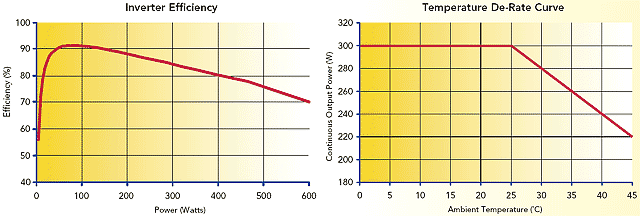

suresine specimen

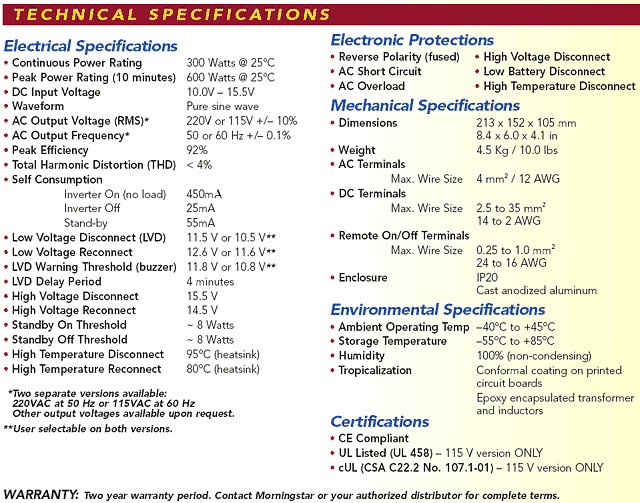

suresinetechnical specimen



  Morningstar Inverters:

MODEL
Power Rating
Weight
Waveform
Comments
SureSine 300
300 W
4.5 kg
10 lbs
Pure
Sinewave
Pure Sinewave
The best for computers,
stereo amplifiers, radio and television
Spec sheet
SureSine 600
600 W
4.5 kg
10 lbs
Pure
Sinewave
Pure Sinewave
The best for computers,
stereo amplifiers, radio and television
Spec sheet


Call toll-free (877) 297-0014 for more information or to order.
