Trina 230 Watt Solar Panel TSM-230DA05

Availability: Call For Availability


Trina Solar

Trina Solar TSM-230DA05 Solar Panel

The Trina TSM-230DA05 230 watt solar panel features very efficient monocrystalline solar cells.

  • High Efficiency 230 Watt Monocrystalline Solar Module
  • Tolerance of ±3%
  • 3 Bus Bar Configuration
  • Plug and Play Connectors
  • High Transmission, Low Iron Tempered Glass
  • 5 year manufacturing warranty

Residential Solar System Price

residential solar system cost

We carry complete pre-configured residential solar systems.
Perfect for the solar contractor or handy homeowner.

Trina 230 Watt Solar Panel TSM-230DA05

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

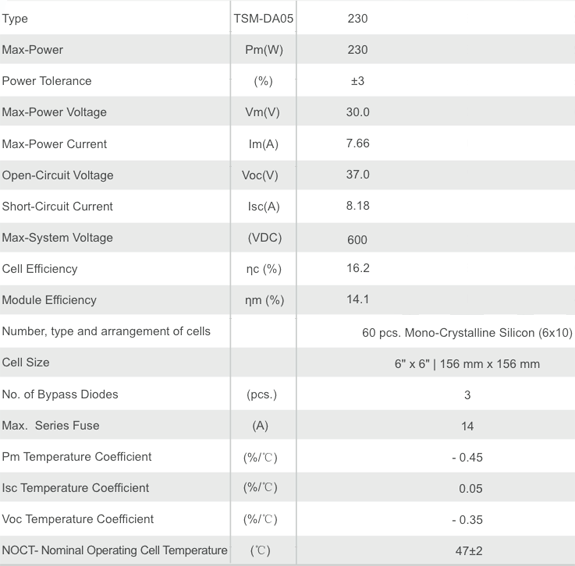

Model Number TSM-230DA05
STC Rating 230.0 Watts
PTC Rating TBA
Open Circuit Voltage (Voc) 37.2 Volts
Short Circuit Current (Isc) 8.18 Amps
Frame Color Silver
Origin Call
Power Tolerance -3 / +3%
Module Efficiency 14.1%
Weight 42 lbs
Width 39.05 in.
Length 64.95 in.
Height 1.81 in.

Manufacturer Specification Sheets

View File Trina Solar TSM-230DA05 Solar Module Specification Sheet    Size: (1.01 MB)


The TSN-230DA05 is Ideal for Residential Solar Systems

TSN-230DA05 Dimensions

TrinaSolar TSM-230DA05 dimensions

About Trina Solar:

Trina Solar produces and commercializes a wide variety of PV modules, both monocrystalline and multicrystalline, with power output ranging from 165W to 240W. Adapting our product range to meet market demands allows us to provide our customers with a broader selection of solutions. Trina Solar had a production capacity of 350 MW at the end of 2008. Trina Solar's modules provide reliable and environmentally friendly electric power for residential, commercial, industrial and public utility applications worldwide. The Trina Solar team firmly believes in the benefits of solar power and is committed to improve competitiveness and developing the PV industry in a sustainable way.
