UpSolar UP-M245P Solar Panels

Availability: Call For Availability

Quick Overview

PowerGuard Warranty Summary


Upsolar’s PowerClip warranty policy protects against design defects, delaminating modules, power output falling outside the established degradation curve and coverage begins immediately.


The Program is available for purchase on all modules sold by Upsolar Group Co., Ltd. and subsidiary companies. The funding of valid claims filed by end-customers pursuant to Upsolar’s module warranty is guaranteed on all modules covered by the PowerClip warranty policy.


The Program delivers non-cancellable, irrevocable coverage and is fully-paid for, meaning valid claims will be paid out regardless of the solvency of Upsolar over the full 25-year term, by A.M. Best rated "A" (Excellent) or better internation- ally recognized insurance providers.

Features

  • 15.1% MODULE EFFICIENCY.
  • 10 YEAR PRODUCT GUARANTEE.
  • UP TO 245 WATT OUTPUT
  • Up TO 8.06 A MAX CURRENT

UpSolar UP-M245P Solar Panels

Double click on above image to view full picture

Zoom Out
Zoom In

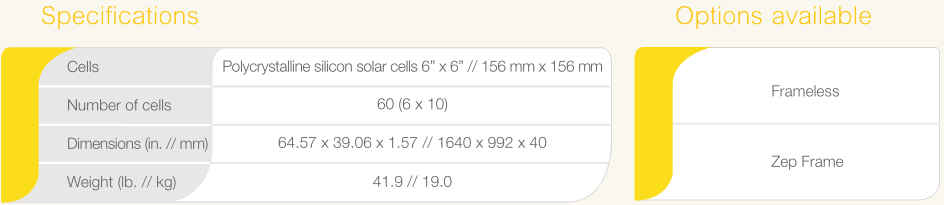

Specifications

Model Number UP-M245P
STC Rating 245.0
PTC Rating 217.7
Open Circuit Voltage (V) 37.8
Short Circuit Current (A) 8.45
Frame Color Silver
Origin China
Weight (lbs) 41.9
Length (in) 64.57
Width (in) 39.06
Height (in) 1.57

Manufacturer Specification Sheets

View FileUpSolar UP-M245P Data Sheet    Size: (900.25 KB)

Details

REC solar panel

REC solar panel

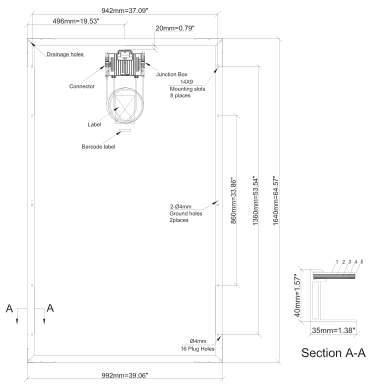

Dimensions:

REC solar panel
REC solar panel
