Yingli YL245P-29b Solar Panels

Availability: Call For Availability

Features

Product Features:

  • High efficiency, polycrystalline solar cells
  • High transmission and textured glass
  • Module series efficiency of up to 16.5% in monocrystalline cells
  • Module series efficiency of up to 15.4% in Multicrystalline cells
  • Power tolerance of +/-3%
  • Robust, corrosion resistant aluminium frame
  • 25 year limited power warranty
  • High quality YGE Series modules
  • NEW! YGE-U Series Module is UL Certified to 1000V

Yingli YL245P-29b Solar Panels

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Specifications

Model Number YL245P-29b
STC Rating 245.0
PTC Rating 221.6
Open Circuit Voltage (V) 37.0
Short Circuit Current (A) 8.40
Frame Color Silver
Origin China
Power % ± -3/3
(W/ft²) 13.35
Area (ft²) 73.2
Weight (lbs) 43.7
Length (in) 64.96
Width (in) 38.98
Height (in) 1.57

Manufacturer Specification Sheets

View FileYL245P-29b Data Sheet    Size: (663.64 KB)

Details

Product Highlights:

Yingli YL245P-29b Solar Module

High efficiency, polycrystalline solar cells with high transmission and textured glass delivering a module series efficiency of up to 14.4%, minimizing installation costs and maximizing the kWh output of your system per unit area. Power tolerance of +/-3% minimizing PV system mismatch losses.

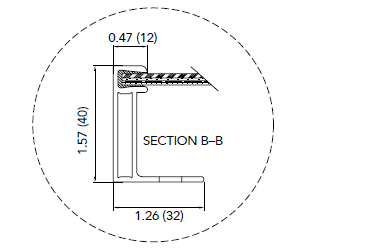

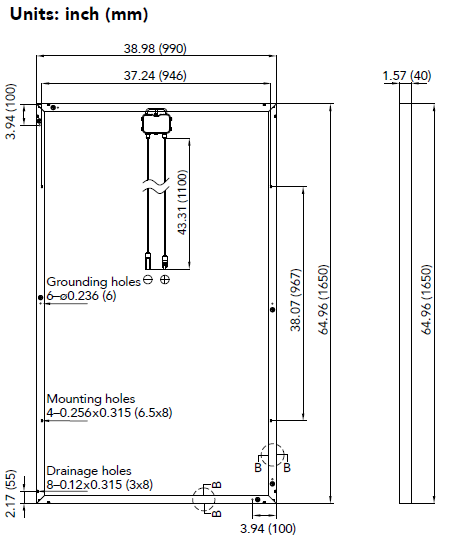

Yingli YL245P-29b Specifications Yingli YL245P-29b Dimensions Yingli YL245P-29b Dimensions
