Sunny Boy SB 3000HF-US Inverter

Availability: Call For Availability

Features

Sunny Boy SB 3000HF-US Features Review:
  • Provides 3000W AC Maximum Output Power
  • Slim enclosure mounts in between wall studs
  • Integrated load-break rated lockable DC disconnect switch
  • Indoor and Outdoor rated
  • Reduced weight
  • Field-configurable for positive ground systems
  • OptiCool active temperature management
  • Modern graphic display
  • Bluetooth communication system
  • Sunny Boy known for PV inverter performance and reliabilty
  • 10 year standard warranty

SMA Sunny Boy SB 3000HF-US Inverter

Double click on above image to view full picture

Zoom Out
Zoom In

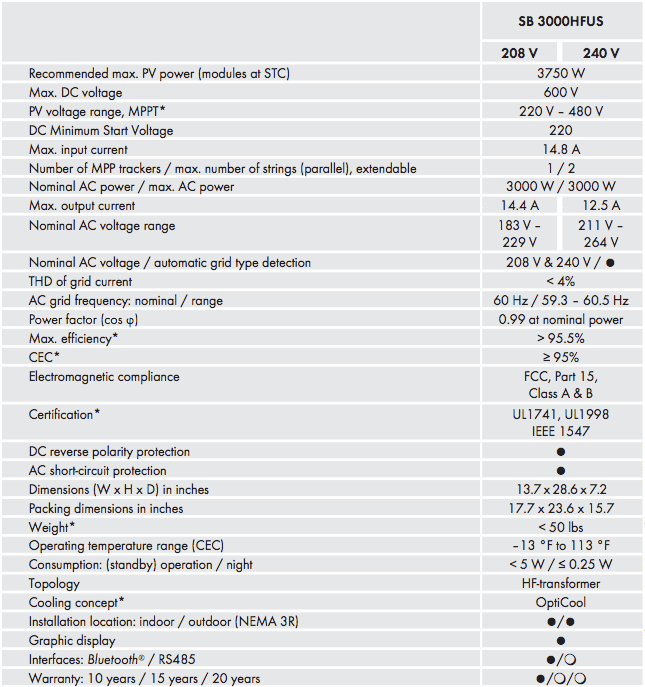

Specifications

Model Number SB3000HFUS
AC Nominal Power (W) 3000.0
Peak Efficiency 0.955
CEC Weighted Efficiency 0.955
Weight (lbs) 50.0
Height (in) 28.6
Width (in) 13.7
Depth (in) 7.2

Manufacturer Specification Sheets

View FileSunny Boy HF-US Data Sheet    Size: (64.68 KB)
