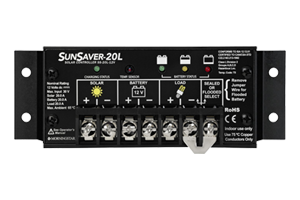

The Morningstar SunSaver Charge Controller offers many of the advantages of the ProStar for
smaller systems, at a reduced cost. Constant voltage PWM charging is a proven advancement
compared to the common on/off PV regulators. SunSavers are field-selectable for sealed or
flooded batteries. A rugged anodized aluminum case and epoxy-encapsulated electronics ensure
durability and longevity. A temperature compensation sensor in the charge control varies
full charge voltage with temperature. They have LED charging and load control LVD (low
voltage disconnect) indicators in LVD models.
Class 1 Division 2 Certified
Morningstar SunSaver charge controllers are Classified Class 1 Division 2 Group A-D Hazardous
(C1 D2 - Class 1 Div. 2). These are certified for systems that are properly wired per
Division 2 NEC approved wiring methods.

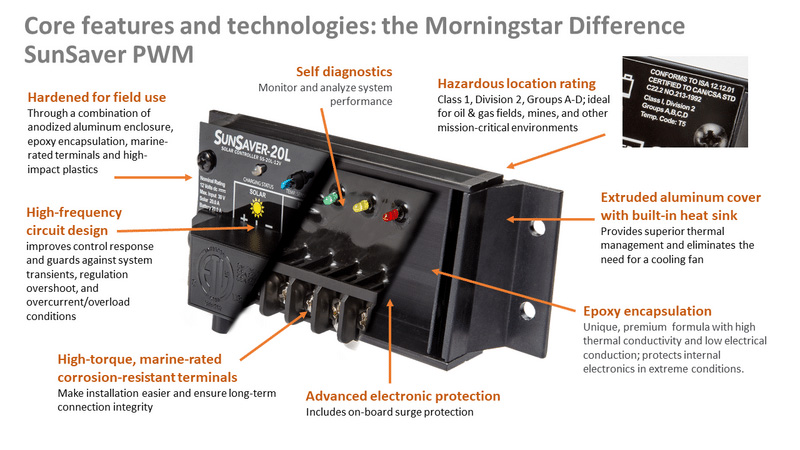

Extremely High Reliability
Full, continuous current ratings at 60° ambient temperatures.
Advanced lightning and transient overvoltage protection.
Reverse polarity protection.
High quality surface-mount components.
Series switching design for improved safety and protection.
Outstanding PWM Battery Charge Control
Confirmed increase in battery capacities and operating life.
PWM Pulse charging for highest charge acceptance.
Standard temperature compensation.
Standard Sealed / Flooded battery select at the terminal.
Accuracy to millivolt levels.
Manufactured for Highest Quality
SunSaver controllers are manufactured in a world class ISO certified facility. Morningstar
uses automated production processes so every unit is exactly the same with parts soldered to
.0006 inch accuracy. Anodized case, marine terminals and custom potting material is used for
a controller that is built to last through everyday real world PV applications
SunSaver Gen 3
Full Electronic Protections
4 Stage Battery Charging
Self-Diagnostic to detect critical Faults
Multi-Color Status LED
3 LED Battery Charge Level
Dead Battery Recovery
Telecom mode for sensitive loads
15V max charge limit for sensitive loads
New UL 1741 and CSA C22.2 No. 107.1-01 certification
Legacy SunSaver Design
Same Size Controller
Same Amp and Voltage Ratings
Same Mounting Plates
Same Easy Battery Selection
Same Rugged Terminals
Same Hazardous Location Rating
Same Competitive Price!
SAll of Morningstar’s SunSaver charge controllers are warranted to be free from defects in
material and workmanship for a period of FIVE (5) years from the date of shipment to the
original end user. Morningstar will, at its option, repair or replace any such defective
ETL Listed to UL 1741 & CSA C22.2 No. 107.1-01
Class 1, Division 2, Groups A,B,C,D, CSA C22.2#213
Immunity, emissions, safety
FCC Class B Part 15
Class 1 Division 2 Solar Systems
The SunSaver Gen 3 features 4-stage PWM battery charging for optimum
The SunSaver Gen 3 features a a multi-color status LED as well as 3
Battery LED’s. Together these can indicate up to 13 possible error conditions..
SunSaver Class 1 Division 2 solar system enclosure with relay load
Morningstar Sunsaver charge controllers available with our complete systems.
