Stryten E-Series Absolyte AGP Industrial Sealed Batteries

Full line of Absolyte® AGP E-Series battery cells, racks and components at low wholesale prices.

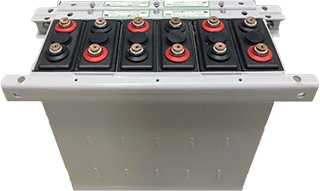

Stryten E-Series Absolyte

The Absolyte® AGP sealed battery is an industrial-grade, high-capacity, maintenance-free solution engineered for longevity and cycling.

The Absolyte® AGP E-Series battery highlights a valve-regulated lead-acid (VRLA) construction. It is designed to eliminate the need for water additions throughout the battery's lifespan. The VRLA design of the Absolyte® AGP E-Series is intrinsically more secure than traditional flooded lead-acid batteries, significantly reducing hydrogen gas emission and virtually eradicating acid misting and leakage. Research indicates that 99% or greater of the gases generated within each Absolyte® AGP E-Series battery are recombined within the cell under standard operational conditions.

Stryten Energy Absolyte Batteries come with Seismic Zone 4 Racking and protective covers, making them perfect for large-scale off-grid or solar grid-tie battery backup applications. Their protective steel tray enclosures ensure the utmost adaptability in installation. The Absolyte® AGP E-Series is certified for horizontal stacking up to eight units for 1997 UBC/2001 CBC Seismic Zone IV applications (at or below ground level), offering a high-density energy solution with a modest footprint, thereby optimizing space for other equipment. These batteries are sealed and therefore negate the need for a dedicated battery room.

We Supply the Latest Absolyte® AGP E-Series batteries.

The E-Series is the direct successor to the Absolyte II series. Absolyte® AGP E-Series batteries comply with international standards including IEC 896, BS 6290, are UL Recognized, ISO 9001:2000 certified, and are designed to meet Telcordia SR4228 and GR-63-CORE (NEBS) specifications.

Absolyte battery rack

Absolyte® AGP E-Series batteries are ideal for power storage systems.

Application Ready

  • Telecommunications
  • Power storage
  • Uninterruptible power systems
  • Switchgear and control
  • Railroad signal and communication
  • Photovoltaics
  • Marine
  • Alternative energy systems
outdoor power storage system
Stryten Energy Absolyte AGP logo

Solar Electric Supply Inc. is an
Stryten Absolyte® AGP E-Series Authorized Distributor.

GNB Absolyte GP batteries are now Stryten Absolyte AGP
Specifications/models have not changed

Contact us toll-free: (877) 297-0014

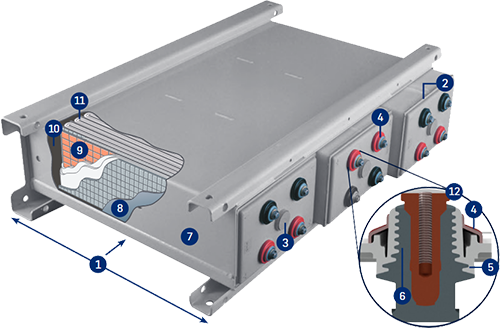

Stryten Absolyte AGP battery diagram Stryten Absolyte AGP battery diagram

DESIGNED FOR MAXIMUM RELIABILITY

  1. High capacity in a small footprint - Frees up valuable floor space for other equipment
  2. Jar to cover heat seal - Jar and cover are heat sealed and bead smoothed for a more reliable seal
  3. Safety vent - 3.5 - 9 psi opening pressure. Self-resealing
  4. Color-coded terminal polarity - Provides easy terminal identification
  5. Heat sealed post seal - Non-corrosive polypropylene-to-polypropylene bond is as strong as the original material
  6. Interface between lead post and plastic sleeve - Coated with a viscous agent which ensures a virtually leak-free bond
  7. Modular steel tray - Easy to install
  8. Container and Cover - Flame retardant UL94 V-0/28% L.O.I. polypropylene is standard; non-flame retardant is optional
  9. Positive plate grid alloy - Ideal for both float and cycling applications
  10. High separator compression - Reduces possibility of loss of capacity and degradation of the plate-to-separator contact
  11. Space for positive plate growth - Space is provided so growth can occur away from post and cover
  12. Post Access optimized - for ease of maintenance and assessment of battery health

Battery Cell Specifications

140-6300 AH @ 100 Hour Rate

  • Container and Cover: Polypropylene
  • Flame Retardant: UL94 V-0/28% L.O.I. is optional.
  • Separators: Spun glass, microporous matrix
  • Safety Vent: 3-10 psi opening pressure, self-resealing
  • Terminals: Solid copper insert
  • Positive Plate: Patented Lead-Calcium-Tin-Silver grid alloy.
  • Negative Plate: Lead-Calcium grid alloy.
  • Operating Temperature: Temperature excursions between -40°C (-40°F) to +50°C (122°F) allowed (battery performance and life will be affected).
  • Cycle Life: 1200 cycles at 80% D.O.D. (Depth Of Discharge) [at 25°C (77°F)] when operated per the I&O Manual.
  • Self Discharge: 0.5 to 1.0% per week maximum at 25°C (77°F).
  • Charge Controller: Upper Voltage Settings at 25°C (77°F) with a maximum charge current of 5% of nominal C/100 Amp-hour rating.
    • 2.28 ± 0.02 V.P.C. @ 0-2% D.O.D.
    • 2.33 ± 0.02 V.P.C. @ 3-5% D.O.D.
    • 2.38 ± 0.02 V.P.C. @ >5% D.O.D.

Charge currents at other temperatures? Contact our Stryten E-Series Absolyte experts.

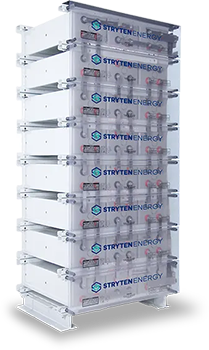

large power storage system Complete
Commercial / Industrial
Power Storage Systems
Contact Us

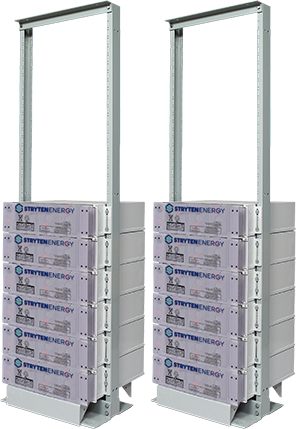

Stryten horizontal rack
Horizontal Stack Assembly w/
Relay Rack Modules

Absolyte battery power storage systems available.
Contact Us

Stackable Module Weights and Dimensions

E-Series Absolyte® AGP - Stryten Energy

GNB Part #

Volts

Capacity (Ahr)
100- hr rate

Length (in.)

Width (in.)

Height (in.)

Weight (lbs.)

Model Type: 50G | 6-Cell 12-Volt Stackable Module Batteries
contact us
6-50G05 12 140 17.19 8.53 16.22 157
6-50G07 12 210 21.69 8.53 16.22 209
6-50G09 12 290 26.19 8.53 16.22 252
6-50G13 12 430 35.19 8.53 16.22 356

Model Type: 90G | 6-cell 12-volt Stackable Module Batteries
contact us
6-90G07 12 360 21.69 8.53 23.56 316
6-90G09 12 480 26.19 8.53 23.56 396
6-90G11 12 600 30.69 8.53 23.56 477
6-90G13 12 720 35.19 8.53 23.56 557
6-90G15 12 840 39.69 8.59 23.56 637

Model Type: 3-cell 6-volt Stackable Module Batteries
contact us
3-100G13 6 790 19.93 8.53 26.38 328
3-100G15 6 920 22.18 8.59 26.38 374
3-100G17 6 1000 24.50 8.59 26.38 424
3-100G19 6 1,200 26.75 8.59 26.38 470
3-100G21 6 1,330 29.00 8.59 26.38 515
3-100G23 6 1,400 31.25 8.59 26.38 561
3-100G25 6 1,500 33.50 8.59 26.38 608
3-100G27 6 1,730 35.75 8.59 26.38 653
3-100G29 6 1,860 38.00 8.59 26.38 704
3-100G31 6 1,995 40.25 8.59 26.38 750
3-100G33 6 2,130 42.50 8.59 26.38 795

Model Type: 2-volt Cells

contact us
1-100G39 2 2,370 19.93 8.59 26.38 328
1-100G45 2 2,860 22.18 8.59 26.38 374
1-100G51 2 3,00 24.50 8.59 26.38 424
1-100G57 2 3,300 26.75 8.59 26.38 470
1-100G63 2 3,900 29.00 8.59 26.38 515
1-100G69 2 4,200 31.25 8.59 26.38 561
1-100G75 2 4,500 33.50 8.59 26.38 608
1-100G81 2 5,100 35.75 8.59 26.38 653
1-100G87 2 5,400 38.00 8.59 26.38 704
1-100G93 2 5,700 40.25 8.59 26.38 750
1-100G99 2 6,300 42.50 8.59 26.38 795
Stryen Energy

About Stryten Energy

Stryten Energy addresses critical global energy needs by offering a diverse array of storage solutions and components for key sectors, including Essential Power, Motive Power, Transportation, as well as Military and Government operations. Based in Alpharetta, Georgia, Stryten's collaborations with globally renowned firms aim to fulfill the escalating need for dependable and eco-friendly energy storage systems. Stryten provides power to a vast range of applications from submarines to compact vehicles, microgrids, warehouses, distribution hubs, and various modes of transport.

At Solar Electric Supply, we take immense pride in our partnership with Strytens Energy as authorized distributors of their state-of-the-art energy solutions. Check out the video learn more about Strytens recent aquistion of GNB Industrial.

Contact Us today for expert advice and the lowest wholesale prices on all of the latest Stryten Energy products.

Stryten E-Series Absolyte AGP Absolyte AGP

Solar Electric Supply Inc. is an Stryten E-Series Absolyte AGP Authorized Distributor.

Contact Us by email or Call Toll Free (877) 297-0014
for expert assistance & Stryten Absolyte battery wholesale prices.
