N-Peak solar panels
NP N-Peak C-Si mono solar cell
THE MOST EFFICIENT C-Si TECHNOLOGY
No LID
NO LIGHT INDUCED DEGRADATION
strong solar module frame
SUPER-STRONG FRAME UP TO 7000 PA SNOW LOAD
flexible solar panel options
FLEXIBLE INSTALLATION OPTIONS
shaded PV module performance
IMPROVED OUTPUT IN SHADED CONDITIONS
guaranteed high solar power
GUARANTEED HIGH POWER OVER LIFETIME

N-Peak PERT solar cell

Cross-section of an REC N-Peak cell showing negatively charged bulk and PERT layer

N-Peak NP solar panel rear review

Rear view of the REC N-Peak solar panel with support bars and split junction box

N-Peak mono solar cell

An REC N-Peak n-type mono half-cut cell, showing 5 bus bars and the darker, uniform aesthetic of a mono cell, with its distinctive rounded corners

REC N-Peak solar panel warranty

N-Peak solar panels feature a 12 year product warranty with 86% of power rating warranted after 25 years

SPECIFICATIONS & PRODUCT INFORMATION

View FileREC N-Peak Solar Panel Series Datasheet

View FileREC N-Peak Solar Panel Series Factsheet

View FileREC N-Peak Technology Whitepaper

REC N-Peak Solar Panels

The REC N-Peak Series is ideal for residential and smaller commercial and industrial rooftops where as much power as possible needs to be packed in to a limited space and where higher power levels need to be achieved with fewer modules. REC N-Peak solar panels boost efficiency through n-type monocrystalline C-Si cells, PERT, Zero-LID and ‘Twin’ cell technologies.

Features

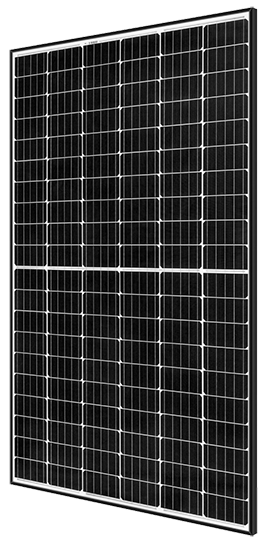

Premium N-Peak solar panels are n-type mono PV modules using REC’s proven half-cut cell technology. What does this mean? High efficiency, high power, and high quality.

REC’S MOST POWERFUL SOLAR PANEL EVER!

With up to 330 Wp in a 60-cell panel, the REC N-Peak Series uses the most efficient cell technology in the industry, capturing more sunlight thereby providing more power. The panel features the innovative REC ‘Twin’ cell layout design, where the panel is split into two twin sections, also enabling continued energy production, even when partially shaded.

N-TYPE MONO CELLS

Based on high efficiency monocrystalline cell technology, the REC N-Peak boosts panel efficiency through n-type and PERT technologies:

• With n-type cell technology, the internal construction of a cell reduces Light Induced Degradation (LID) to zero, meaning no power loss right after installation
• PERT technology completely passivates the rear of the cell for increased electron capture and high and stabilized efficiency
• Class-leading temperature performance keeps panels cooler for increased efficiency and higher yields
• All round higher yields at higher wavelengths, with strong performance from dawn through to dusk

Combining n-type and PERT technology in REC N-Peak solar panels has created a high efficiency and powerful module that can help you make the most of every installation, especially where space is limited.

ZERO LID

The loss of power generation capacity experienced by a standard solar panel on its first exposure to light is known as Light Induced Degradation (LID). This is a result of the combination of boron and oxygen inside a cell and causes a permanent drop in a standard panel’s maximum power. Not with N-Peak solar panels!

The n-type technology in REC’s N-Peak cells stops these two elements from mixing at any level, thereby fully preventing any occurrence of LID. Thus, the panel’s power remains the same as when it left the REC factory – meaning you always get exactly the power levels that you paid for.

HALF-CUT CELL TECHNOLOGY

The unique REC ‘Twin’ cell layout design, where the panel is split into two identical and mirrored sections, enables the continued production of energy, even when part of the module or array is shaded, further contributing to its high energy yields compared to standard panels.

SUPER-STRONG FRAME DESIGN

REC N-Peak solar panels feature extra support bars across the rear of the panel, greatly boosting its strength and durability, and allowing loads of up to 7000 Pa – far exceeding the 5400 offered by conventional panels. This added strength enables you to achieve much higher energy yields. Combined with a 30 mm frame height, this frame design enables flexible installation options, making overcoming every obstacle easier during system design.

N-Peak Variants

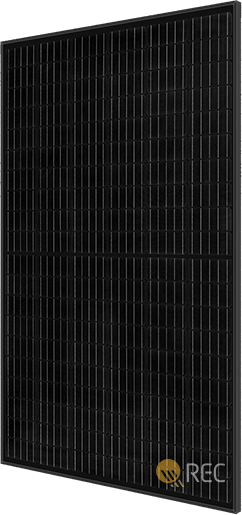

REC N-Peak solar panels come standard with black-colored half-cut monocrystalline cells and a black frame to give you the ideal combination of high power and aesthetics in power levels from 310-330 Wp.

Warranty

All of the advantages of the REC N-Peak Series combine to guarantee customers high power output over its warranted lifetime. The REC N-Peak series comes with REC’s best warranty:

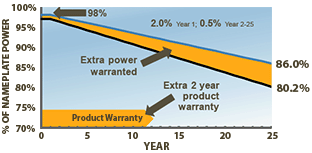

25 YEAR LINEAR POWER OUTPUT WARRANTY WITH 0.5% WARRANTED ANNUAL DEGRADATION

Ensures that your REC solar panels perform exactly as they’re expected to – every year for 25 years. With 0.5% warranted annual degradation, your REC N-Peak solar panel will still produce at least 86% of its nameplate power in its 25th year of operation – the highest of any REC panel.

12 YEAR PRODUCT WARRANTY

Promises that the workmanship and materials of the panels themselves maintain their superior quality for 12 years.

Contact us at (877) 297-0014 for more information concerning
REC N-Peak solar panels.
