Enphase IQ Battery 3T specification sheet
Model Number ENCHARGE-3T-1P-NA IQ Battery 3T
Includes One IQ Battery 3T base unit (B03-T01-US00-1-3) and One IQ Battery 3T cover kit with cover and wall mounting bracket (B03T-C-0430-O)
Rated (continuous) output power 1.28 kVA
Peak output power 1.92 kVA (10 seconds)
Nominal voltage/Range 240/211—264 VAC
Nominal frequency/Range 60/57—63 Hz
Rated output current 5.3 A
Total capacity 3.5 kWh
Usable capacity 3.36 kWh
Dimensions (W × H × D) 430 mm × 775 mm × 188 mm (16.9" × 30.5" × 7.4")
Weight One individual 40.5 kg (89.3 lbs) base unit plus 8.3 kg (18.3 lbs) cover and mounting bracket; total 48.8 kg (107.6 lbs)

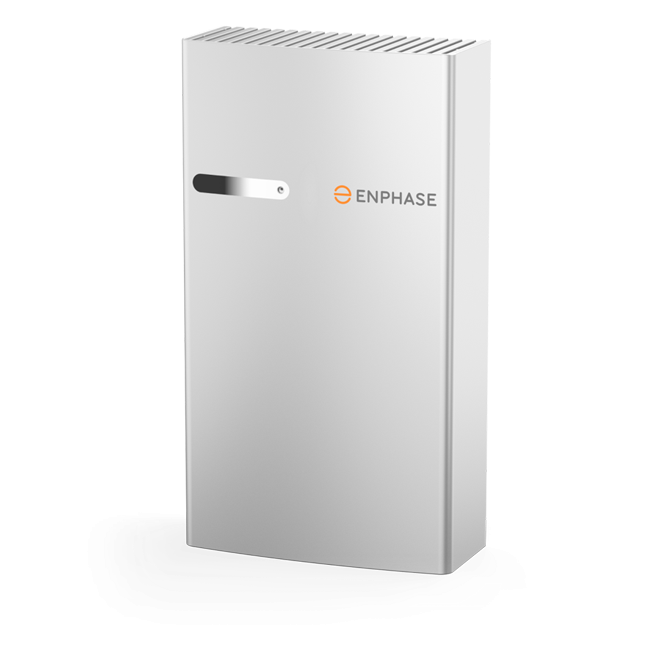

Enphase IQ Battery 3T


The Enphase IQ Battery 3T

Meet the Enphase IQ Battery 3T, your all-in-one AC-coupled storage solution that's reliable, smart, simple, and safe. With a total usable energy capacity of 3.36 kWh, it's equipped to power your needs efficiently. The system boasts four embedded grid-forming microinverters, each with a power rating of 1.28 kW, ensuring consistent energy output. Whether you're setting up a new solar system or updating an old one, the IQ Battery 3T is designed to fit right in. Installers will find it easy to pick the perfect size for any home.

From its fully integrated AC battery system and embedded IQ8X-BAT Microinverters to its grid-forming capability for seamless backup operation, every aspect is crafted to perfection. And with the added convenience of remote software upgrades and intuitive monitoring via the Enphase App, users are always in control.

Part of the
Enphase IQ Energy Management System

IQ Battery 3T Features


  • Proven high-reliability IQ Series Microinverters
  • 15-year limited warranty
  • Four embedded IQ8X-BAT microinverters
  • Passive cooling (no moving parts/fans)
  • UL listed
  • Compliant with CA Rule 21 (UL 1741-SA) and IEEE 1547:2018 (UL 1741-SB, 3rd Ed.)


  • Fully integrated AC battery system
  • Quick and easy plug-and-play installation
  • Interconnects with standard household AC wiring


  • Grid-forming capability for backup operation
  • Remote software and firmware upgrade
  • Mobile app-based monitoring and control
  • Support for self-consumption
  • Optimized for utility time of use (TOU)


  • Safety tested battery cells and module
  • Uses Lithium iron phosphate (LFP) for utmost safety and long life

Enphase IQ Battery 3T Compatibility

  • Enphase Energy System 1.0/2.0
  • IQ Battery 3/3T/10/3T
  • IQ Microinverters
  • IQ System Controller 1/2
  • Communication Kit
  • IQ Combiner 3-ES/3C-ES/4/4C
  • M Series Microinverters

What's Included in the Box?

  • 1 IQ Battery 3T base units (B03-T01-US00-1-3)
  • One IQ Battery 3T cover kit with:
    • One IQ Battery 3T cover kit with cove
    • Wall mounting bracket
    • Interconnect cable for wiring between batteries (B3T-C-1290-O)
Solar Electric Supply Logo

For quotes and order inquiries, please provide your model, desired quantity, and zip code.

Email us at or toll free at (877) 297-0014.

Enphase IQ System Controller 3G Review

Enphase IQ Battery 3t logo

The Enphase IQ Battery 3T is an economical choice, especially designed for the NEM 3 California system. With kits available in both one and three batteries, it provides storage capacities of 3.3 and 10 kWhr respectively. Each 3T battery delivers a peak AC power of 1.92kW, and when three are combined, they offer a peak of 5.76 kW. While this might not be the best for backup power, it's an efficient solution for those looking to discharge battery power at night and charge with excess PV during the day. Additionally, the 3T system integrates seamlessly with the System Controller 2, which is equipped for genset integration. All of this comes with a dependable 10-year warranty.

Whether you're diving into the world of solar energy for the first time or looking to upgrade your existing setup, the IQ Battery 3T promises not just performance but also peace of mind. With its advanced features, robust compatibility, and the backing of Enphase's trusted reputation, it's an investment in a sustainable future that delivers both value and reliability.

Comparing Enphase Battery Options

We currently supply kits with two distinct enphase battery options. The 3T Battery is an affordable solution ideal for the NEM 3 California system, offering up to 10 kWhr of storage and a 10-year warranty. In contrast, the 5P Battery delivers a powerful performance with a peak AC of up to 15.36 kW, making it perfect for backup power across the US. This robust option is compatible with older Enphase microinverters and boasts a 15-year warranty, ensuring both flexibility and longevity.

Storage Capacity

  • Single 3T Battery: 3.3 kWhr
  • Three 3T Batteries: 10 kWhr

Power Output

  • Single 3T Battery: Peak AC power of 1.92kW
  • Three 3T Batteries: Combined peak of 5.76 kW

Ideal Use: Perfect for NEM 3 systems in California. It's designed for nighttime energy use and daytime solar charging.

Compatibility: Works with the System Controller 2, which supports genset integration.

Warranty: 10 years.

Storage Capacity

  • All-in-one AC-coupled system
  • Total usable energy capacity of 5.0 kWh

Power Output

  • Single 5P Battery: Peak AC of 7.68 kW
  • Two 5P Batteries: Combined peak of 15.36 kW

Ideal Use: Great for backup power across the US and NEM 3 systems in California.

Compatibility: Syncs with older IQ6, IQ7, and M series microinverters.

Warranty: Extended coverage of 15 years.

Learn More About The Enphase IQ Energy System!

Enphase Logo

Founded in 2006, Enphase has been at the forefront of solar innovation with its pioneering microinverter technology, converting sunlight into a dependable and scalable energy source. Their intelligent microinverters, compatible with almost every solar panel, when combined with their award-winning battery technology, form one of the industry's top-tier clean energy systems. The Enphase Energy System empowers individuals to produce, utilize, conserve, and even sell their own power, supported by an industry-leading app that offers unparalleled data and control.

A testament to their impact, Enphase homes can be spotted globally, with around 68 million microinverters shipped and 3.5 million systems spread across over 145 countries. At its core, Enphase is about harnessing solar energy to replace fossil fuels, envisioning a carbon-free future powered by people.
