Featuring Class 1 Division 2 Solar Panels & NEMA Enclosures
Remote solar power applications using Class 1 Division 2 solar panels and

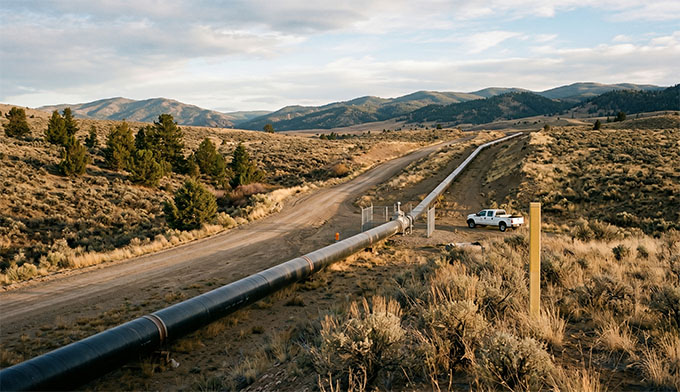

Gas Well Head Monitoring, Pipeline Monitoring, SCADA RTU, Offshore Platforms, Hazardous Lighting, Tank

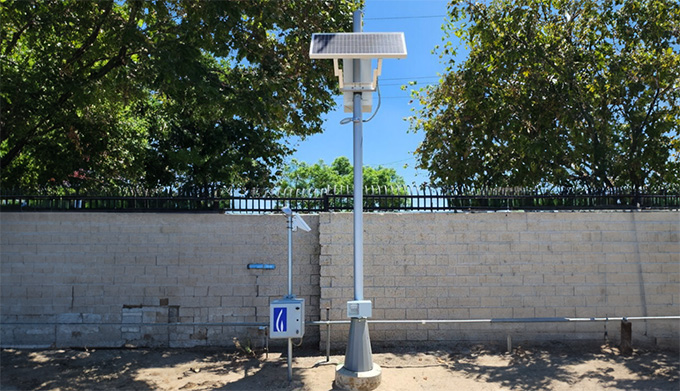

Gauge, Tank Farm, Flare Stack Ignition Systems, Gas Detection, Wireless Data Security Systems, Remote

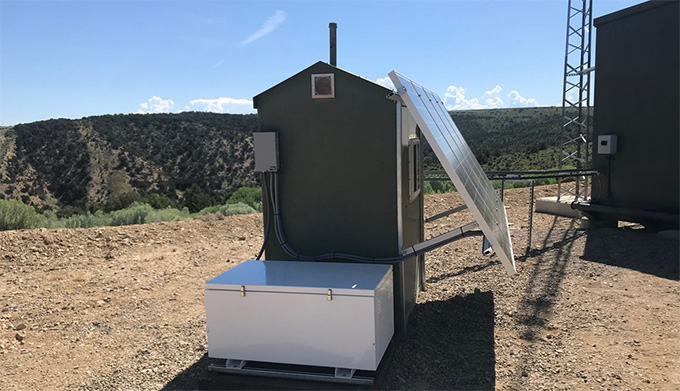

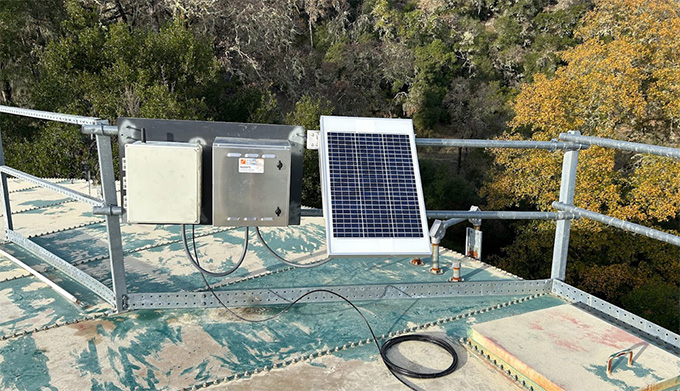

Monitoring, Cathodic Protection and Flow Monitoring.
Class 1 Div 2 Series for Hazardous Locations Group C & D Features and Review
Conforms to: ISA STD 12.12.01 & UL STD 508A

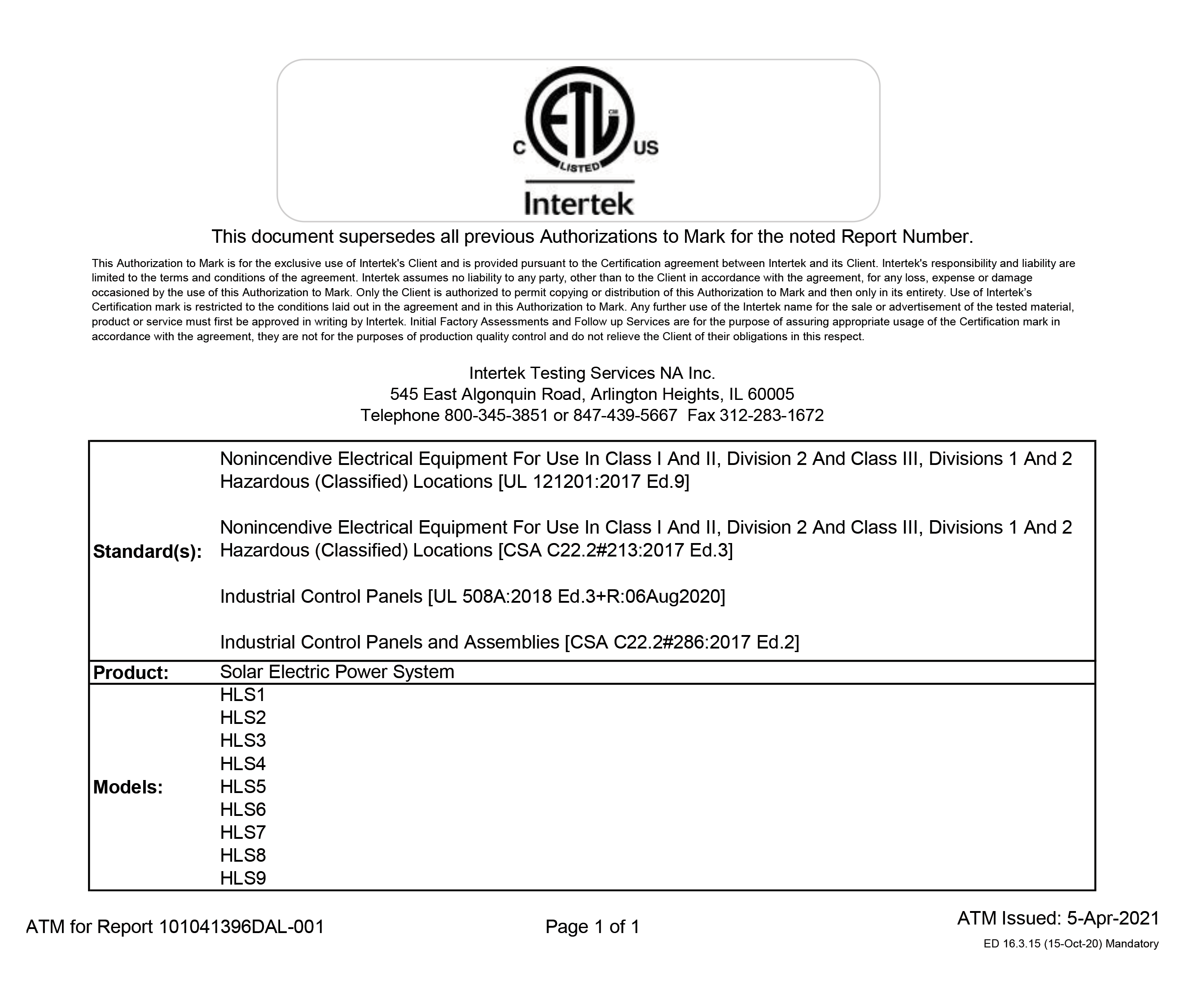

Intertek Certified to: CSA STD C22.2 Nos. 213 & 14 Class 1 Division 2 Hazardous Locations

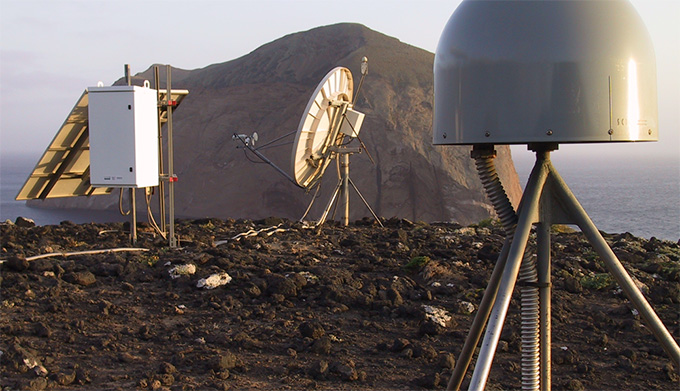

Wireless VSAT communication

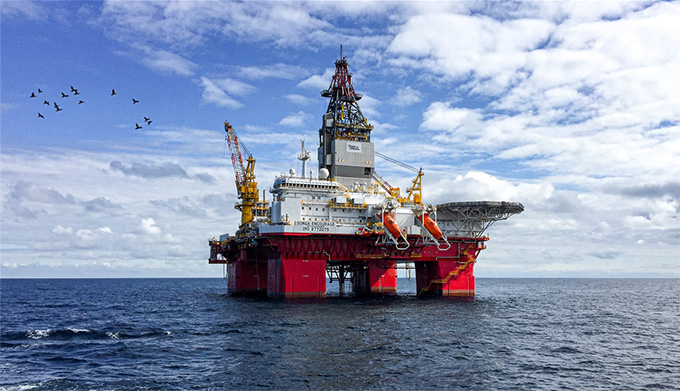

Offshore drilling platform

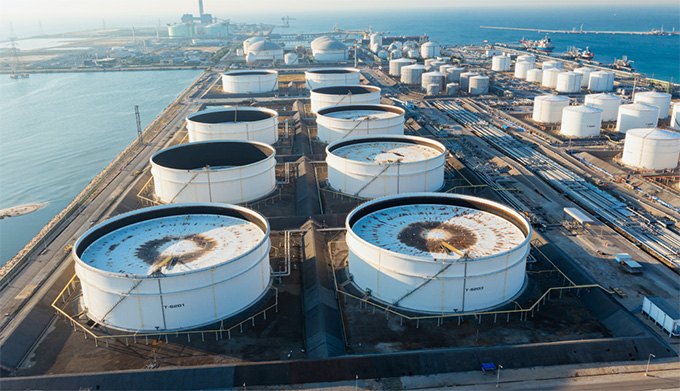

Tank farm monitoring
Oil or gas wellhead
What does a Class I Div 2 certified system mean to you?
It means that the world's most trusted name in testing, Intertek, has independently certified these
systems as safe for use in the highest level of hazardous locations like potentially explosive where
there is the possible presence of flammable gases, vapors or liquids. This system line is the first
solar power system in the world to meet Intertek's most rigorous hazardous location safety standard.
Using these systems insures - no matter what your location or application - that you can safely and
reliably generate electricity to power your equipment anywhere the sun shines, even under the most
hazardous conditions. These systems are the finest complete stand-alone solar electric systems designed
for industrial, oil gas & mining and telecom applications that can be approved for Class I, DIV. 2
hazardous locations. This important feature allows a complete Class I Div II solar system to be placed
directly adjacent to the pipeline or wellhead, saving installation time and materials.
Contact us toll-free at 877-297-0014 for a free
sizing and quotation for your project.
MAPPS Remote Area Photovoltaic Systems for Class 1 Div 2 Hazardous
SES has the experience you need for your project.
For two decades, the Solar Electric Supply team has been providing solar energy solutions to customers
just like you, and using our talent and experience to provide a quality solution. We offer a full range
of services – from a broad array of products to engineering and design/build capabilities. Our full
document control ensures access to your diagrams and records, and our QA/QC procedures ensure a quality
system is delivered.
Solar Electric Supply Provides
Well recognized, High-quality Products
Speed of Delivery
Engineered to NEC, IEEE, and Industry Standards
Most Class 1 Div 2 solar systems and components are stocked for quick delivery.
Enclosures are factory assembled with control panels pre-wired and tested for easy and quick
field deployment. (Batteries may be field installable.)

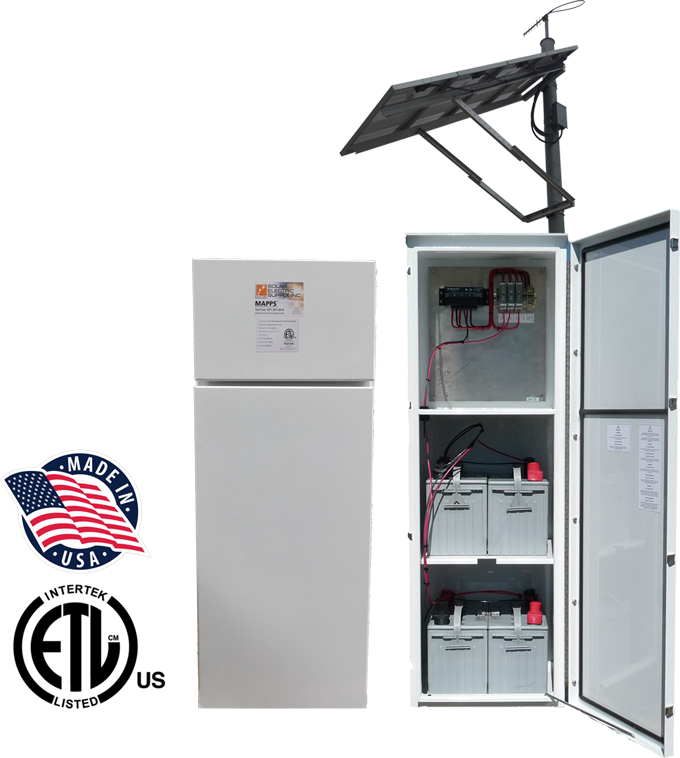

Typical Class 1 Div 2 System
Offshore oil platforms
Typical Products Powered by MAPPS
Industrial Video & Control
Only the best Class I Division 2 rated components are used in our MAPPS™
High efficiency UL Listed, Class 1 Div 2 solar panels with 20+ year warranty
Heavy-duty aluminum pole mounting structure with stainless steel hardware
Solar array Class I Div 2 approved conduit wiring harness kit
NEMA 3R durable powder-coated white aluminum battery control and component enclosure, lockable,
includes sticker on inside door with specific Class 1 Div 2 enclosure certification
Sealed gel cell, maintenance free, deep-cycle, non-spillable batteries, UL Recognized

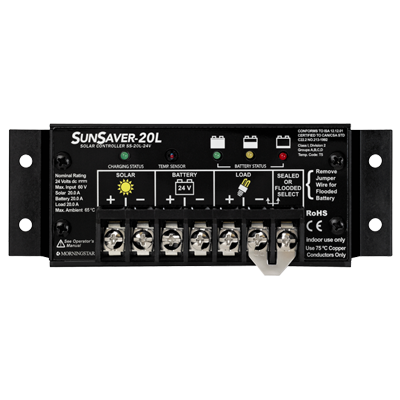

Advanced PWM Charge Control, Class I Div 2, with low voltage load protection and temperature
compensated battery charging
Extra room for your equipment - each system package has roughly 12 cu/in of extra space in the
CSA Approved Class I, Div 2 hazardous location safety rating
There is plenty of room for you to add your own Class 1 Div 2 rated SCADA, radio, GPS,
telemetry, VSAT, Wi-Fi or other electronic equipment.

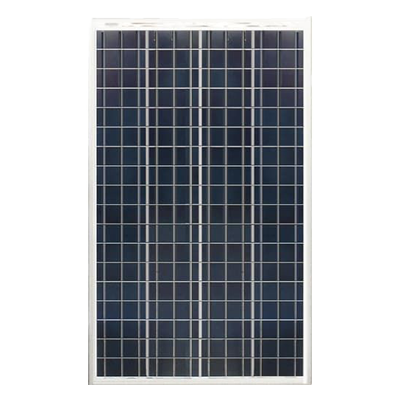

Class 1 Div 2 Solar Panels
C1D2 PV Module Features
Listed to UL1703 3rd Edition & ULC ORD-C1703-01 Standard for Safety by CSA Module Fire
Performance Type 4 (for USA) or Class C fire rating (for Canada)
Approved by CSA according to CAN/CSA C22.2 No. 213-17
ISO 9001 factory certification ensures that our manufacturing facilities use proven
manufacturing and quality control processes.

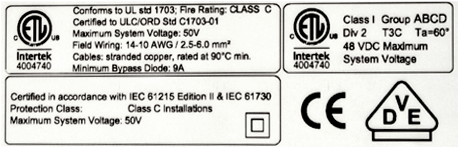

Certified to UL1703 3rd Edition and ULC 1703-01
Certified for UL 12.12.01-Ninth Edition for use in Class I, Division 2, Groups ABCD Hazardous

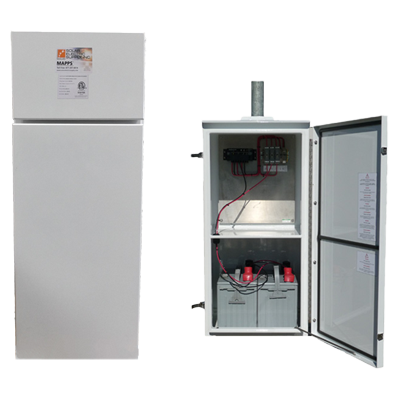

The Best Class 1 Div 2 Enclosures in the Industry!
SES MAPPS Class I Div 2 Enclosure Features
Enclosures are finished with a reflective bright white polyester urethane powder coat for
aesthetics and to minimize internal and external heat gain
Standard enclosures are manufactured with .125” 5052-H32 aluminum. All die marks and welds are
sanded smooth for safety. NEMA 3R UL 508 Certified Enclosures for Class 1 Division 2 hazardous
locations, and UL Listed MAPPS systems
2-4” U Bolts or SS clamping hardware included for with pole mount enclosures for rapid pole
Separate control/load NEMA 4X compartment is weather proof and dustproof featuring a sealed
design with door gaskets
NEMA 3R enclosures are provided with integrated filtered louvers located to promote convective
air flow through the enclosure to reduce internal temperatures and remove gasses. Filters are
located over the louvers to keep out dust and insects. The filters are removable for cleaning or
Stainless steel continuous hinge for doors and lids.
Two punched 1/2” electrical conduit holes for easy solar input and load output liquid tight
