GNB Absolyte
Absolyte

GNB Absolyte Batteries

Full line of Absolyte GP battery cells, racks and components at low wholesale prices.



The Absolyte sealed battery is an industrial quality, high capacity, sealed maintenance-free battery designed for longevity and cycling.

Absolyte battery rack

The Absolyte GP battery features a valve-regulated lead-acid (VRLA) design. It will not require water additions for the life of the battery. The Absolyte GP VRLA design is inherently safer than conventional flooded lead-acid batteries. This design minimizes hydrogen gas release, and virtually eliminates acid misting and acid leakage. Tests have shown that 99% or more of generated gases within each Absolyte battery are recombined within the cell under normal operating conditions.

GNB Absolyte Batteries include Seismic Zone 4 Racking and covers. Ideal for larger off grid or solar grid tie battery backup systems. Protective steel tray housings offer maximum installation flexibility. The GNB Absolyte GP is qualified to stack horizontally up to eight high for use in 1997 UBC/2001 CBC Seismic Zone IV (at or below grade). This provides for high capacity in a small footprint and frees up floor space for other equipment. These batteries are sealed hence they do not require a separate battery room.

We supply the latest Absolyte GP batteries.

The GP series replaces the Absolyte II battery series. Absolyte GP batteries are IEC 896, BS 6290, UL Recognized, ISO 9001:2000, designed to meet Telcordia SR4228 and GR-63-CORE (NEBS).


Absolyte GP batteries are ideal for power storage systems.

outdoor power storage system

Application Ready

· Telecommunications
· Power storage
· Uninterruptible power systems
· Switchgear and control
· Railroad signal and communication
· Photovoltaics
· Marine
· Alternative energy systems


GNB Exide
The largest battery manufacturer in the world.
Absolyte GP

Solar Electric Supply Inc. is an
Exide GNB Absolyte GP Authorized Distributor.

Contact us toll-free: (877) 297-0014

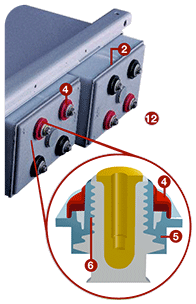

Absolyte GP battery reviewbattery terminal

Designed for Performance

  1. 1. High capacity in a small footprint. Frees up valuable floor space for other equipment.
  2. 2. Jar to cover heat seal. Jar and cover are heat sealed and bead smoothed for a more reliable seal.
  3. 3. Safety vent. 3-10 psi opening pressure. Self-resealing.
  4. 4. Color-coded terminal polarity. Provides easy terminal identification.
  5. 5. Heat sealed post seal. Non-corrosive
    polypropylene-to-polypropylene bond is as strong as the original material.
  6. 6. Interface between lead post and plastic sleeve. Coated with a viscous agent which ensures a virtually leak-free bond.
  7. 7. Modular steel tray. Easy to install.
  8. 8. Container and Cover - Polypropylene is standard. Flame retardant, UL94 V-0/28% L.O.I. is optional.
  9. 9. Patented positive plate grid alloy. Ideal for both float and cycling applications.
  10. 10. Space for positive plate growth. Space is provided so growth can occur away from post and cover seals to increase battery life.
  11. 11. High separator compression. Reduces possibility of loss of capacity and degradation of the plate-to-separator contact.
  12. 12. Post Access optimized for ease of maintenance and assessment of battery health

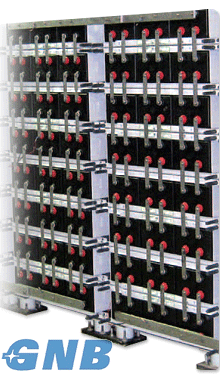

gnb horizontal rack
Horizontal Stack Assembly w/
Relay Rack Modules

Absolyte battery power storage systems available.
Contact Us

large power storage system
Complete
Commercial / Industrial
Power Storage Systems

Contact Us

Battery Cell Specifications

140-6300 AH @ 100 Hour Rate

Charge currents at other temperatures? Contact our GNB Absolyte experts.

Absolyte GP logo

Stackable Module Weights and Dimensions

GNB Part #

Volts

Capacity (Ahr)
100- hr rate

Length (in.)

Width (in.)

Height (in.)

Weight (lbs.)

Model Type: 50G | 6-Cell 12-Volt Stackable Module Batteries

6-50G05 12 140 17.19 8.53 16.22 157
6-50G07 12 210 21.69 8.53 16.22 209
6-50G09 12 290 26.19 8.53 16.22 252
6-50G13 12 430 35.19 8.53 16.22 356

Model Type: 90G | 6-cell 12-volt Stackable Module Batteries

6-90G07 12 360 21.69 8.53 23.56 316
6-90G09 12 480 26.19 8.53 23.56 396
6-90G11 12 600 30.69 8.53 23.56 477
6-90G13 12 720 35.19 8.53 23.56 557
6-90G15 12 840 39.69 8.59 23.56 637

3-cell 6-volt Stackable Module Batteries

3-100G13 6 790 19.93 8.53 26.38 328
3-100G15 6 920 22.18 8.59 26.38 374
3-100G17 6 1000 24.50 8.59 26.38 424
3-100G19 6 1,200 26.75 8.59 26.38 470
3-100G21 6 1,330 29.00 8.59 26.38 515
3-100G23 6 1,400 31.25 8.59 26.38 561
3-100G25 6 1,500 33.50 8.59 26.38 608
3-100G27 6 1,730 35.75 8.59 26.38 653
3-100G29 6 1,860 38.00 8.59 26.38 704
3-100G31 6 1,995 40.25 8.59 26.38 750
3-100G33 6 2,130 42.50 8.59 26.38 795

2-volt Cells

1-100G39 2 2,370 19.93 8.59 26.38 328
1-100G45 2 2,860 22.18 8.59 26.38 374
1-100G51 2 3,00 24.50 8.59 26.38 424
1-100G57 2 3,300 26.75 8.59 26.38 470
1-100G63 2 3,900 29.00 8.59 26.38 515
1-100G69 2 4,200 31.25 8.59 26.38 561
1-100G75 2 4,500 33.50 8.59 26.38 608
1-100G81 2 5,100 35.75 8.59 26.38 653
1-100G87 2 5,400 38.00 8.59 26.38 704
1-100G93 2 5,700 40.25 8.59 26.38 750
1-100G99 2 6,300 42.50 8.59 26.38 795
GNB Absolyte
The largest battery manufacturer in the world.
Absolyte GP

Solar Electric Supply Inc. is an
Exide GNB Absolyte GP Authorized Distributor.

Horizontal Rack

Call toll-free (877) 297-0014 for expert assistance or GNB Absolyte battery wholesale prices.
