Unirac Tile Hook Universal Solar Panel Roof Mount
Unirac Tile Roof Hook
![Unirac](/media/wysiwyg/images/unirac.gif)
Tile Roof Hook Universal Mount

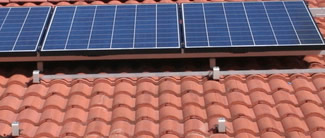

![Tile Roof Hook Universal Mount](/media/wysiwyg/images/tileroofhook1.jpg)

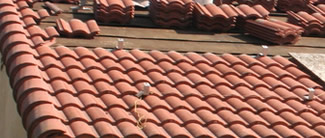

![Tile Roof Hook with Spanish Tile](/media/wysiwyg/images/tileroofhook2.jpg)
Solar Electric Supply provides the Unirac Tile Roof Hook Universal Mount. A more elegant solution than hanger bolts or standoffs. Various roof hook styles have been developed for different tile roofing types.
![front & top mount](/media/wysiwyg/images/tileroofhooks.jpg)
Tile Hook Components:
- 1 Tile Hook
- 2 Lag Screws
- 2 Washers
- 1 Stainless Steel Bolt
- 1 Nut
Compared to hanger bolts:
- Drilling tile is not required.
- Tiles are not subject to cracking and failure over time due to normal flexure of hanging bolt.
- Easier to install, do not require cutting tile or flashing in most instances
- Superior aesthetics
![Roof Tile Hook Top Mount](/media/wysiwyg/images/uniracroofhooklg.png)
Features:
- Works on many different tiles/applications due to adjustability afforded by width of base plate
- Double roman tile, Spanish tile, other similar tiles
- Does not require flashing or cutting of tile in many applications
- Easy to install
Installation:
- Remove tile at desired installation point
- Place tile roof hook in desired position (here hitting the valley with the hook)
- Sink three supplied screws into rafter
- Replace overlying tile
