ProSolar GroundTrac Solar Panel Mounting System
High-strength, easy to install ground mount for home and commercial solar panel systems.
Designed with graded or flat ground mount solar panel systems in mind, ProSolar GroundTrac® is The Original "Top-Down" PV Mounting System for Ground Applications. Ground Trac integrates with the self-bonding, patented RoofTrac mounting system and is a trusted choice for ground-mounted residential and small to medium-scale commercial solar panel systems.
ProSolar GroundTrac is the solar industry’s preferred low cost and easy to install ground mount system
- Over 20 years of ProSolar’s proven design
- Aluminum and stainless steel components for corrosion, resistance and strength
- 1-1/2" Schedule #40 galvanized water pipe design is low cost and readily available
- Integrates with the self-bonding, patented RoofTrac® system
- Features UL2703 listed RoofTrac® Rail Clamping Technology
- Proprietary Drop-N-Lock rail insert drops in and locks ProSolar GroundTrac rails in place
- Pre-engineered and tested for easy permitting
- No cross-bracing required
- Exposed surfaces are fully anodized aluminum for an aesthetically pleasing, attractive appearance
- Each system engineered and load tested to 110 mph wind equivalent per 2013 CBC / 2012 IBC / ASCE 7-10
Ground Trac® Patent #6,360,491
Easy GroundTrac Installation
ProSolar Drill Guide is used to align top of rails with holes.
Drop-N-Lock insert is placed in rail with a U-bolt.
Rails are tightened to the Schedule 40 pipe.
The GroundTrac is perfectly aligned using RoofTrac rails.
GroundTrac accommodates 124”, 136" & 164" RoofTrac rail spans:

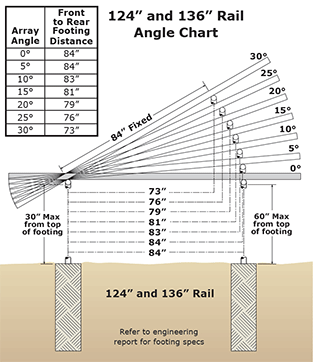

124” x 2-1/2” Deep Channel Rail and 136” x 2-1/2” RoofTrac® Support Rail
- 6 foot on center max (est. 30 psf snow load)
- 10 foot on center max (non-snow load)

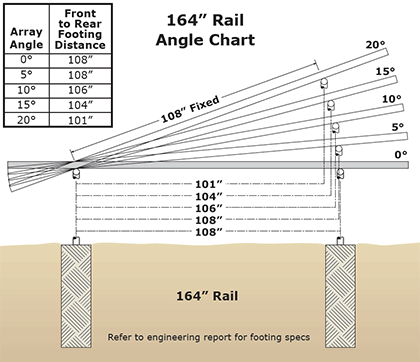

164” x 3” RoofTrac® XD Support Rail
- 8 foot on center max (non-snow load)
ProSolar GroundTrac Documentation

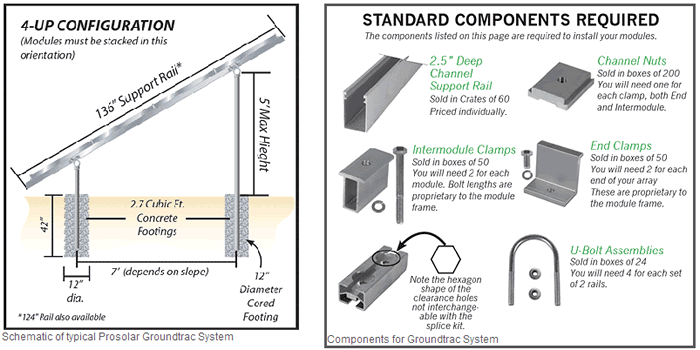

ProSolar GroundTrac Mounting System Parts
GroundTrac Drill Guide Base & Drill Bit
Extended Barrel Hollaender® Pipe Tee
Universal Self-Bonding Splice Assembly
Self-Bonding Mid Clamp Assembly
End Clamp Assembly
Module Bonding Mid-Clamp Bonding Nut
End Clamp Bonding Channel Nut
Ilsco SGB-4 Grounding Lug
Microinverter/Optimizer Bonding Channel Nut
