Improved Performance & Reliability

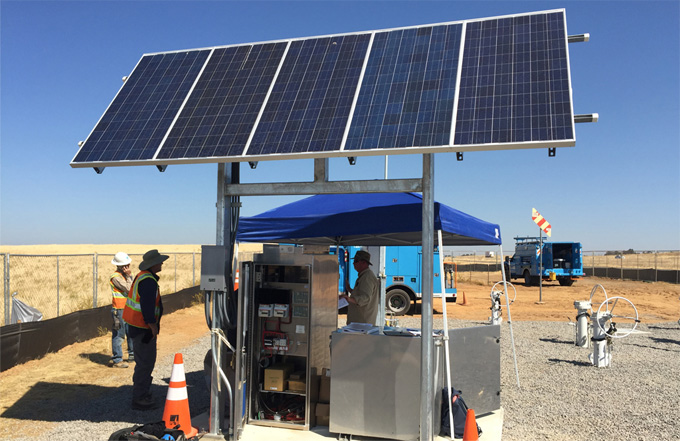

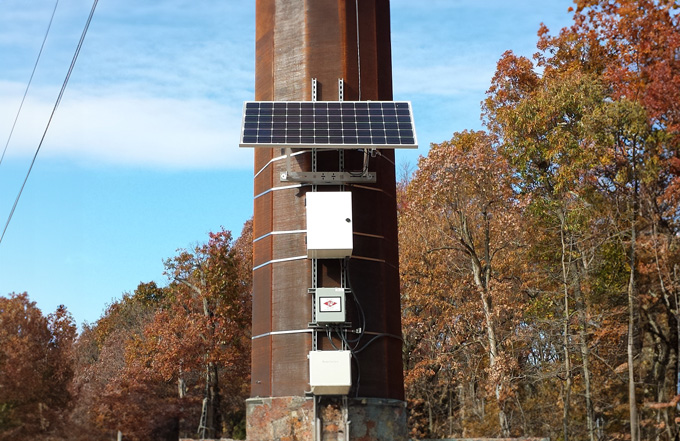

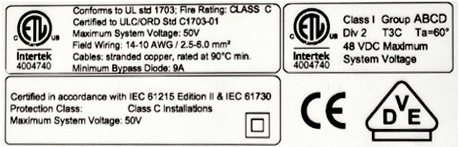

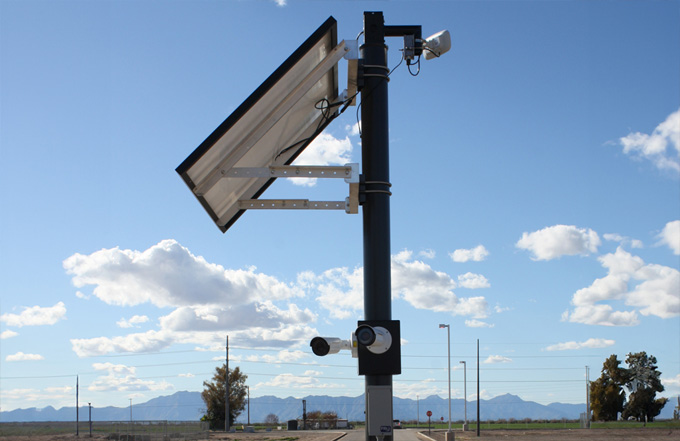

The SES module line is ideal for remote pole or ground mounted off-grid solar power systems. With a rugged anodized aluminum frame and low iron tempered glass, it can handle severe environmental extremes. They are approved for applications in NEC UL 1703 and Class 1, Division 2 Groups A, B, C & D hazardous locations and approved for explosion resistance. This certification is required near gas and oil pipelines.

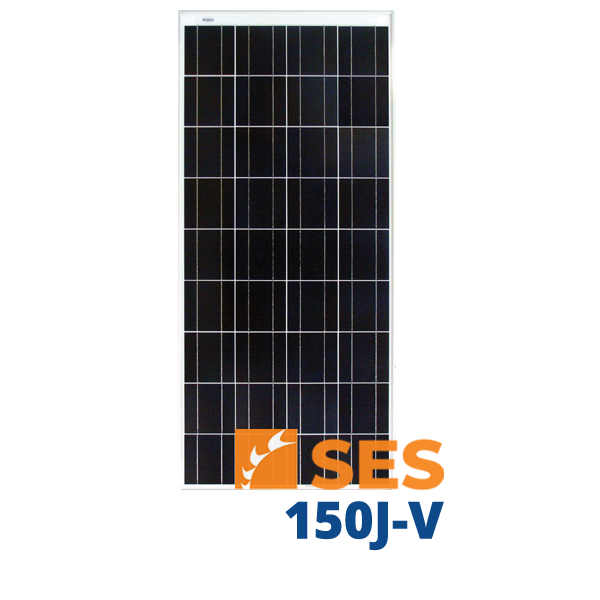

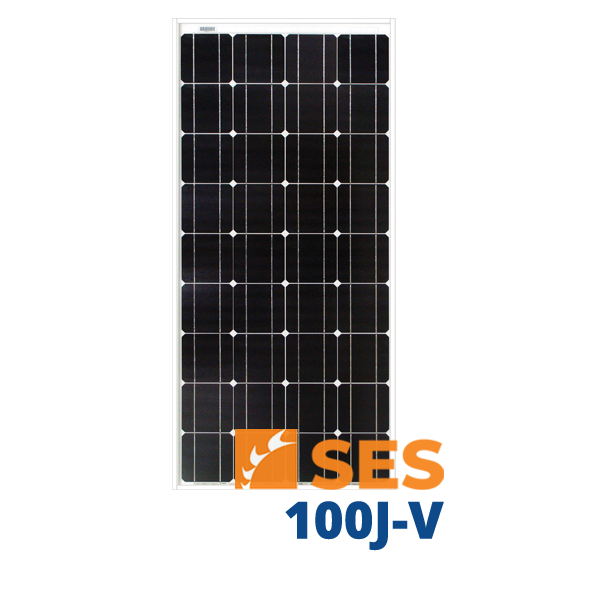

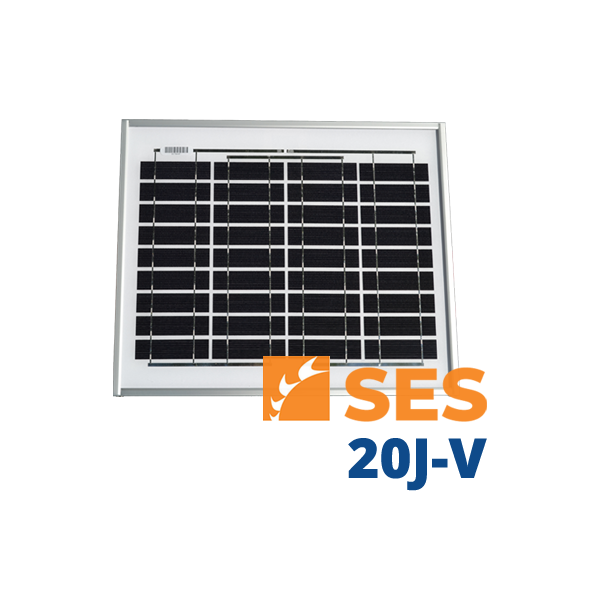

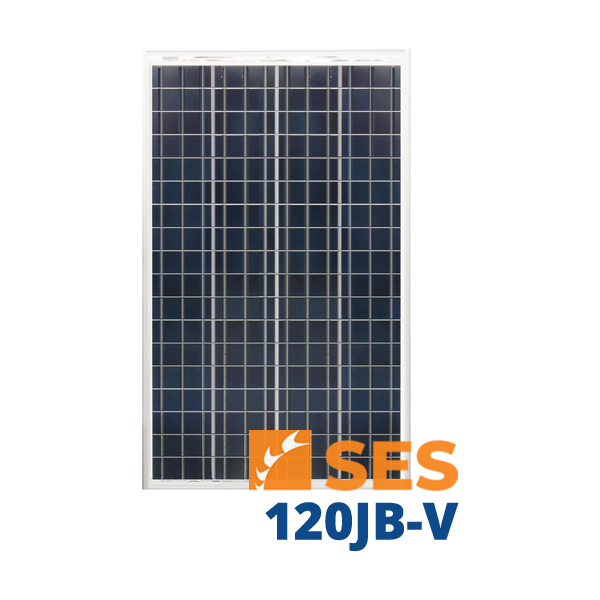

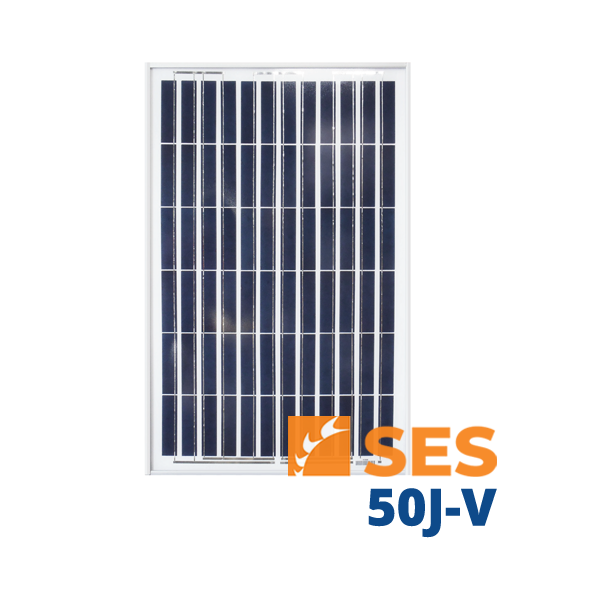

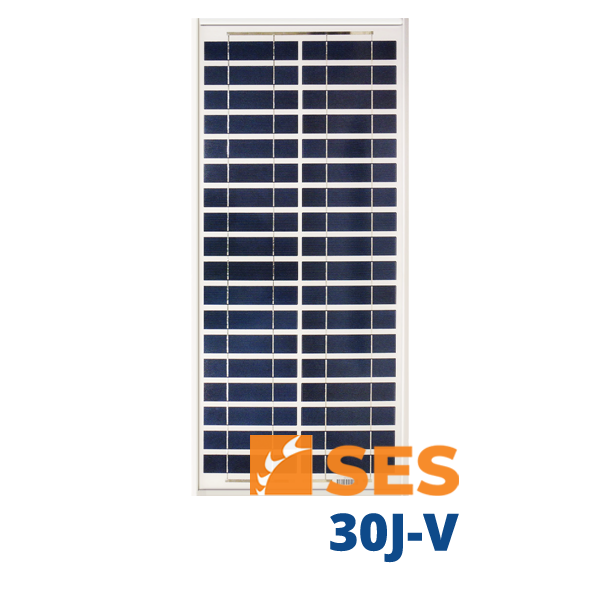

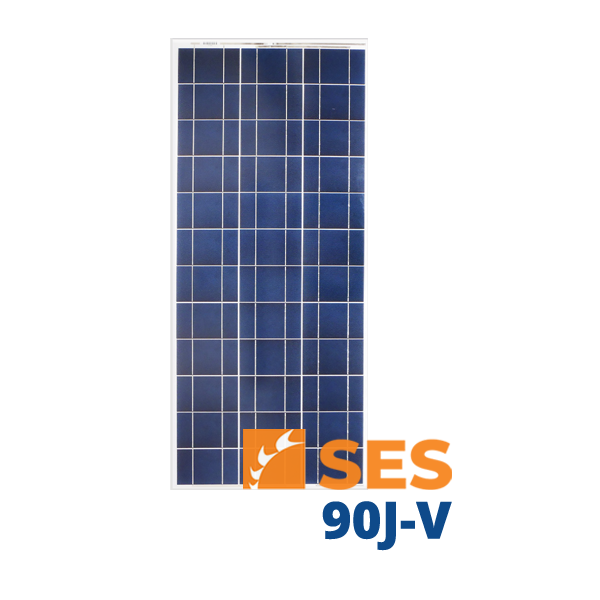

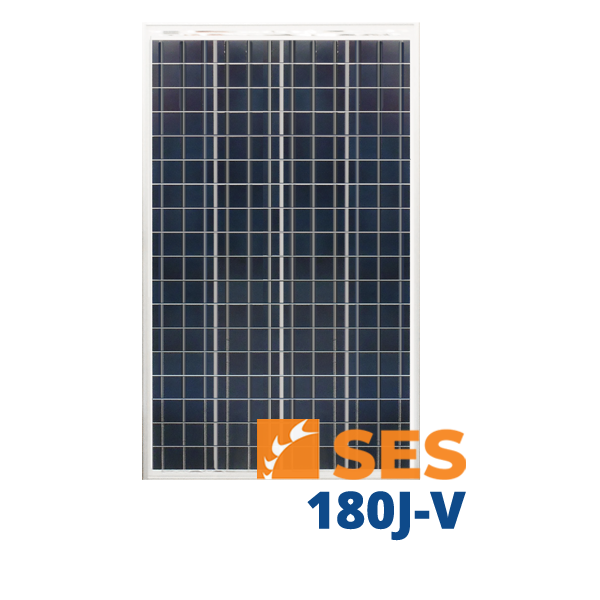

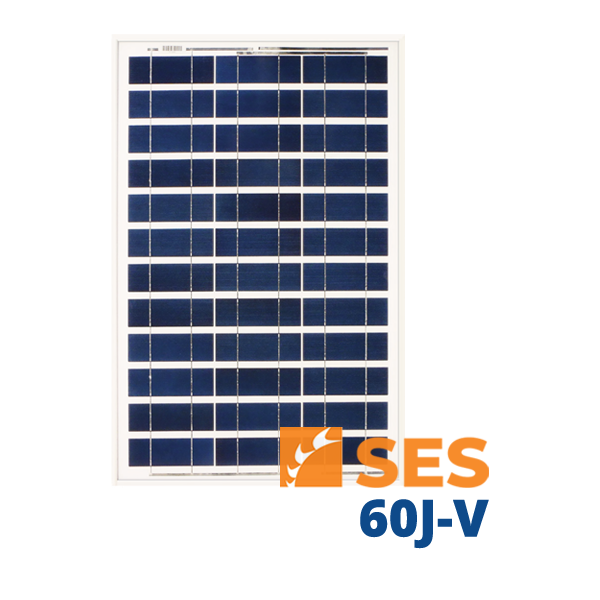

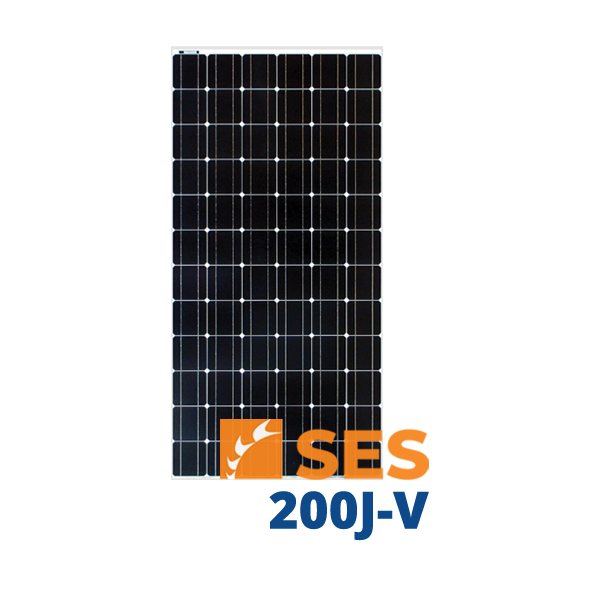

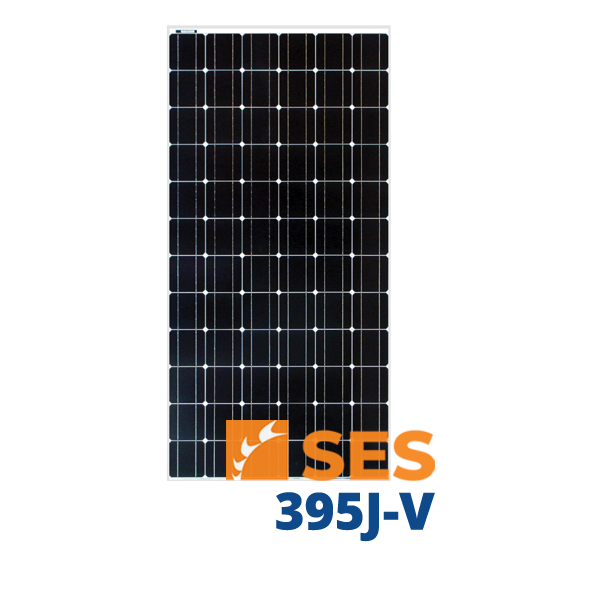

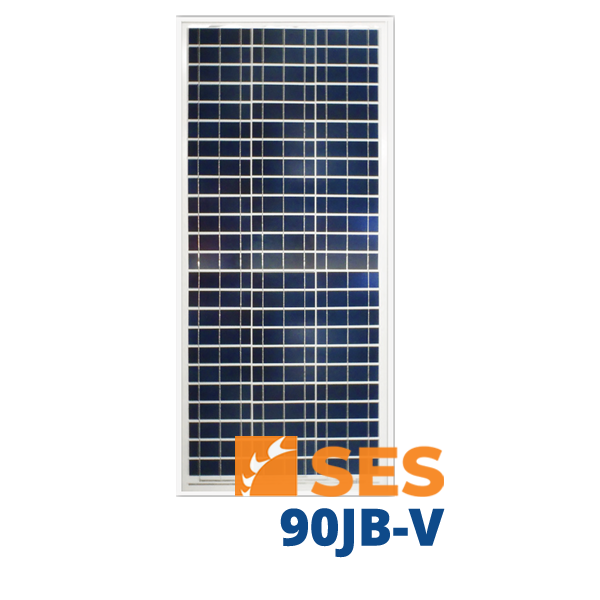

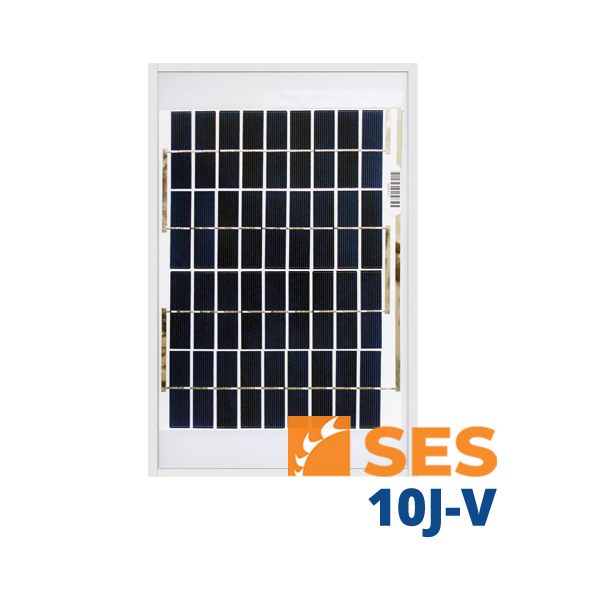

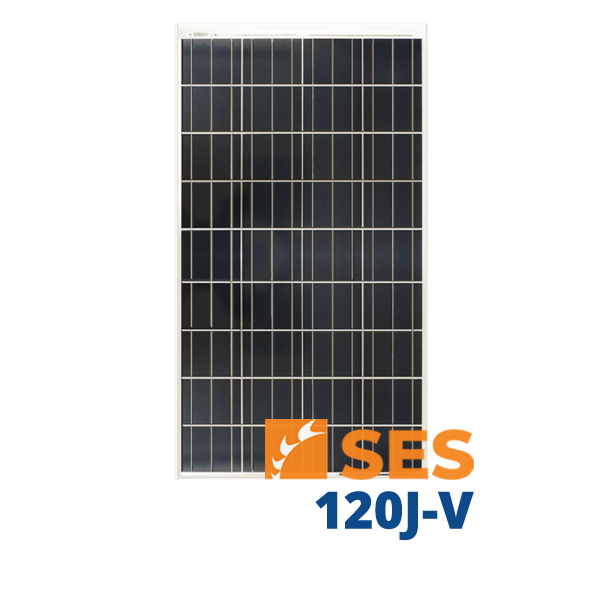

SES J Series Solar Panels w/ Weatherproof Junction Box

The SES J Series modules have a weather proof junction box that accepts 8 AWG to 14 AWG wire. The raintight (IP65 Rated) junction box accepts PG13.5 or 1/2" nominal conduit or cable fittings. With its four-terminal connection block, it enables 12 to 48 VDC system voltages to easily be made using conduit and the weather proof junction boxes. Arrays from 5 Watts to 20 kW can be produced using these robust industrial solar modules. These modules are commonly used in our complete MAPPS® pole mount solar systems.

SES M Series Solar Panels w/ Multimount Frame

The versatile Multimount frame of the SES M Series provides great flexibility in mounting. Oriented parallel to the edge and back of the module, its dual channels accept the heads of 8mm or 5/16" hex bolts, allowing the module to be mounted from the side or back. Bolts may be located anywhere along the channels, a configuration which avoids nuts from turning during tightening and allows installation with just one wrench. Output of the SES M Series is via a 4.6m (15 foot) PVC jacketed (AWG 18-2) cable which terminates in a low-profile junction box on the module back. Epoxy-potted in the box, module electrical connections are sealed against corrosion and effectively strain-relieved. The SES M Series is intended for single-module applications.

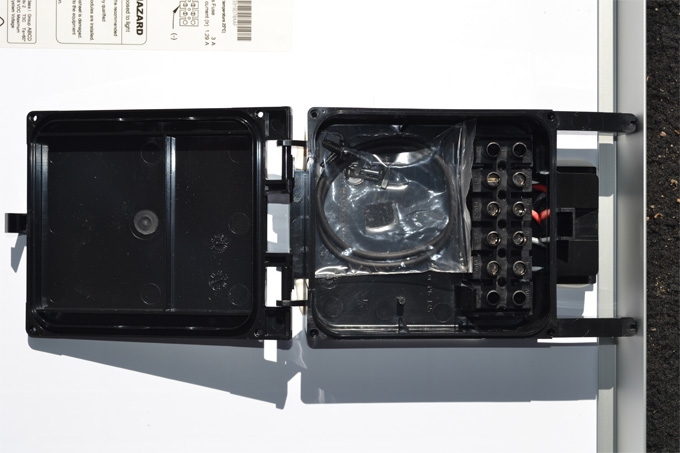

Weathertight Conduit Ready Junction Box

This conduit ready J-type junction box of the J-Series has accessible terminals for easier module interconnections in off-grid solar PV systems. It features cable glands that allow for fitting of various cable sections. Gaskets are included. The box is securely attached to the module frame wall for added durability..

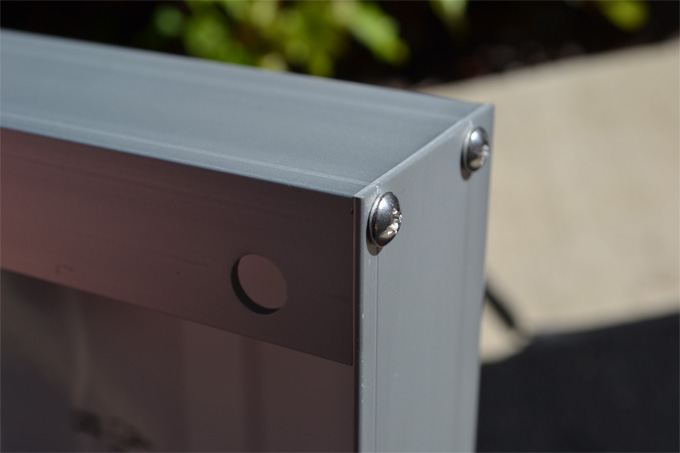

Durable Frame and Backsheet

All SES solar modules features a rugged weatherproof anodized aluminum frame for longevity in high-wind conditions. The thick, durable, scratch resistant backsheet provides extra insulation for increased protection against the elements and rough handling. The white polyester backsheet material lasts the life of the module and increases energy production.

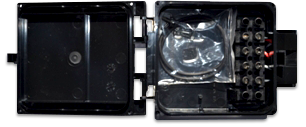

Weathertight Conduit Ready Junction Box

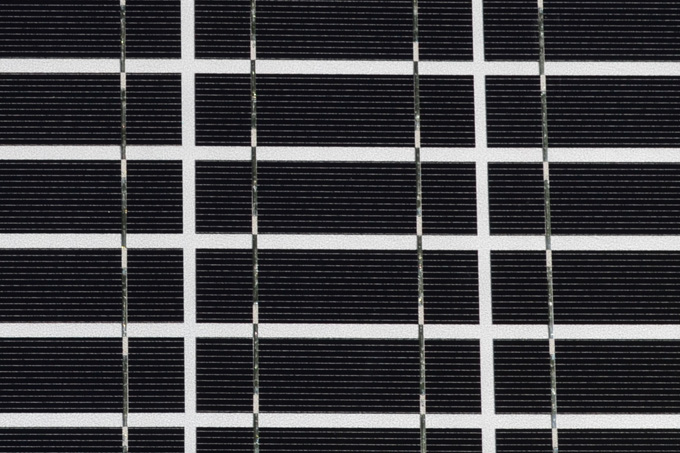

Cell interconnections and diode placement use well-established industry practices and are field-proven to provide excellent reliability.

Pre-drilled Mounting Holes

The anodized aluminum frame features clean pre-drilled mounting holes for solid grounding and attachment to the PV module pole mount.
