Deka Unigy II Spacesaver Batteries

Deka

Deka Unigy II Spacesaver™ Battery Modules

Deka Unigy II Spacesaver Battery Modules

Made in the USA

Deka Unigy II Spacesaver™ Batteries by East Penn Manufacturing are constructed using the finest quality materials and state-of-the-art manufacturing techniques and are known for their high reliability and superior performance. They are ideal for larger, battery-based solar, wind, hydro or hybrid systems that demand high performance and a long cycle life.

This battery module line utilizes a smaller footprint and a real space saver! They save space while providing optimal power. The new reduction in space enables less restriction for ground and vertical space confinements and meets the latest UBC97 Zone 4 specifications, certified up to 8 modules high. Assembly is quick and easy with a simplified, yet advanced layout configuration and "two-way" post design allowing quick connector assembly and optimized current transfer.

The battery modules are available in one-piece base Interlock™ or three-piece non-interlock models. Unigy II AVR battery cells are 100% sealed and thoroughly tested. The cover and jar are composed of rugged polypropylene and is UL 94 V-0 Certified.

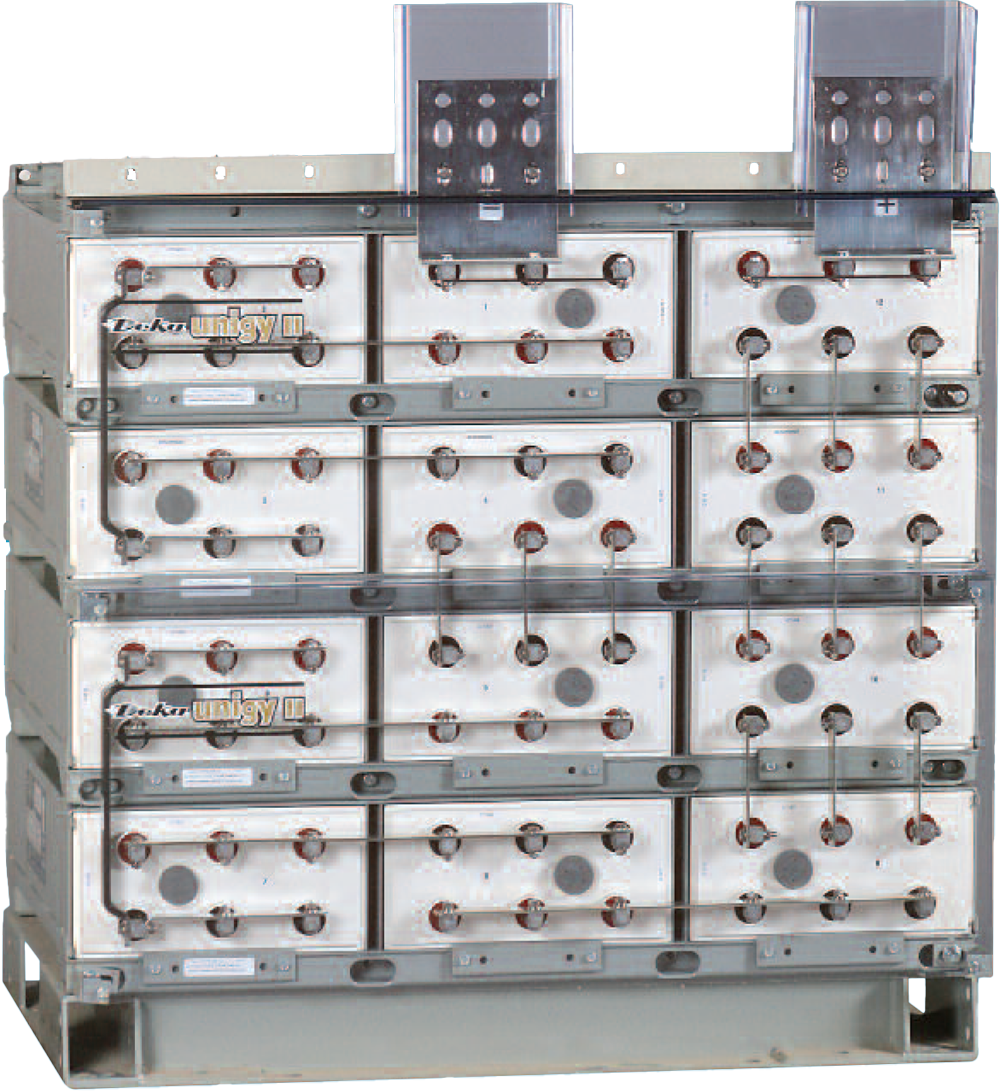

Spacesaver battery system
Solar Electric Supply provides Deka Unigy II Spacesaver battery module systems like this one at a remote island Army base. Sales and complete design services are provided by our experts at low wholesale pricing.

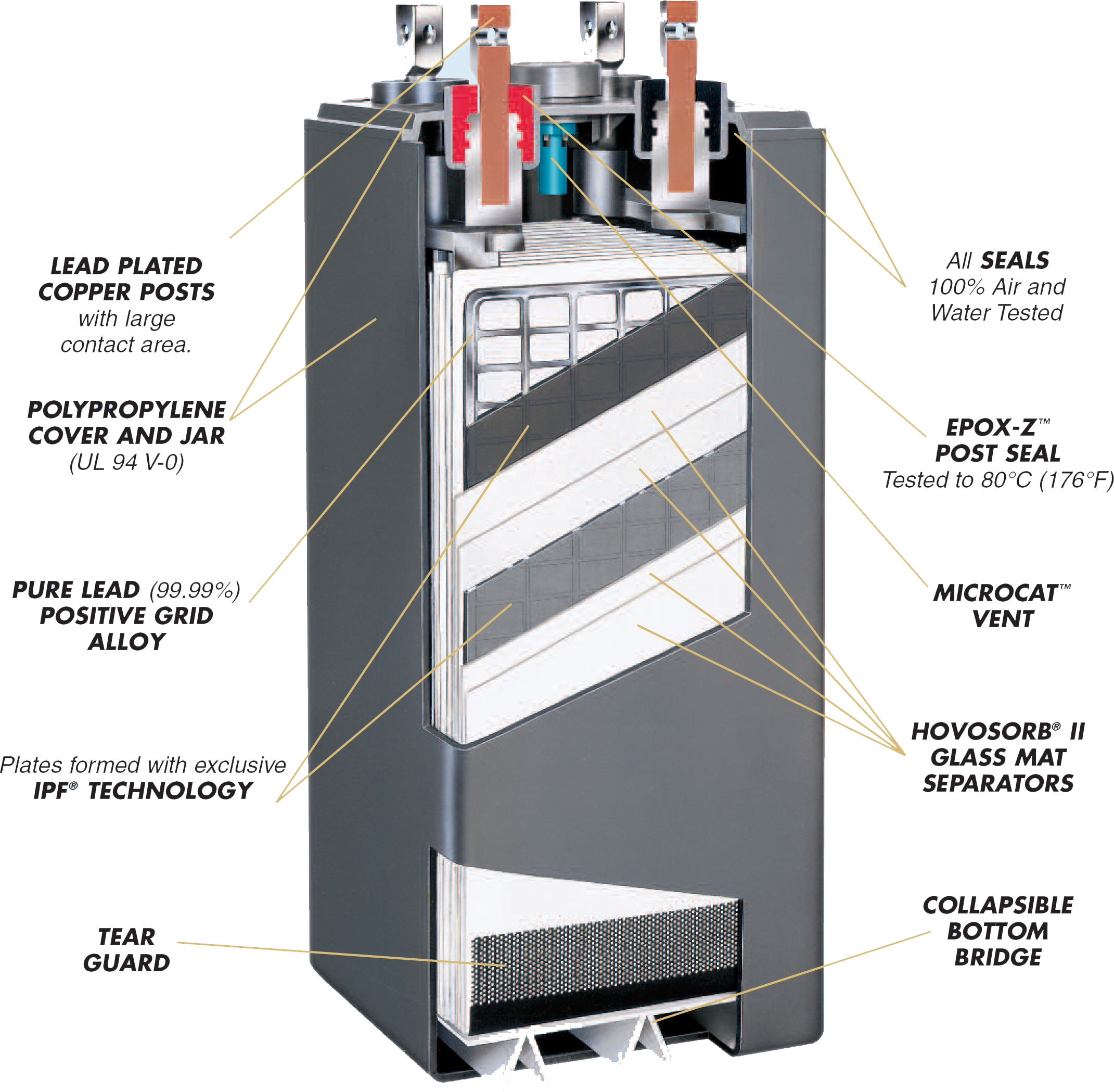

Deka battery cell construction
Deka AVR battery cells feature plates formed with IPF Technology. The rugged polypropylene cover and jar are UL 94 V-0 certified.

Spacesaver™ Review

Deka Unigy II Spacesaver™ Battery Module Systems are ideal for a variety of applications:

  • Island Power Systems
  • Remote Telecommunications
  • Military Bases and Hospitals
  • Microwave Digital Wi-fi & WI-Max Repeaters
  • Remote Residential Power
  • Grid-Tied Solar Battery Backup Systems
  • UPS - Uninterruptible Power Systems
  • Microgrid Wind/Solar/Hydro/Generator Hybrid Systems
Call toll-free (877) 297-0014 for expert assistance, system design or
low wholesale pricing for Deka Unigy II Spacesaver battery module systems.

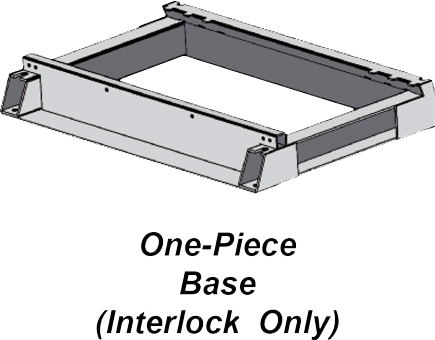

East Penn Manufacturing Interlock Module





Interlock™ Module

The Interlock™ Module features a one-piece base and requires only
front access bolts for mounting. This module option meets UBC 97 (Interlock™ only) Zone 4 top of building requirements. These Interlock™ Modules are certified to 8 modules high, top of building.

Spacesaver Non-Interlock Module





Non-Interlock Module

The Non-Interlock Module features a three-piece base and has front and rear access bolts for mounting. This Non-Interlock model meets UBC 97 Zone 2B top of building requirements – Zone 4. These Non-Interlock Modules are certified up to to 8 modules high on ground level.

System Configurations

  • DC configurations include 12 volt, 24 volt and 48 volt for telecommunications and other sensitive electronic loads.
  • AC system configurations include 120 volt, 240 volt, and 480 volt for UPS and Switchgear Control.

Features and Benefits

  • Re-engineered air gap between cells reduces footprint while maintaining required cooling
  • Front shield design allows for quicker assembly without tools
  • Two-way post design allows for easier connector installation
  • MicroCat™ Vent improves high temperature performance (standard on 95 and 125 models only)
  • Two-piece base (Non-Interlock) meets UBC 97 Zone 2B top of building requirements
    – Zone 4 to 8 modules high on ground level
  • One-piece base meets UBC 97 (Interlock™ only) Zone 4 top of building requirements certified to 8 modules high, top of building
  • AVR95 Cell delivers up to 28% more power in the same space compared to larger competitor models while maintaining a 20-year design life
  • Patented design (Interlock™ Module only) allows for front access bolting – rear bolting is eliminated
  • We also feature the 48-volt AVR95-33. Its size is reduced by 3.5" in height and 6" in width compared to previous Unigy models. The AVR95-33 is rated at 1520 A.H. at the 8 hour rate, to 1.75 volts per cell (vpc)

    All plates in the Unigy II Spacesaver series are individually formed using East Penn Manufacturing's exclusive IPF™ Technology allowing systems to be shipped at 100% rated capacity.

    East Penn Manufacturing (EPM) Unigy II products
    are designed to meet the requirements of
    IEC 60896-21/22, BS 6290 and SR-4228.


    Deka Unigy II Spacesaver Battery Module Models

    AVR75 Cells - 3 Cells Wide
    Deka Module Amp hours Amp hours Module
    Model # 20 hour rate 100 hour rate Volts
    3AVR75-17 720 840 6
    3AVR75-19 820 940 6
    3AVR75-21 920 1050 6
    3AVR75-23 1000 1150 6
    3AVR75-25 1100 1250 6
    3AVR75-27 1200 1360 6
    3AVR75-29 1280 1460 6
    3AVR75-31 1380 1570 6
    3AVR75-33 1460 1670 6
    AVR75 Cells - 6 Cells Wide
    Deka Module Amp hours Amp hours Module
    Model # 20 hour rate 100 hour rate Volts
    6AVR75-5 180 210 12
    6AVR75-7 280 310 12
    6AVR75-9 380 420 12
    6AVR75-11 460 520 12
    6AVR75-13 540 630 12
    6AVR75-15 640 730 12
    Deka Module Model #
    # of Cells
    (2, 3 or 6)
    Battery Cell Model
    (AVR#)
    # of Plates
    (5-33)
    AVR95 Cells - 3 Cells Wide
    Deka Module Amp hours Amp hours Module
    Model # 20 hour rate 100 hour rate Volts
    3AVR95-17 904 1076 6
    3AVR95-19 1016 1210 6
    3AVR95-21 1129 1345 6
    3AVR95-23 1242 1479 6
    3AVR95-25 1355 1614 6
    3AVR95-27 1468 1748 6
    3AVR95-29 1581 1882 6
    3AVR95-31 1694 2017 6
    3AVR95-33 1807 2151 6
    AVR95 Cells - 6 Cells Wide
    Deka Module Amp hours Amp hours Module
    Model # 20 hour rate 100 hour rate Volts
    6AVR95-15 791 941 12

    AVR125 Cells - 2 Cells Wide
    Deka Module Amp hours Amp hours Module
    Model # 20 hour rate 100 hour rate Volts
    2AVR125-33 2367 2930 4
    Deka Module Model #
    # of Cells
    (2, 3 or 6)
    Battery Cell Model
    (AVR#)
    # of Plates
    (5-33)

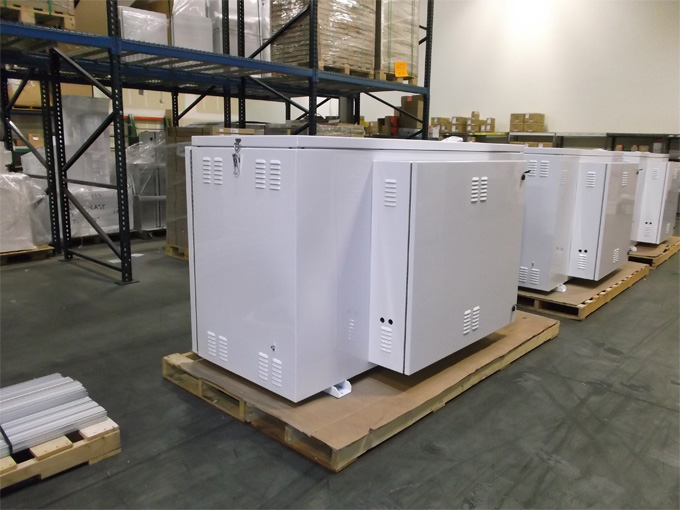

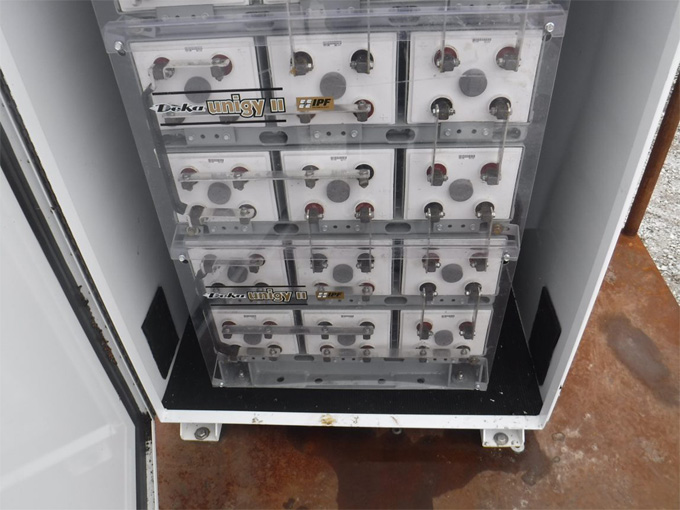

    Spacesaver system

    Complete Deka Unigy II Spacesaver Systems

    With decades of experience, Solar Electric Supply has the friendly, knowledgeable staff for just about any large battery powered project. Contact us for wholesale pricing and expert system design.

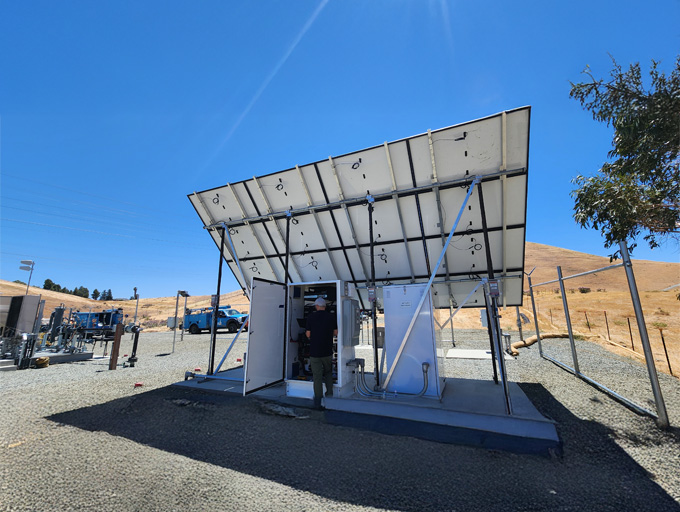

    Microgrid system using a Unigy II Spacesaver system
    Microgrid hybrid solar/wind/genset systems using Unigy II Spacesaver systems can be installed at just about any remote location.


    East Penn Manufacturing Deka Unigy II Spacesaver Brochure

    Deka Solar Unigy II Spacesaver Module Models

    Deka Unigy II Spacesaver Interlock / Non-Interlock Module Dimensions



    Call toll-free (877) 297-0014 for expert assistance or wholesale pricing for the Deka Unigy II Spacesaver by East Penn Manufacturing.
