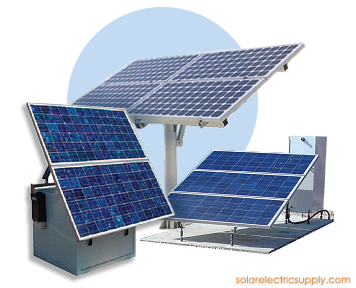

MAPPS pad and pole mount solar system

Pad & Pole Mounted Solar Systems

MAPPS® Remote Off-Grid Battery Enclosure Solar Systems for Outdoor Applications

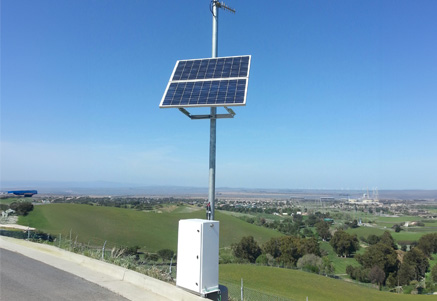

pole mount solar system

These MAPPS® models are complete pole mounted, pad mounted and ground mounted pre-wired solar power systems. Outdoor solar system applications using these off-grid battery enclosures include remote security, LED obstruction lighting, utility meter reading, SCADA, RTU, oil & gas pipelines, flow control and monitoring, telecommunications, railroad telemetry, WiFi and Wimax, rural broadband, GPS, ITS Intelligent Traffic Control Systems, street/area/billboard sign lighting systems, solar plant monitoring, homeland security, VSAT, mobile backhaul, island power, emergency power, cathodic protection and more.

MAPPS
12 VDC Pole-Mount Solar Systems

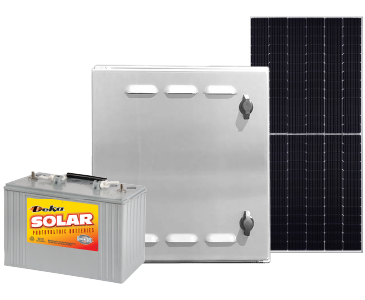

20W 12V pole-mount solar system
20W 36AHr
12V
30W 12V pole-mounted solar panel system
30W 58AHr
12V
50W 12 Volt  pv system
50W 108AHr
12V
90W 12V pole-mount solar panel system
90W 108AHr
12V
90W 12 Volt pole-mount - 2 battery solar system
90W 216AHr
12V
150 Watt 12V pole-mounted solar module system
150W 216AHr
12V
180W 12V system
180W 216AHr
12V
300W 12VDC pole-mount solar power system
300W 265AHr
12V
300W 12V pole-mount solar system
300W 530AHr
12V
MAPPS
24 VDC Pole-Mount Solar Systems
80W 24V pole-mounted solar panel system
80W 108AHr
24V
200W 24V pole-mount solar system
200W 108AHr
24V
300W 24V pole-mounted solar panel system
300W 265AHr
24V
380W 24V pole-mounted solar panel system
400W 265AHr
24V
380W 24V pole-mounted solar panel system
400W 530AHr
24V
570W 24V pole-mounted solar panel system
600W 530AHr
24V
760W 24V pole-mounted solar panel system
800W 530AHr
24V
MAPPS
24 VDC Pad-Mount Solar Systems
400W 24V pole-mounted solar panel system
400W 530AHr
24V
600W 24V pole-mounted solar panel system
600W 530AHr
24V
800W 24V pole-mounted solar panel system
800W 530AHr
24V
1200W 24V pole-mounted solar panel system
1200W 530AHr
24V
1200W 24V pole-mounted solar panel system
1200W 1060AHr
24V

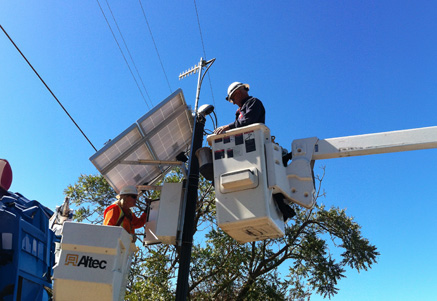

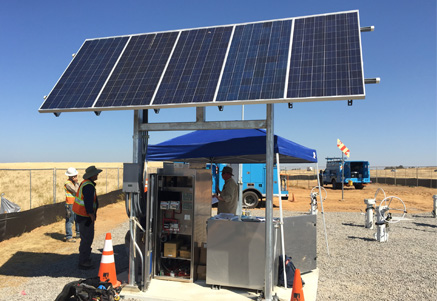

contractors installing MAPPS Pole Mounted Solar System

Easy to Install & Customize

MAPPS® are easy to install pad and pole mount solar systems with all the major parts needed for your remote site installation. Special Pricing for Contractors, System Integrators, VAR, OEM, Government, GSA .

We have the right MAPPS® solar power supply for your application.

Getting your project off the ground seems effortless, when using the SES MAPPS® solar power supply. Simply deliver the load requirements and run time of your equipment to any SES Technical Sales Associate. We use decades of off-grid solar system experience to design a system to fit your application. MAPPS® systems include the most recent advances in modules, charge controllers, battery technology and come complete with installation/operations.

International inquiries welcome!

SES MAPPS Documentation

View FileSES MAPPS Brochure

View FileSES MAPPS Design Guide

View FileSES MAPPS Request for Quote Worksheet

MAPPS® Pole & Pad Mount Solar System Features & Review

pole-mounted nema 3r solar enclosure

Weatherproof 3R pole mount enclosure to ensure component protection from the elements.

sealed batteries

MAPPS® systems include the highest quality sealed batteries that will last for years maintenance free.

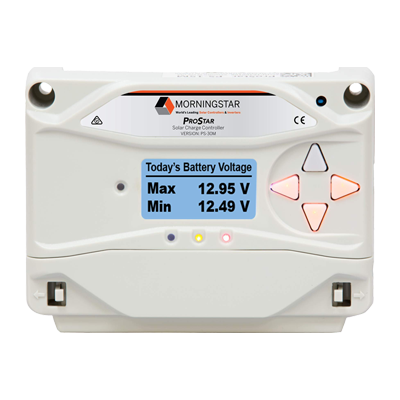

charge controller

The charge/load controller is system specific. Only name-brand field proven UL listed controllers are used for safety and reliability.

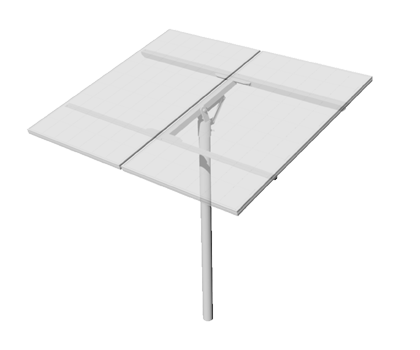

top of pole mount solar panels

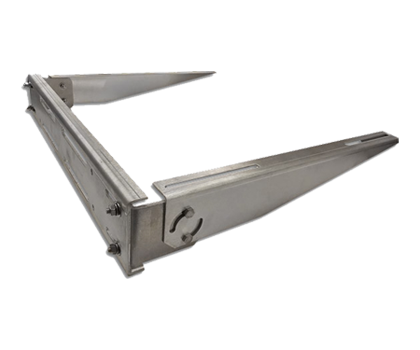

Many mount options include top-of-pole, side-of-pole, and pad mounts.

pole mount review

All solar panel mounts are engineered to survive the harshest local environments.

MAPPS® System Features

  • Reliable
  • Cost-Effective
  • Low Maintenance
  • Easy Installation
  • Versatile Modular Design
  • Self-Contained
  • Low Voltage
  • No Generator
  • No Trenching
  • Simplified Permit Procedures
  • UL Listed components
  • Inspector Friendly
  • solar inverter option

    MAPPS® System Components

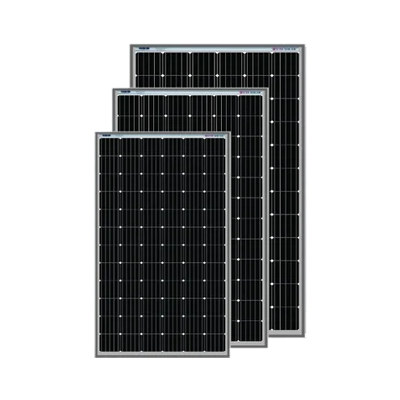

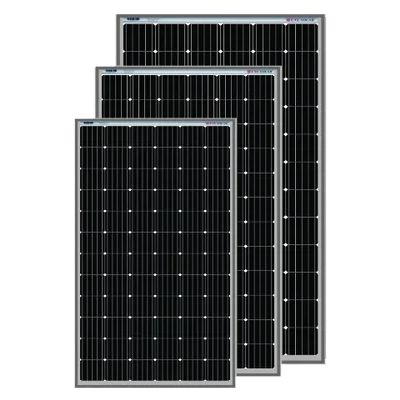

    Photovoltaic Modules

  • High Efficiency Crystalline Silicon
  • Meet JPL Block V Durability Criteria
  • Tempered Glass and Aluminum Frame
  • Weather Rated Frame
  • Module Warranty up to 25 Years

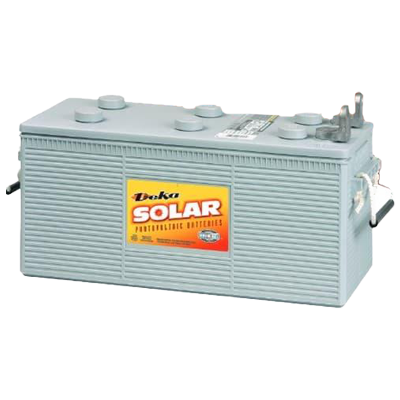

  • Gel Cell Sealed Batteries

  • Sealed Maintenance-Free
  • Excellent Deep-Cycling Performance
  • Immobilized Electrolyte, Non-Spillable
  • Transports Easily and Safety Vented
  • Industry Compliant
  • Charge/Load System Controller

  • Field Proven High Efficiency Design
  • Temperature Compensated Charging
  • Low Voltage Load Disconnect
  • Most Models UL Listed and FM Approved
  • Easy Access Terminals
  • UL Listed
  • Balance of System Components

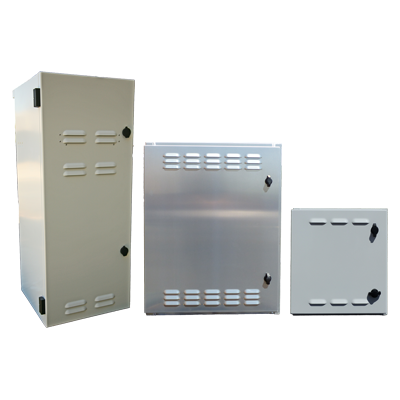

  • Weatherproof Battery/Controller Enclosure
  • Heavy Duty Aluminum Mounting Structures
  • Color-Coded, Pre-Cut Wiring Harness
  • Installation Manual and System Schematics
  • MAPPS® are completely certified and built with the highest quality components.

    Engineered with the finest components in the industry to support highest standard of reliability for any project. Each component within the MAPPS® system have passed thorough testing and are suitable for the harshest environments. Trust the system delivering power to your equipment on any remote off grid location. MAPPS™ are complete solar power supply that assures trouble free operation from the very start.

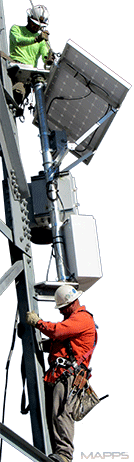

    pole mount solar system on tower

    Reliable Power for your Project

    Solar Electric Supply MAPPS® are stand-alone photovoltaic power systems, engineered to support a wide variety of remote solar battery power requirements with critical reliability in mind.
    With a weatherproof enclosure, mount and batteries included; MAPPS™ are engineered to provide reliable, stand-alone solar power for virtually every location and application.

    Field Proven Experience

    Solar Electric Supply is the most experienced remote industrial solar design firm in the United States. More SES MAPPS® systems have been installed word-wide than any other packaged solar system. Using proprietary computer modeling /design programs and an experienced SES technical staff, MAPPS® are designed to ensure year-round power availability.

    Time Tested Reliability

    MAPPS® systems represent the highest standard of reliability. All components have passed rigorous testing and are suitable for use in the harshest of environments. Every MAPPS® system component is tested individually, assuring trouble-free operation right from the start.

    What SES MAPPS® Quality Means for You

  • MAPPS® system design and components meet or exceed the highest safety standards.
  • All components used in MAPPS® systems meet UL requirements.
  • UL is the most widely recognized safety standard by electrical inspectors.
  • SES MAPPS® production facilities and procedures meet or exceed strict quality assurance guidelines.
  • Unparalleled Solar Experience

    Our staff has over 40 years experience designing reliable solutions to remote power needs.
    We know and understand battery systems, and our expertise with renewable energy is some of the best in North America.

    With tens of thousands of pad and pole mount solar systems working in the field, from Arctic to desert environments, we are your energy solution partner.

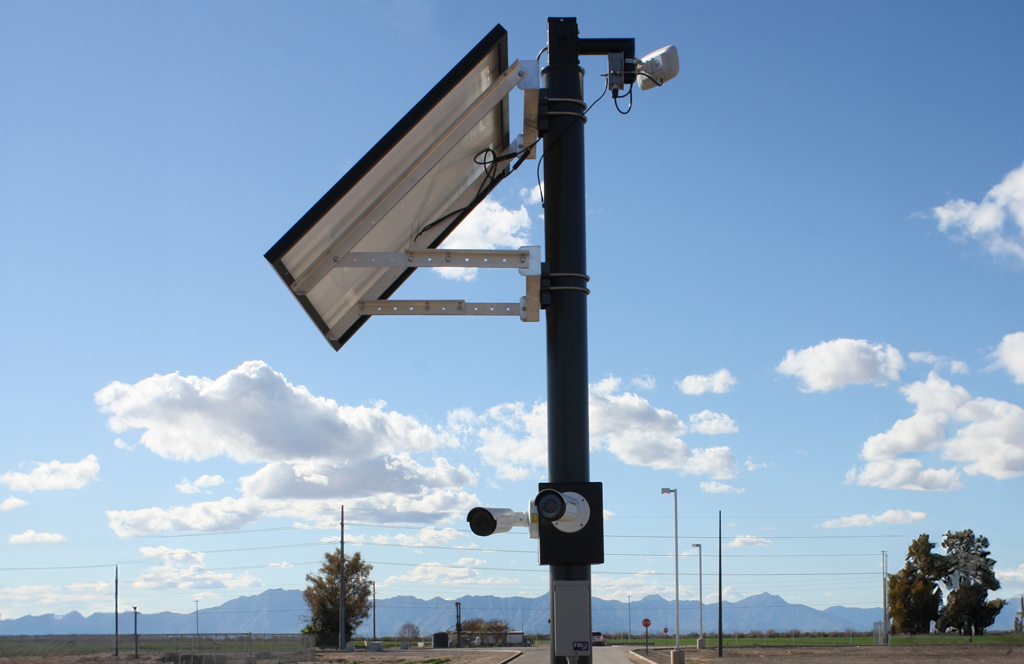

    wifi security camera on pole mount

    Wireless utility meter reader powered by a 180W MAPPS™ pole mount solar system.

    WiFi WiMax wireless broadband repeater pad mount

    350 Watt MAPPS pad mount WiFi Wimax Wireless Broadband Repeater

    pre-assembled solar system

    MAPPS™ fully pre-assembled system ready for deployment.

    FAA tower mounted LED lighting
    FAA tower-mounted MAPPS for
    obstruction lighting
    solar powered forward base lighting
    Forward Base Lighting for US Army
    Military Ft. Irwin, CA
    RFID wireless pole mount solar system for Army
    MAPPS pole mount RFID wireless system for US Army in Kuwait.

    MAPPS® Applications

    We have the right MAPPS® solar power supply for your application.

    Getting your project off the ground seems effortless, when using the SES MAPPS® solar power supply. Simply deliver the load requirements and run time of your equipment to any SES Technical Sales Associate. We use decades of off grid experience to design a system to fit your application. MAPPS® systems include the most recent advances in modules, charge controllers, battery technology and come complete with installation/operations guide and system schematics.

    MAPPS® Pad & Pole Mount Solar Systems can power:

  • Wireless Data Solar Systems
  • Solar Security Camera System
  • Solar Powered SCADA RTU Systems
  • Solar for Cellular and Two-Way Radio Systems
  • Wi-Fi & Wi-Max remote Solar Systems
  • Solar Powered Microwave Relay
  • Solar Railroad Signaling Systems
  • Solar Farm system monitoring
  • Rural Development
  • Rural Habitation
  • Solar Street/Area/Sign Lighting Systems
  • Solar Tower Obstruction LED Beacon Systems
  • Vaccine Refrigeration Solar Systems
  • Telecommunication Solar Systems
  • ITS Intelligent Traffic Control Solar Systems
  • Flow Control & Level Monitoring Solar Systems
  •

    US Air Force airfield battery enclosure system
    US Air Force using MAPPS 1060AHr battery enclosures.
    Class I Div 2 solar system pole and pad mount
    Utility company Class I Division 2 solar system

    Pole Mounted MAPPS® Battery & Control Enclosures

    pole mount battery enclosure
    108 AHr pole-mounted
    battery control enclosure
    pole mount battery enclosure PV load center

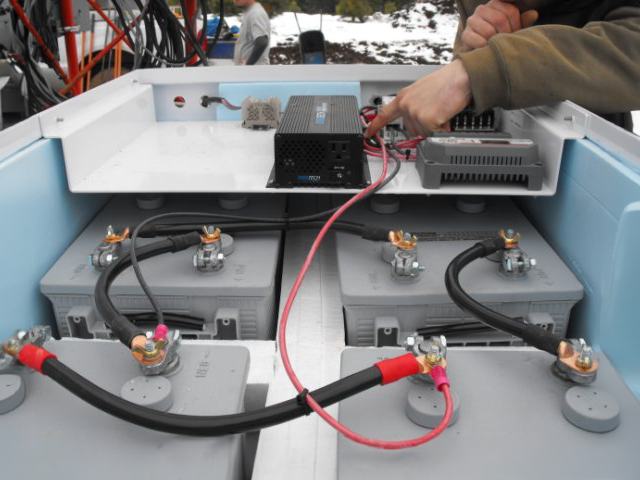

    All complete MAPPS® solar systems come pre-wired with a charge/load center.

    Pad-Mounted MAPPS® Battery & Control Enclosures

    pad mount 2 battery enclosure
    Prewired Pad 3R enclosure shipped
    w/ insulated battery, inverter & control/load center.
    insulated solar battery enclosure
    Pad-mounted solar battery enclosure
    w/ filtered vents and inverter

    Solar Pole Mounting Structure Attachment Methods

    pole mount band clamp
    Solar module pole mount w/ band clamp
    unistrut clamp on pole
    Unistrut clamp pole enclosure mount
    unistrut pole clamp side view
    Solar panel U-Bolt mount attachment

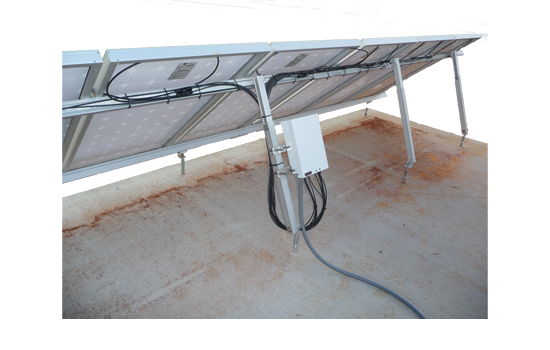

    frangible mount system
    Frangible mounting structure


    Call us for a Free Sizing and Quotation for your Project! Toll-Free: (877) 297-0014

    Models & Pricing

    12 Volt MAPPS® Pole Mount Solar System Specifications

    12 Volt DC Systems

    MAPPS® ID Number

     Solar
    Array
    Wattage

    Battery
    Amp-Hr
    Rating

    Control
    Amp
    Capacity

    Mounting
    System
    Design

    Battery
    Enclosure
    Design

    SES
    System
    Price

    Radio
    Shelf
    Price
    MAPPS 20-36-12
    20
    35 10 Pole POLE 3R $1,303 n/a
    MAPPS 30-58-12
    30
    55 10 Pole POLE 3R $1,538 n/a
    MAPPS 50-108-12
    50
    108 10 Pole POLE 3R $1,931 $2,202
    MAPPS 90-108-12
    90
    108 10 Pole POLE 3R $2,036 $2,315
    MAPPS 90-216-12
    90
    216 20 Pole POLE 3R $2,653 $3,027
    MAPPS 140-216-12
    150
    216 20 Pole POLE 3R $3,029 $3,617
    MAPPS 180-216-12
    200
    216 20 Pole POLE 3R $3,448 $4,022
    MAPPS 280-265-12
    300
    265 30 Pole POLE 3R $4,696 $4,859
    MAPPS 280-530-12
    300
    530 30 Pole POLE 3R $5,888 n/a
    Note: Radio Shelf option includes larger enclosure with ample room for customer load equipment
    Options
    (Add to Model#)
    Add -RS for radio shelf
    Add -SL for Sunlight Lighting Controller
    Add-FC for Frangible Couplings

    24 Volt MAPPS® Solar System Specifications - Pad or Pole Mounted

    24 Volt DC Systems

    MAPPS® ID Number

     Solar
    Array
    Wattage

    Battery
    Amp-Hr
    Rating

    Control
    Amp
    Capacity

    Mounting
    System
    Design

    Battery
    Enclosure
    Design

    SES
    System
    Price

    Radio
    Shelf
    Price
    MAPPS 80-108-24
    100
    108 10 Pole POLE 3R $2,996 $3,480
    MAPPS 190-108-24
    200
    108 10 Pole POLE 3R $3,376 $3,721
    MAPPS 280-265-24
    280
    265 20 Pole POLE 3R $5,604 $6,990
    MAPPS 380-265-24
    400
    265 15 Pole POLE 3R $5,704 $7,058
    MAPPS 380-530-24-POLE
    400
    530 30 Pole POLE 3R $10,805 n/a
    MAPPS 380-530-24-PAD
    400
    530 30 Ground PAD 3R $10,805 n/a
    MAPPS 570-530-24-POLE
    600
    530 30 Pole POLE 3R $11,997 n/a
    MAPPS 570-530-24-PAD
    600
    530 30 Ground PAD 3R $11,997 n/a
    MAPPS 760-530-24-POLE
    800
    530 30 Pole POLE 3R $13,287 n/a
    MAPPS 760-530-24-PAD
    800
    530 30 Ground PAD 3R $13,287 n/a
    MAPPS 1140-530-24-PAD
    1200
    530 60 Ground PAD 3R $14,237 n/a
    MAPPS 1140-1060-24-PAD
    1200
    1060 60 Ground PAD 3R $24,268 n/a
    Note: Radio Shelf option includes larger enclosure with ample room for customer load equipment
    Options
    (Add to Model#)
    Add -RS for radio shelf
    Add -SL for Sunlight Lighting Controller
    Add-FC for Frangible Couplings

    Call us for a free sizing and quotation for your project! Toll-Free: (877) 297-0014
