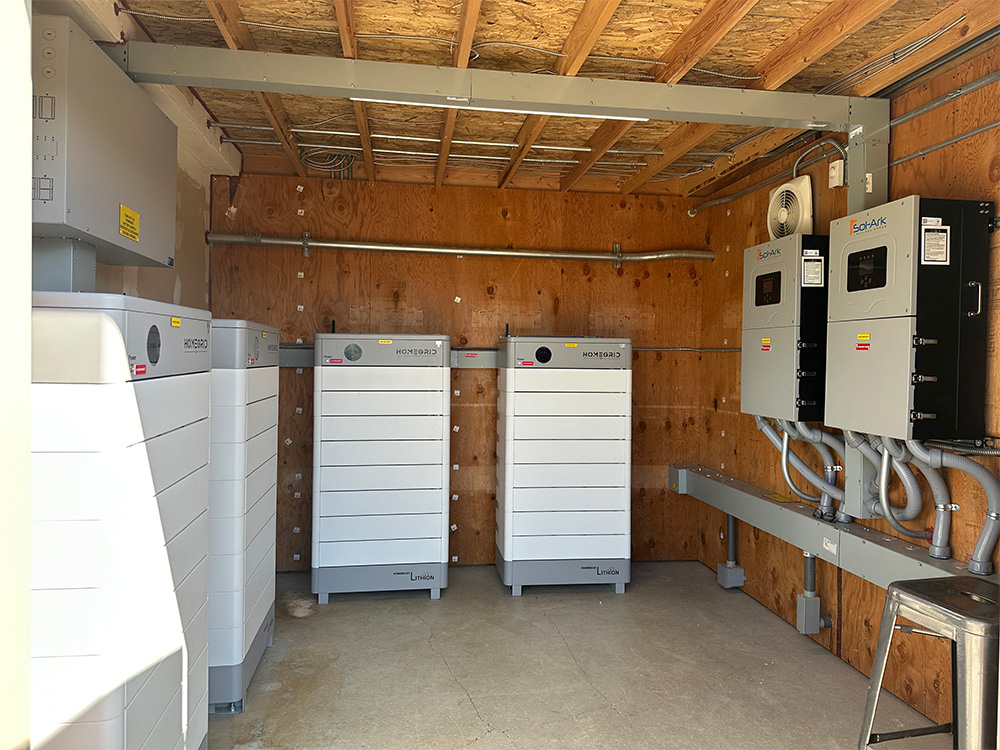

HomeGrid Stack'd Series Lithium Batteries

Stack'd Series Overview

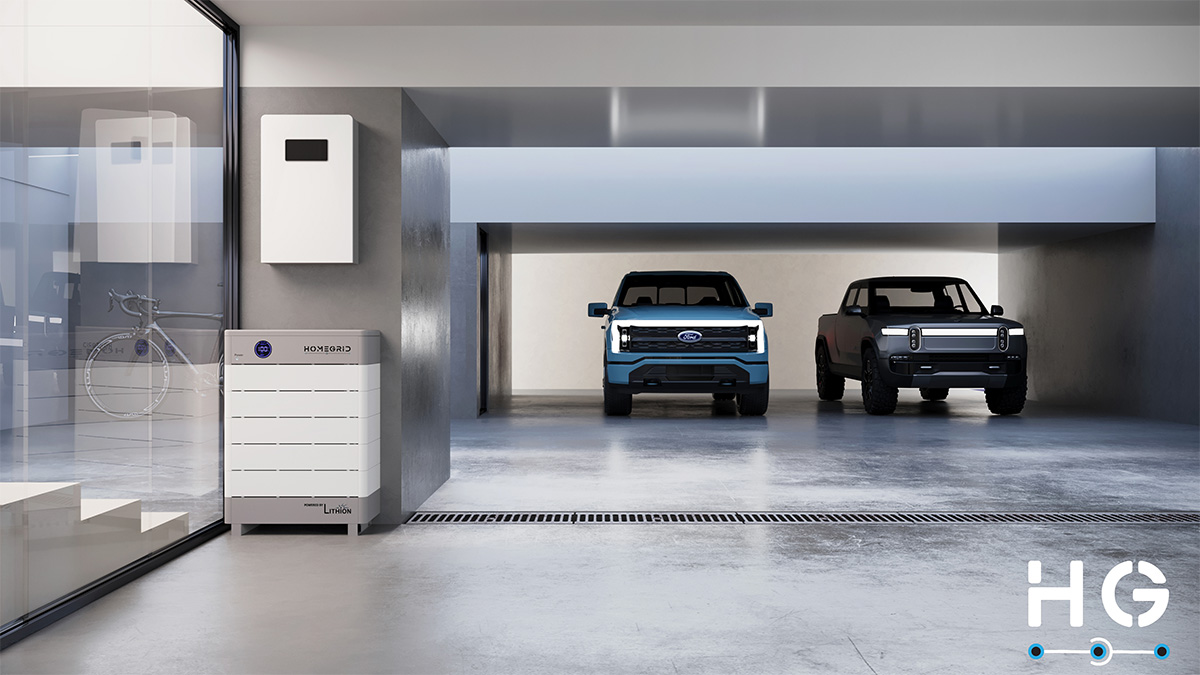

The HomeGrid Stack'd Series battery is the ultimate storage solution for residential and small commercial projects. With its unparalleled output and capacity range, this modular battery system is designed for a variety of applications, from NEM 3 and peak rate TOU (time-of-use) offset, full/partial backup battery power for homes, and small-mid size commercial storage systems.

The Stack'd Series boasts an impressive output of up to 14.4 kW continuous power and a surge capacity of up to 24 kW for 10 seconds. The system's capacity ranges from 9.6 kWh to 38.4 kWh per Stack, with the ability to connect up to 15 units in parallel for a staggering total capacity of 576 kWh. The modular design allows for easy installation in under 30 minutes and provides the flexibility to expand the system as energy needs grow. HomeGrid also offers heated modules for colder climates and an outdoor case for enhanced protection against the elements.

As an Elite Distributor for HomeGrid, Solar Electric Supply is proud to offer customers exclusive access to the cutting-edge Stack'd Series battery system, providing top-tier support and competitive pricing to ensure your project's success from the start. Contact Us today to learn more!

Stack'd Series Features

The HomeGrid Stack'd Series is designed with cutting-edge technology and user convenience in mind. By utilizing Lithium Iron Phosphate (LFP) chemistry, these batteries prioritize safety and longevity, surpassing the performance of other chemistries in the stationary storage market. With a single unit capable of delivering nearly 15 kW of continuous power and a 24 kW surge, the Stack'd Series can effortlessly handle the energy needs of an entire home or business, including power-hungry appliances like air conditioning and water pumps.

High Capacity

The Stack'd Series supports up to 15 units in parallel, delivering exceptional storage capacity.

10 year Warranty

Each component is backed by a comprehensive warranty to support upgradability.

Modular Design

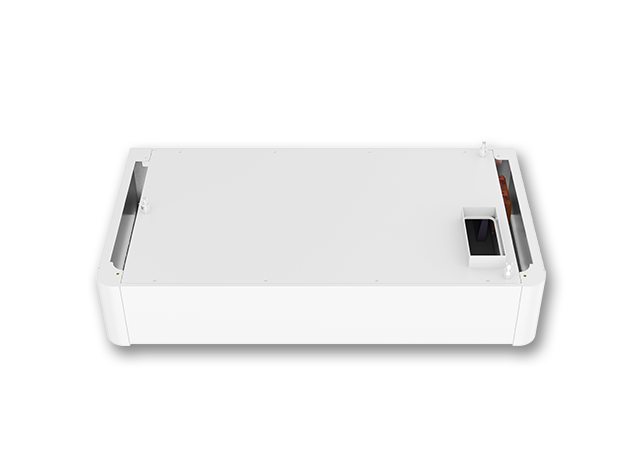

With 4.8kWh modules and support for 2-8 modules per Stack, customization is effortless.

Live Communications

Stay informed with real-time display, mobile access, and closed-loop communications.

Safe for Home

Stay informed with real-time display, mobile access, and closed-loop communications.

High Power 14.4kW

Designed to provide reliable whole home backup power when you need it most.

The Stack'd Series is Modular, Powerfull, and Easy to Install

Stack'd Series Specifications

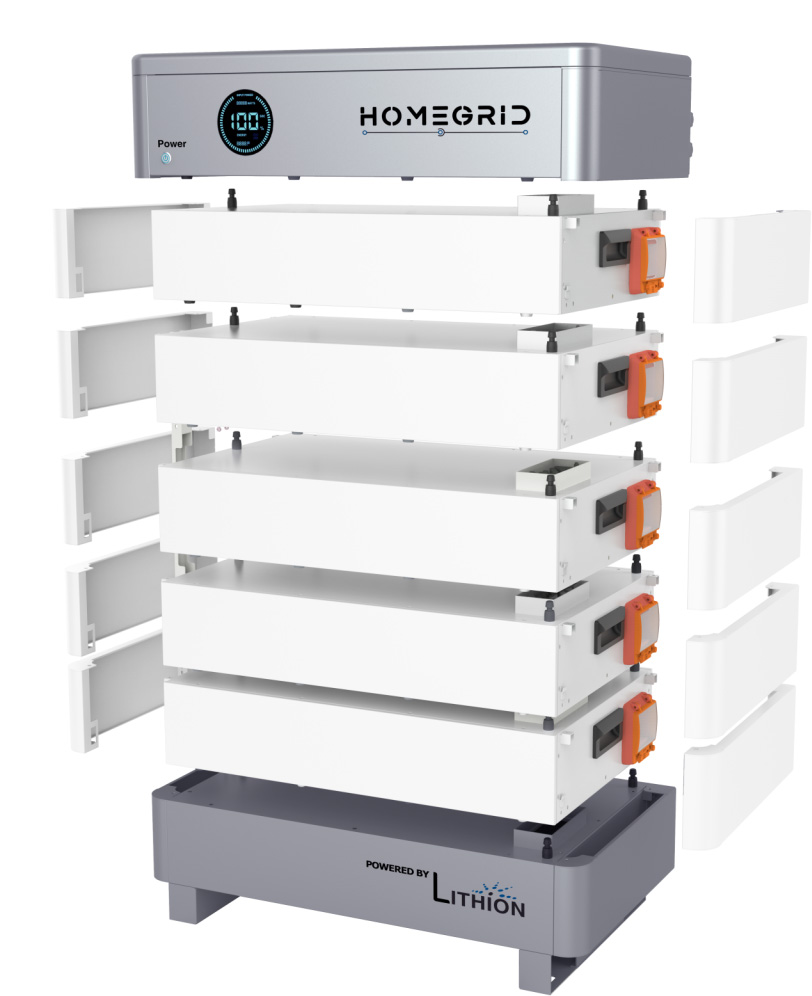

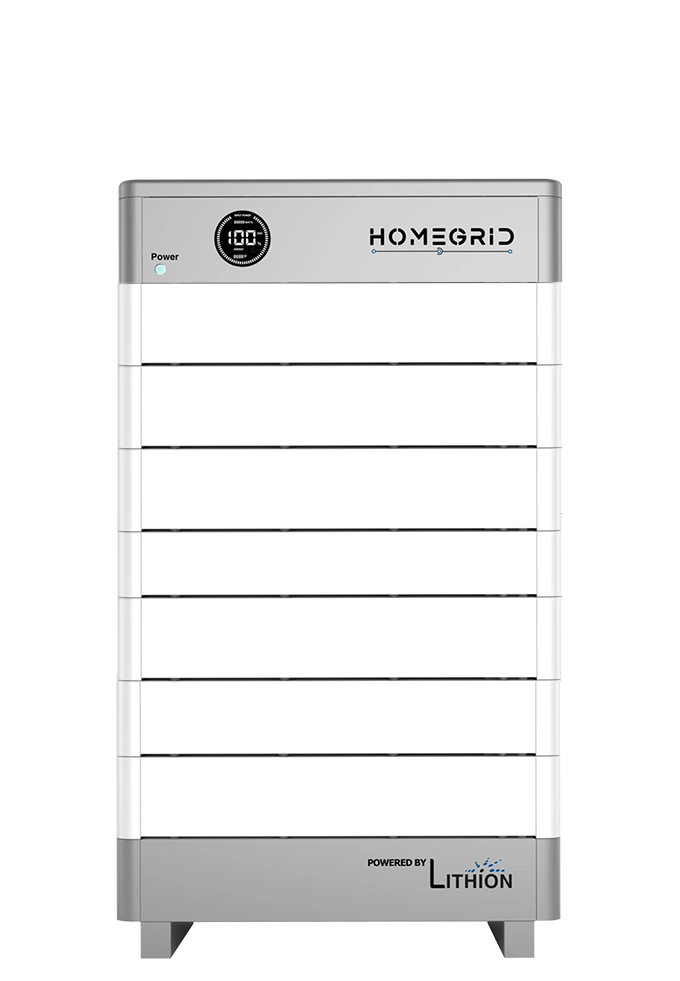

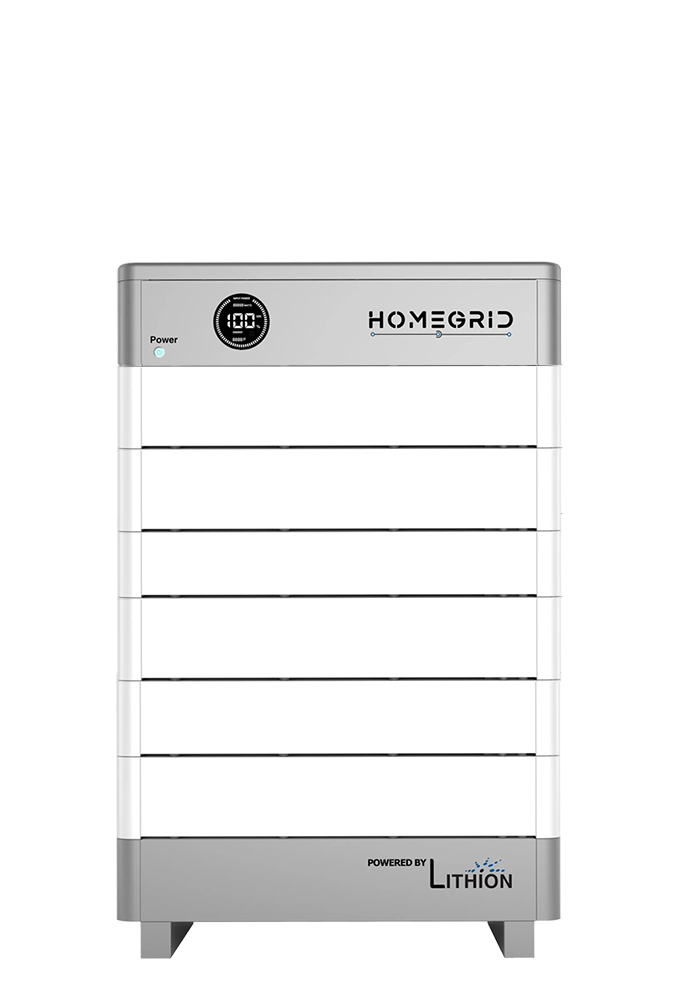

The Stack'd Series features a Lego-like modular design, with each white battery module providing 4.8 kWh of storage capacity. Each Stack can support 2-8 modules, allowing for easy customization and future expandability. The modular design enables installation in under 30 minutes and eliminates the need for complex wiring between modules. When it's time to upgrade the system, no additional conduit or wiring is required, making the Stack'd Series the easiest battery to expand as energy needs grow.

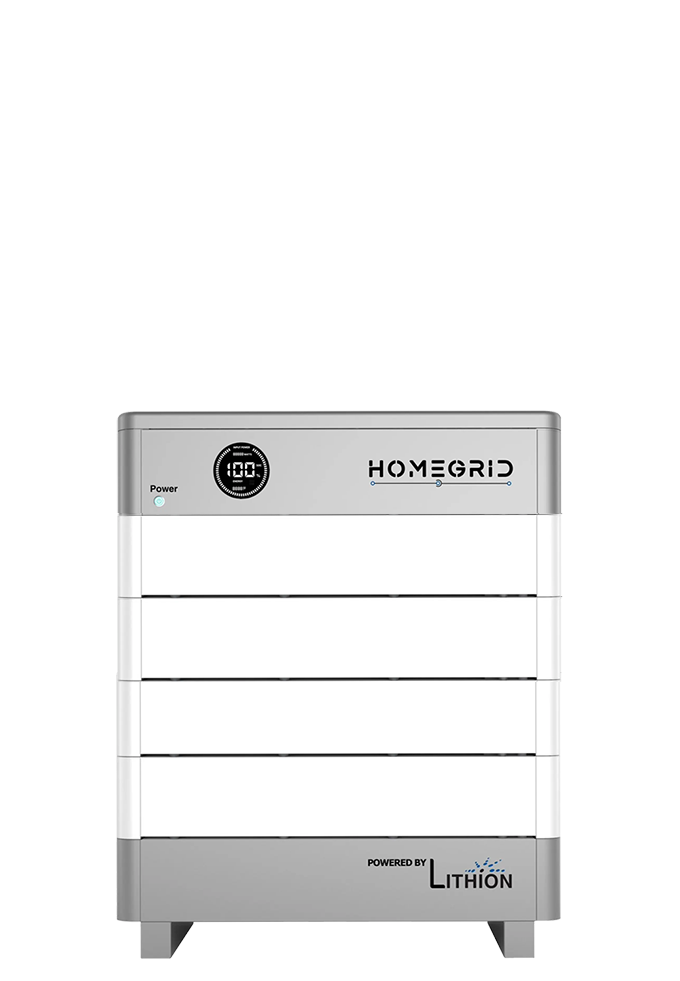

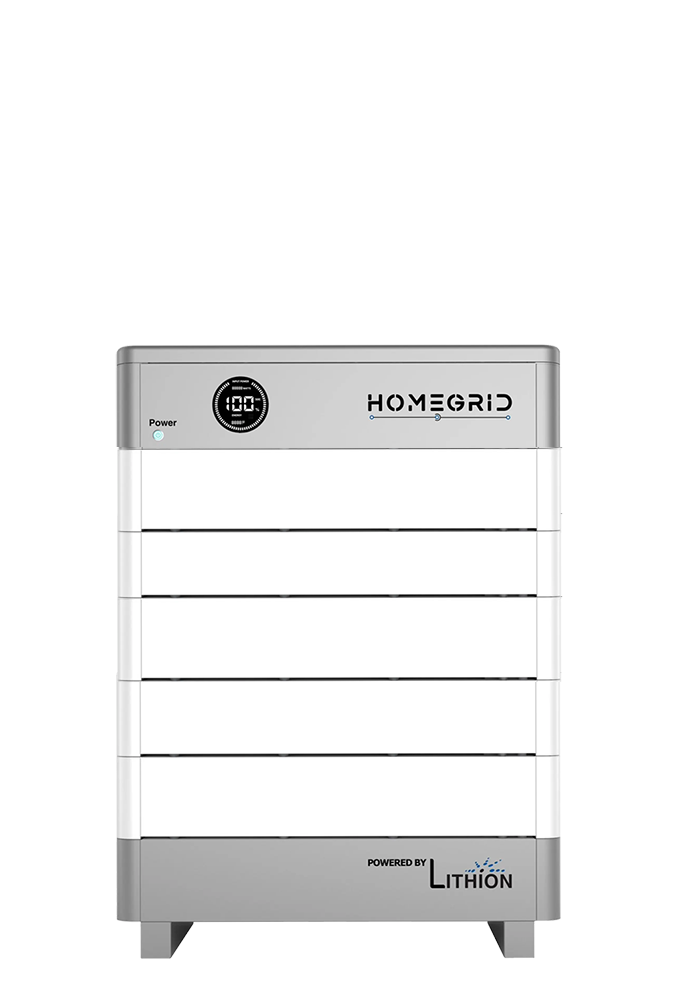

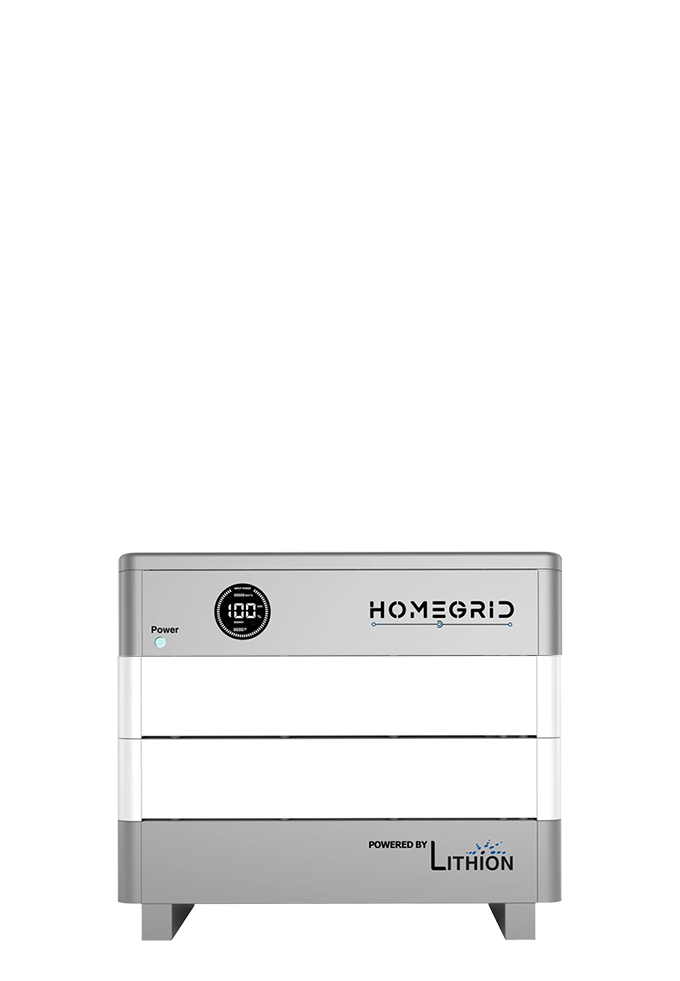

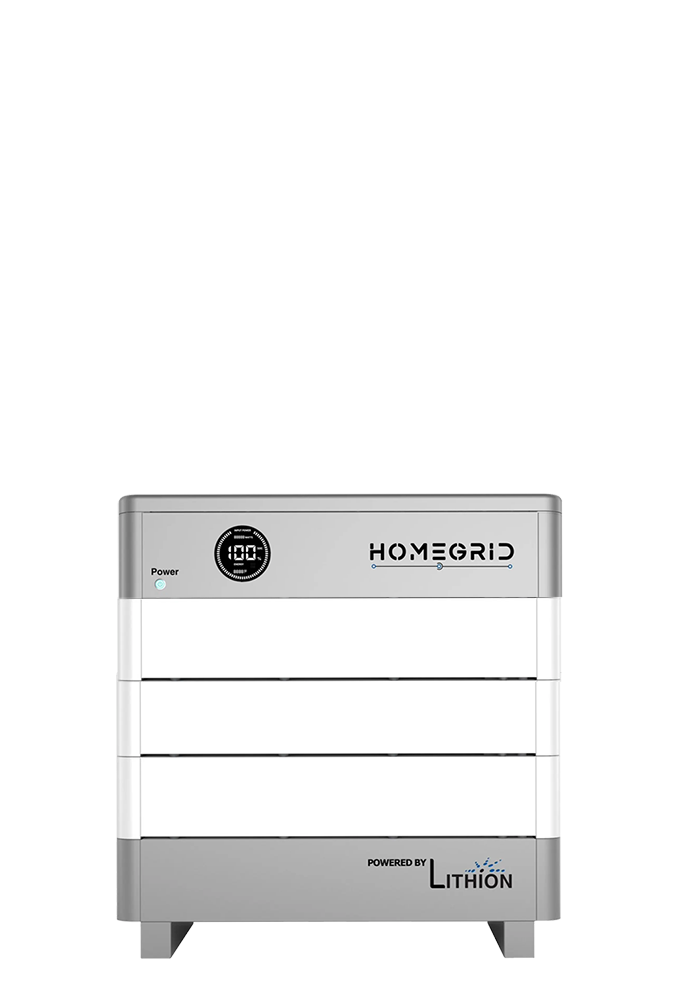

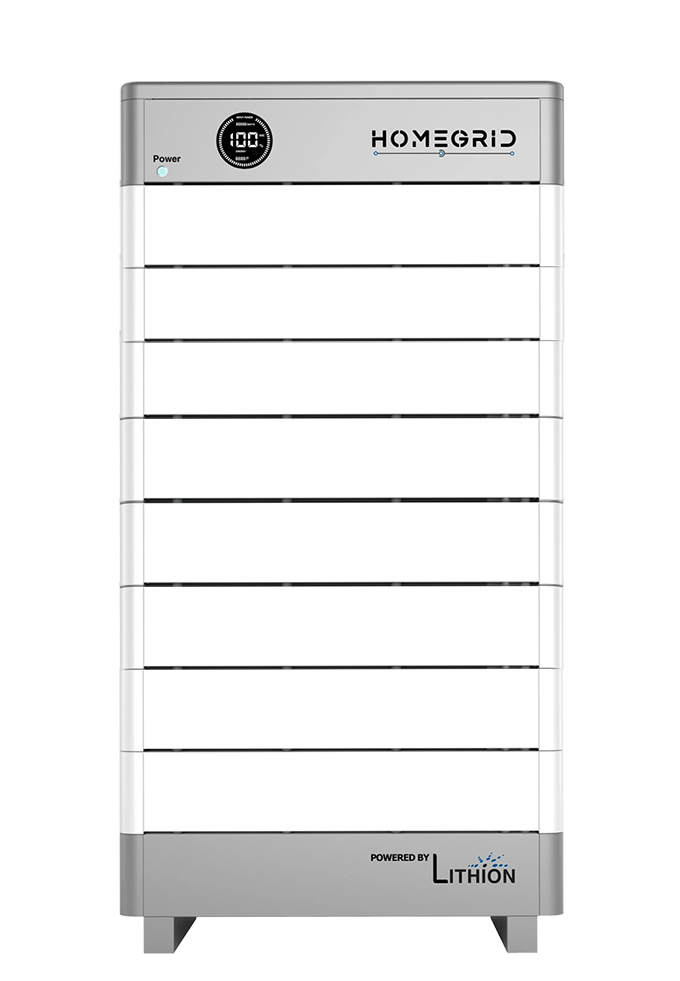

# of Modules	2	3	4	5	6	7	8
Capacity	9.6kWh	14.4kWh	19.2kWh	24kWh	28.8kWh	33.6kWh	38.4kWh
Power	8.6kW	12.9kW	14.4kW	14.4kW	14.4kW	14.4kW	14.4kW
Surge(10s)	14.4kW	14.4kW	24kW	24kW	24kW	24kW	24kW
Weight	304lbs / 138kg	412lbs / 187kg	520lbs / 236kg	628lbs / 285kg	736lbs / 334kg	844lbs / 383kg	952lbs / 432kg
Height	25.25in / 641.35mm	30.5in / 774.7mm	35.75in / 908.05mm	41in / 1041.4mm	46.25in / 1174.75mm	51.5in / 1308.1mm	56.75in / 1441.45mm

OPTIONS	Product Number

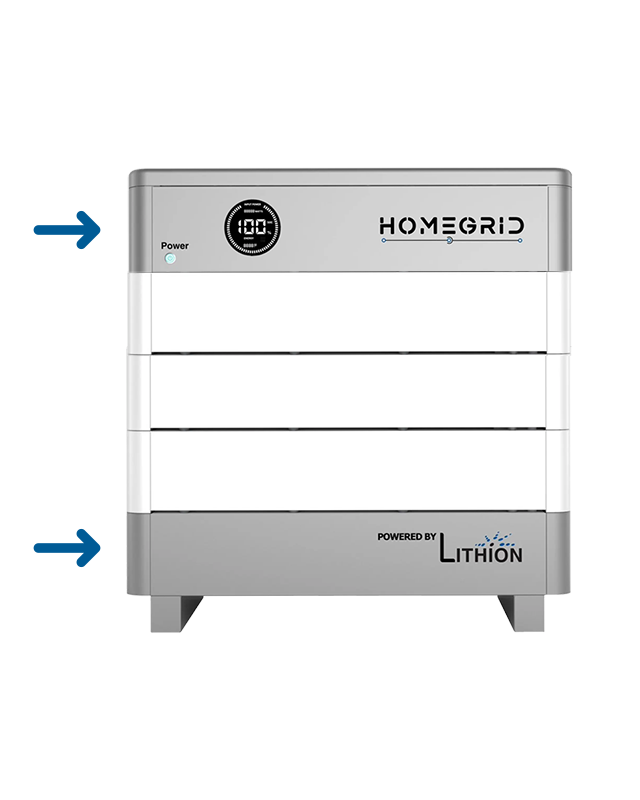

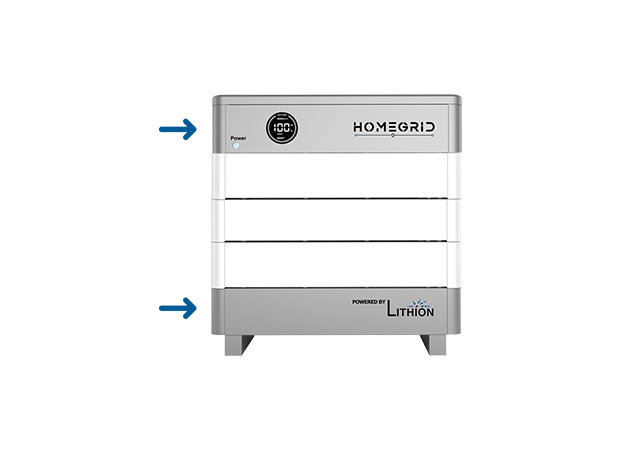

BMS/Base	HG-MC100-200M2

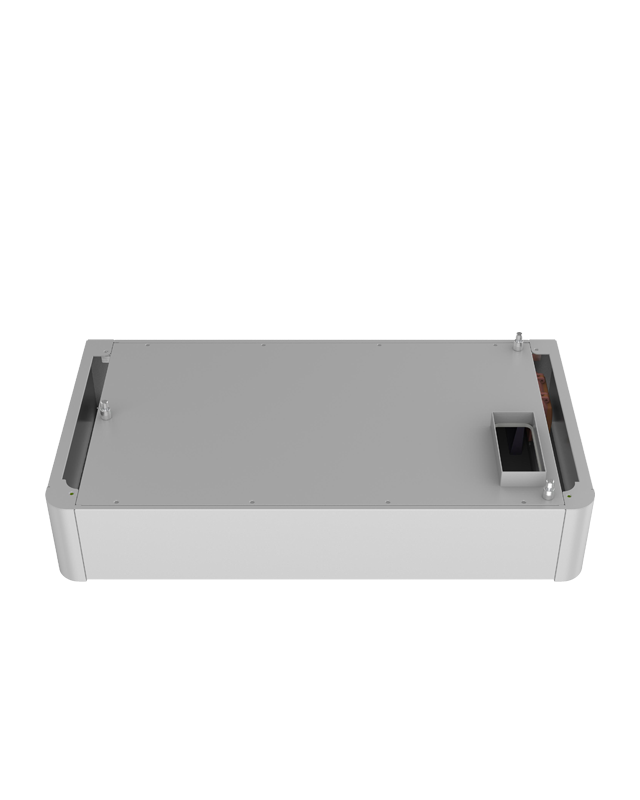

4.8kWh Module	HG-FS48100-15OSJ1
4.8kWh Module with Heating Feature	HG-FS48100-15OSJ1-H
Stack'd Series PDF Brochure

Stack'd Series Accessories

Homegrid Heated Module Option, Stacked Series

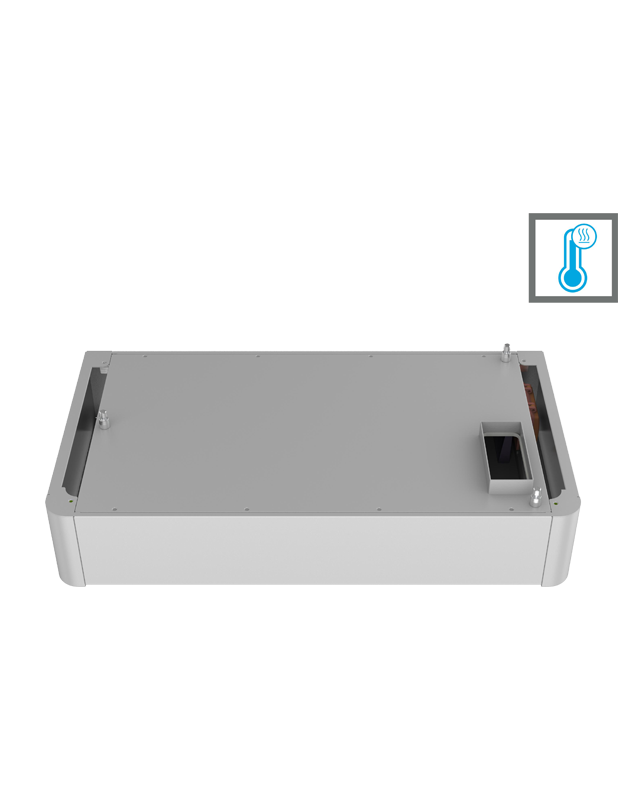

Heated Modules

HomeGrid offers heated battery modules for customers in colder climates, ensuring optimal performance year-round. These innovative modules automatically maintain batteries at ideal operating temperatures, preserving capacity and function even in the coldest conditions.

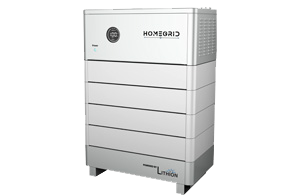

Homegrid High Voltage BMS, Stacked Series

HV BMS

The Stack'd Series High Voltage BMS allows pairing with HV inverters, offering an adjustable output of 260-400v. This unit provides the same benefits as the classic Stack'd Series battery but with higher output voltage. The HV BMS is available for purchase Q1 2024

HV BMS Specifications

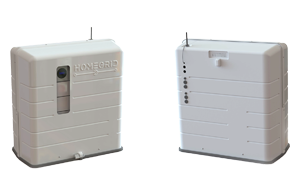

Outdoor Case

The IP65/NEMA3R rated Stack'd Series Outdoor Case is made from weatherable/UV-resistant ABS to protect the battery in direct weather. It features UV-resistant plexiglass, a water-proof vent for managing temperatures, mounting holes, and a padlock hole for security.

Outdoor Case Specifications

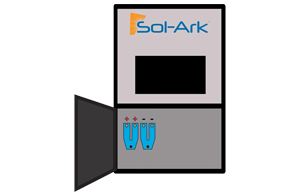

Homegrid Solark Busbar Pair Option, Stacked Series

Solark 15k Busbar Pair

About HomeGrid

HomeGrid, a subsidiary of Lithion, is committed to providing the best energy storage solutions in the industry. Their battery systems are renowned for their power, capability, and quality, positioning HomeGrid at the forefront of innovation in the energy storage sector. By utilizing Tier 1 prismatic lithium iron phosphate cells, HomeGrid ensures that their products are built to last and can support whole home microgrids. HomeGrid's mission is to design products with the right chemistry and specifications to accelerate the world's transition to independent and clean energy. By continually innovating and adapting to market demands, HomeGrid has introduced new product options such as an outdoor case, high-voltage options, and heated battery modules to offer greater flexibility for diverse environments.
