Sunny Boy SB 2500HF-US Inverter

Availability: Call For Availability


Sunny Boy 2500HF-US Features Overview:
  • Provides 2500W AC Maximum Output Power
  • Slim enclosure mounts in between wall studs
  • Integrated load-break rated lockable DC disconnect switch
  • Indoor and Outdoor rated
  • Reduced weight
  • Field-configurable for positive ground systems
  • OptiCool active temperature management
  • Modern graphic display
  • Bluetooth communication system
  • Sunny Boy known for PV inverter performance and reliabilty
  • 10 year standard warranty, 20 year power warranty

SMA Sunny Boy SB 2500HF-US Inverter

Double click on above image to view full picture

Zoom Out
Zoom In


Model Number SB 2500HF-US
AC Nominal Power (W) 2500.0
Peak Efficiency 0.955
CEC Weighted Efficiency 0.955
Weight (lbs) 50.0
Height (in) 28.6
Width (in) 13.7
Depth (in) 7.2

Manufacturer Specification Sheets

View FileSunny Boy HF-US Data Sheet    Size: (64.68 KB)


Sunny Boy 2500HF-US Inverter

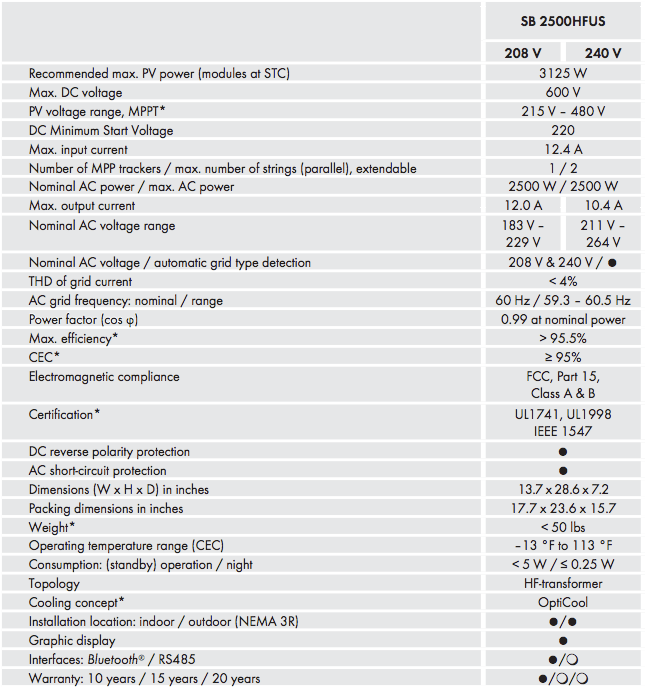

Sunny Boy 2500HF-US Inverter Specifications

SMA 2500HFUS Inverter Specifications>

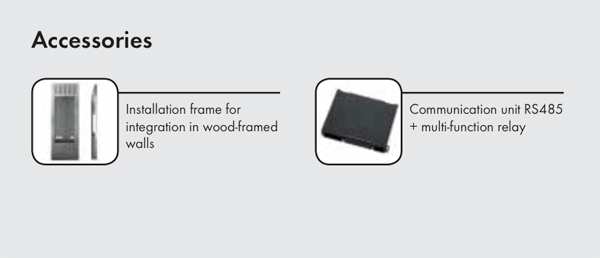

Sunny Boy 2500HF-US Inverter Accessories

HF-Series Accessories

Webbox Monitoring

Webbox Monitoring
