Morningstar Sunsaver SS-10-24V Charge Controller
Skip to the beginning of the images gallery

SunSaver

Dimensions: 6” x 2.2” x 1.3”. Units weigh 2 lbs. 5 year warranty.

Name Voltage
( volts )		 Amperage
( amps )		 LVD
SunSaver-10A, 24V
SS-10-24V 		24 10 NA

Morningstar Sunsaver SS-10-24V Charge Controller

SKU SS-10-24V
Morningstar


The Morningstar SunSaver SS-10-24 is a very reliable charge controller that uses the same battery charging algorithm as the ProStar.

Approved for Class 1 Div 2 applications.

The Morningstar SunSaver SS-10-24 Charge Controller offers many of the advantages of the ProStar for smaller systems, at a reduced cost. Constant voltage PWM charging is a proven advancement compared to the common on/off PV regulators. SunSavers are field-selectable for sealed or flooded batteries. A rugged anodized aluminum case and epoxy-encapsulated electronics ensure durability and longevity. A temperature compensation sensor in the charge control varies full charge voltage with temperature. They have LED charging and load control LVD (low voltage disconnect) indicators in LVD models.

Morningstar SunSaver charge controllers are Classified Class 1 Division 2 Group A-D Hazardous (C1 D2 - Class 1 Div. 2). These are certified for systems that are properly wired per Division 2 NEC approved wiring methods.

Attachments Details

Sunsaver Advantages

The SunSaver Charge Controller is the most advanced small PV charge controller available today.

Rated for 10 amps @ 24 volts, the SunSaver SS-10-24 is priced lower than competitive PV regulators. Although the SunSaver is affordable, it includes standard features and capabilities not found in any other small PV controller. These include:

Class 1 Division 2 Extremely High Reliability

  • Full, continuous current ratings at 60° ambient temperatures.
  • Advanced lightning and transient overvoltage protection.
  • Reverse polarity protection.
  • High quality surface-mount components.
  • Series switching design for improved safety and protection.

Outstanding PWM Battery Charge Control

  • Confirmed increase in battery capacities and operating life.
  • PWM Pulse charging for highest charge acceptance.
  • Standard temperature compensation.
  • Standard Sealed / Flooded battery select at the terminal.
  • Accuracy to millivolt levels.

sunsaver battery charger

Highest Levels of Quality

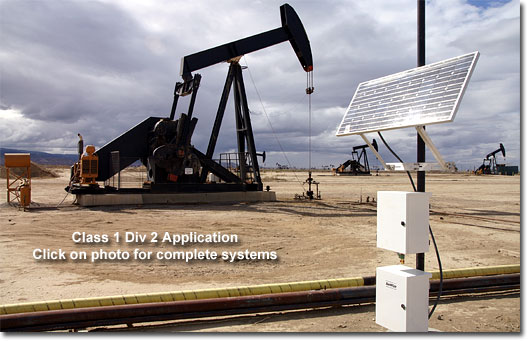

Complete Class 1 Division 2 solar systems available
