Model Number PLM-250M-60
STC Rating 250.0
PTC Rating 222.1
Open Circuit Voltage (V) 37.1
Short Circuit Current (A) 8.97
Frame Color Black
Origin USA/China
Power % ± 0/2
(W/ft²) 14.16
Area (ft²) 211.8
Weight (lbs) 46.0
Length (in) 65.00
Width (in) 39.10
Height (in) 1.80

Perlight Solar PLM-250M-60 Solar Panels

SKU PLM-250M-60
  • High-efficiency monocrystalline solar cells. Produces high maximum power output even under low light conditions
  • Advanced low iron tempered glass. Anti-reflection coatings and high transmission rate increase power output of the module
  • High quality EVA and TPT for enhanced durability and weatherproofing
  • 25 year limited warranty: 10 years materials & workmanship; 12 years 90% max power; and 25 years 80% max power
  • IP 65 rated junction box with MC 4 connectors
  • IEC 61215 qualified for extended 2400 Pa wind loads, 5400 Pa snow loads as well as hailstone impacts
  • Positive tolerance modules with +5 W
  • High strength aluminum frame. Withstands heavy loads and allows for easy installation
  • Certifications include ISO 9001 & 14001, UL 1703, CEC for California, FSEC for Florida, TUV, CE, VDE, MCS and IEC 61215 & IEC 61730

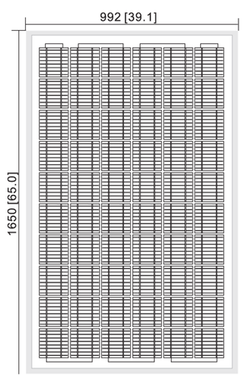

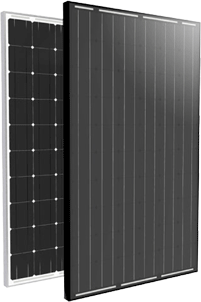

Perlight Solar PLM-250M-60 Solar Module Diagram              Perlight Solar PLM-250M-60 Solar Module Dimensions

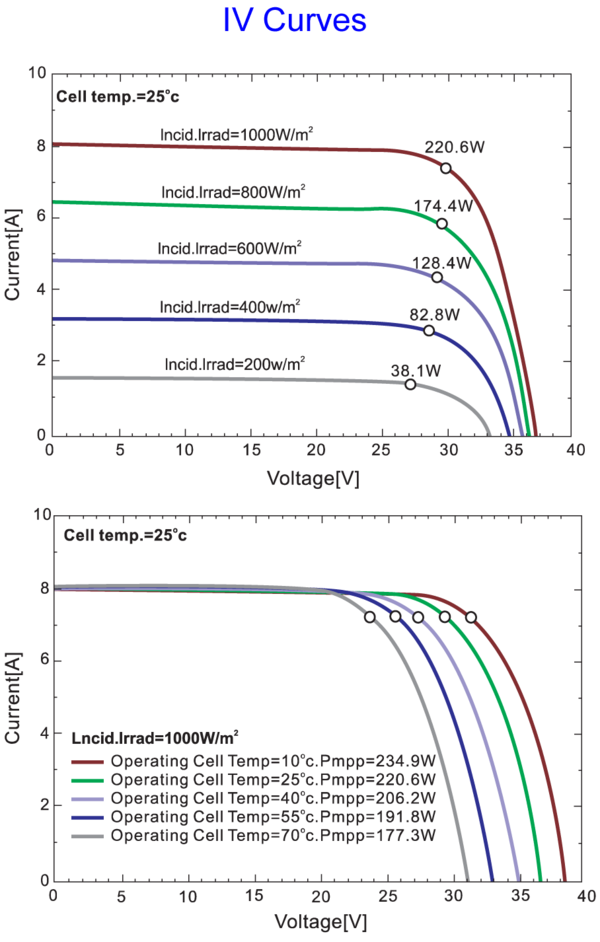

Perlight Solar PLM-250M-60 IV Curves

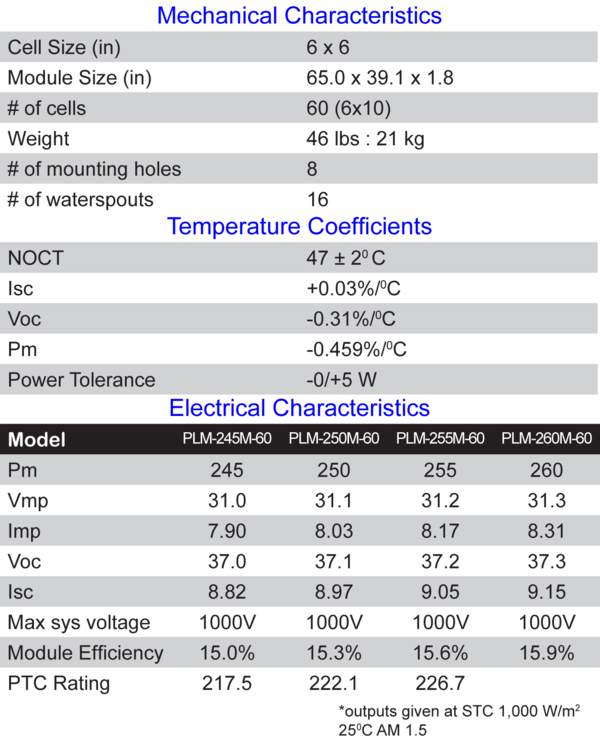

Perlight Solar PLM-250M-60 Electrical & Mechanical Characteristics
