Enphase IQ Envoy

Provides Enphase IQ microinverter system insights with Enlighten monitoring software.

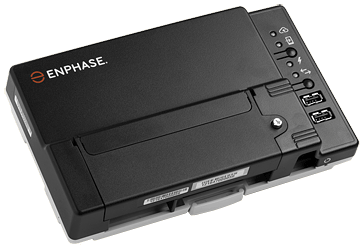

Enphase IQ Envoy for Microinverters
Enphase
Enphase IQ Envoy with Enlighten on iPad
Enphase IQ Envoy communicates with MyEnlighten for PV system details.
Enphase IQ Envoy review

The Enphase IQ Envoy™ communications gateway delivers solar production and energy consumption data to Enphase Enlighten™ monitoring and analysis software for comprehensive, remote maintenance and management of the Enphase IQ System. With integrated revenue grade production metering and optional consumption monitoring, the Envoy IQ is the platform for total energy management and integrates with the Enphase IQ Battery™.

Smart
• Enables web-based monitoring and control
• Bidirectional communications for remote upgrades

Simple
• Easy system configuration using Enphase Installer Toolkit™ mobile app
• Flexible networking with Wi-Fi, Ethernet, or cellular

Reliable
• Designed for installation indoors or outdoors
• Five-year warranty

IQ ENVOY SPECIFICATIONS
Enphase Model Number ENV-IQ-AM1-240
Enphase IQ Envoy communications gateway with integrated revenue grade PV production metering (ANSI C12.20 +/- 0.5%) and optional consumption monitoring (+/- 2.5%).
Dimensions 8.4" x 5.0" x 1.8"
Weight 17.6 oz.
Enclosure Rating IP30 for installation indoors or in an NRTL-certified, NEMA type 3R enclosure.
Ambient Temperature Range -40° F to 149° F
-40° F to 115° F if installed in an enclosure
Compliance UL 916
CAN/CSA C22.2 No. 61010-1
47 CFR, Part 15, Class B, ICES 003
IEC/EN 61010-1:2010,
EN50065-1, EN61000-4-5, EN61000-6-1, EN61000-6-2
Metering: ANSI C12.20 accuracy class 0.5

Designed for Enphase IQ Microinverter solar panel systems.

The IQ Envoy is available pre-installed in the
Enphase IQ Combiner w/ IQ Envoy.

Enphase IQ Microinverter Compatible

• Communicates with IQ System Microinverters
• Consumption metering capable for total energy insight
• Revenue grade accurate, ANSI C12.20 compliant production meter
• Bi-directional communications helps the IQ System adapt to future requirements
• Flexible networking options with integrated Wi-Fi
• 3G and 4G cellular options
• Compatible with the lightweight and easy to use two-wire, double-insulated Enphase Q Cable

View FileEnphase IQ Envoy Datasheet

Contact us toll-free: (877) 297-0014.





Enphase IQ Envoy Review

Enphase Enlighten with Envoy
IQ Envoy may be accessed via MyEnlighten with a variety of devices.

Enphase IQ Envoy, your gateway to a connected home.

The Enphase IQ Envoy, the brains of the Enphase Home Energy Solution, collects real-time data from microinverters and delivers remote updates back to them. The Envoy keeps your entire system in constant communication. It seamlessly integrates with MyEnlighten software that is compatible with many popular devices.

The Envoy uses its intelligence to make life simpler for both installers and system owners, with in-depth monitoring, energy usage insights, remote update capabilities and load management. The Envoy connects each component to create one seamless home energy solution -- smart, simple, and powerful.

Enphase Envoy C for Commercial Solar Systems

Envoy-C

The Enphase Envoy Communications Gateway provides network access to the solar array enabling comprehensive monitoring and management of an Enphase system.

Envoy C is designed specifically for the
C250 Commercial Microinverter System.

A connected system is a smarter system.

Thanks to the IQ Envoy, Enphase brings you ease, insights, with reliable solar energy. It features the intelligence to adapt to changing grid requirements via automatic remote updates that Envoy downloads and pushes out to your microinverters.

Enphase Energy Storage Batteries
IQ Envoy is compatible with Enphase Energy Storage System Batteries.

Bi-directional communications

The Envoy delivers performance data from your microinverters to the Web, and carries system updates from the Web to your microinverters. Two directions, optimal benefits.

In-depth monitoring

The Envoy brings you the real-time, module-level performance data that makes it easy to monitor your system or fleet from any web-connected device.

Remote problem-solving

The IQ Envoy lets you pinpoint performance issues instantly and resolve them remotely, before they get in the way of system performance.

Enphase IQ Envoy Microinverter solar system


Complete Enphase Microinverter solar systems and quantity discounts available.

Contact us toll-free: (877) 297-0014



Contractor Discounts Available  •  Enphase Microinverters



  Popular inverters we supply:

solar inverters


Contact us for sales, low wholesale prices and expert reviews for the Enphase IQ Envoy.
