Solar System Battery Backup Pricing | On-Grid and Off-Grid

Solar System Battery Backup Pricing for Grid-Tie and Off-Grid Systems

solar system battery backup

Use your existing solar grid-tie system during emergency power outages with these solar battery backup systems.
Build new on-grid or off-grid battery backup systems with auto-generator assist available.
Call toll-free (877) 297-0014 for design assistance, free quote, contractor & dealer discounts

Part NumberSystem DescriptionContinuous kW RatingAC Voltage/
# of Phases
List PriceData Sheets
MAGNUM PAE INVERTER OFF-GRID OR GRID-CONNECTED/BATTERY BACKUP SYSTEMS - click for more info
SES-MI-4.4-48-240

Magnum 4448X1-1P 4.4 kW Battery Based Inverter System,240VAC/1PH

4.4kW

240VAC
/1PH

$3,688 Magnum PAE
SES-MI-8.8-48-240 Magnum 4448X2-1P 8.8 kW Battery Based Inverter System, 240VAC/1PH 8.8kW 240VAC
/1PH
$6,562 Magnum PAE
Included with System: PAE Inverter, Midnite DC source/load center, battery monitoring kit, remote control panel, schematics
SCHNEIDER XW INVERTER OFF-GRID OR GRID-CONNECTED/BATTERY BACKUP SYSTEMS - click for more info
SES-XW-6-48-240 Schneider 6048X1-1P 6 kW Battery Based Inverter System, 240VAC/1PH 6 kW 240VAC/1PH $7,295 Schneider XW
SES-XW-12-48-240 Schneider 6048X2-1P 12 kW Battery Based Inverter System, 240VAC/1PH 12 kW 240VAC/1PH $12,035 Schneider XW
SES-XW-18-48-240 Schneider 6048X3-1P 18 kW Battery Based Inverter System, 240VAC/1PH 18 kW 240VAC/1PH $18,379 Schneider XW
Included with System: XW Inverter, Distribution Panel, Control Panel, Gen Start Control, Comm Gateway, schematics
SMA SUNNY ISLAND INVERTER OFF-GRID OR GRID-CONNECTED/BATTERY BACKUP SYSTEMS - click for more info
SES-SI-5-48-240 Sunny Island 5048X1-1P 5 kW Battery Based Inverter System, 240VAC/1PH 5 kW 240VAC/1PH $7,049 Sunny Island
SES-SI-10-48-240 Sunny Island 5048X2-1P 10 kW Battery Based Inverter System, 240VAC/1PH 10 kW 240VAC/1PH $11,837 Sunny Island
SES-SI-15-48-240 Sunny Island 5048X3-1P 15 kW Battery Based Inverter System, 240VAC/1PH 15 kW 240VAC/1PH $17,091 Sunny Island
SES-SI-20-48-240 Sunny Island 5048X4-1P 20 kW Battery Based Inverter System, 240VAC/1PH 20 kW 240VAC/1PH $22,012 Sunny Island
SES-SI-30-48-240 Sunny Island 5048X6-1P 30 kW Battery Based Inverter System, 240VAC/1PH 30 kW 240VAC/1PH $52,788 Sunny Island
SES-SI-15-48-208 Sunny Island 5048X3-3P 15 kW Battery Based Inverter System, 208VAC/3PH 15 kW 208VAC/3PH $37,905 Sunny Island
SES-SI-30-48-208 Sunny Island 5048X6-3P 30 kW Battery Based Inverter System, 208VAC/3PH 30 kW 208VAC/3PH $51,855 Sunny Island
SES-SI-45-48-208 Sunny Island 5048X9-3P 45 kW Battery Based Inverter System, 208VAC/3PH 45 kW 208VAC/3PH $66,485 Sunny Island
Included with System: SI Inverter, Midnite DC source/load center, schematics



Provide your own 48 Volt Battery bank or choose from one of ours below:

SES COMPLETE 48 VOLT BATTERY BANK SYSTEMS WITH ENCLOSURES AND CABLING
Part Number System Description Battery Capacity Battery Voltage List Price Battery Information
SES-BB48-9KWH Sealed AGM Battery, 9 kWhr w/Enclosure 9 kWhr 48 VDC $3,695.82 Battery Info
SES-BB48-18KWH Sealed AGM Battery, 18 kWhr w/Enclosure 18 kWhr 48 VDC $6,015.10 Battery Info
SES-BB48-26KWH Sealed AGM Battery, 26 kWhr AC Backupw/Seismic Zone 4 Racking, 48 VDC 26 kWhr 48 VDC $9,362.14 Battery Info
SES-BB48-39KWH Sealed AGM Battery, 39 kWhr AC Backupw/Seismic Zone 4 Racking, 48 VDC 39 kWhr 48 VDC $14,950.58 Battery Info
SES-BB48-52KWH Sealed AGM Battery, 52 kWhr AC Backupw/Seismic Zone 4 Racking, 48 VDC 52 kWhr 48 VDC $17,482.90 Battery Info
SES-BB48-69KWH Sealed AGM Battery, 69 kWhr AC Backupw/Seismic Zone 4 Racking, 48 VDC 69 kWhr 48 VDC $21,733.26 Battery Info
Notes:
  1. 9-18 kWhr Battery banks include a two shelf battery rack with covers, indoor only, cables inluded
  2. 26-69 kWhr include seismic Zone 4 racking and battery terminal covers, bolts to thick concrete floor

SES Project Highlight-Critical power for US Department of Defense

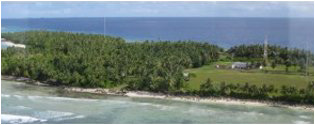

Solar Electric Supply designed and supplied this 30 kW Sunny Island system to the US Army on the remote Bikini Atoll Islands in 2011. It provides critical power for satellite communications, a school, and base power. The AC coupled system uses a four Sunny Boy 5000US inverters and PV arrays distributed on the base that feed the six Sunny Island inverters for 30 kW 208 VAC three phase power. Dual 30 kW diesel gensets are controlled by the Sunny Islands and Multicluster for backup and load sharing. A parallel Deka sealed AGM battery bank rated at 130 kWhr @ 48 VDC provides backup power at night and during cloudy weather.

Parallel Deka Unigy II sealed battery banks feed the Sunny Island system 20 kW PV system feeds the Sunny Island system US Army solar powered military base on remote island

Magnum PAE Solar Battery Backup Inverter Systems

Prewired Magnum 4048-PAE Inverter System Easily monitor your Magnum system with this remote control Magnum PAE inverter, AC/DC connections
Features
  • Our lowest cost grid connected battery backup system
  • Made in the USA
  • Easy to install and program
  • 50' remote Control Panel for easy monitoring
  • Compact Size
  • 240V Inverter, no transformer required
  • Auto genstart control for backup generators
  • Great for off grid remote systems also
Downloads

Magnum PAE Inverter Spec Sheet
Midnite Solar DC Source/Load Center



Example of Magnum Inverter Grid Connected Solar Battery Backup & Generator Installation:

Example of Magnum Inverter Grid Connected Solar Battery Backup & Generator  Installation
Services available from Solar Electric Supply:
  • Onsite Installation Support Service
  • Complete telephone support for installations
  • Site specific wiring diagrams





Schneider XW Solar Battery Backup Inverter Systems

Installed Schneider XW Inverter complete system with battery backup Schneider XW-6048 Inverter with Control panel
XW Inverter with MPPT Controller
Features
  • Highest surge capacity for those bigger loads
  • Add battery backup to any existing grid tie inverter system
  • Can be used as primary grid tie inverter (Need MPPT Controller)
  • Easy to program, includes system & genstart controller
  • Remote/PC communication via Comm Gateway
  • Backed by Schneider, a $20B company (Square D)
  • Use XW-MPPT Controllers for stand alone grid tie or off grid
  • True sine wave provides clean output for sensitive electronics

Downloads



Example of Schneider XW Solar Grid Tie with Battery Backup AC Coupled System:

Example of Schneider XW AC Coupled System with grid tie inverter and battery backup




Sunny Island Solar Battery Backup Inverter Systems

Three phase power supplied by Sunny Island and MultiCluster System
Sunny Island internal components and main wiring connections

Features

  • Works best with SMA Sunny Boy Inverters for AC Coupling & battery charging
  • Ideal for larger remote power systems, telecom, village-island power
  • Fully programmable, auto genstart capability
  • Remote/PC communication via Web Box
  • Made in the USA, Qualifies for ARRA
  • 6 kW system includes 240 VAC Autotransformer
  • Use up to 5 kW PV per 6 kW Sunny Island
  • 3 Phase Systems include the SMA MultiCluster Box

Downloads

Sunny Island Inverters
Sunny Island Multi-Cluster for Three Phase
Sunny Island Off Grid Catalog

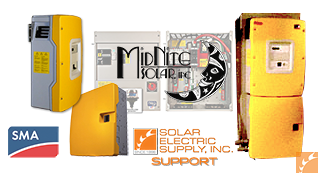

The Sunny Island systems are easy to wire with our Source/Load Center

DC Source/Load Center included with SES SMA system



SMA Sunny Island AC Coupled Grid Connected and Off Grid Solar Battery Backup Systems Example:

Example of SMA Sunny Island AC Coupled System

Example of three phase commercial AC coupled island/village power system

Call us at 877-297-0014 for Technical Assistance or a Free Quote
