Solar System Design

Solar System Design

We offer complete PV system design and permit plan sets for our solar systems.

solar system design

SES is a wholesale supplier and sysstem integrator providing technical support and solar system design services for our systems from our experienced partners. We do not provide energy production estimates or economic payback analyses for our projects. We can refer you to organizations that provide those services. We supply contractors and capable DIY self installers with competitively priced systems across the USA from our warehouses located in California, NJ, PA and TX.

There are many ways we can provide residential system designs for you along with our complete systems. Unfortunately we do not provide design services alone.


Photovoltaic System Wiring Schematics

Electrical drawings, standard racking engineering, data sheets and installation manuals are provided free with our complete systems. You are responsible for site plans, solar module placement drawings, safety signage, permitting, and any local engineering requirements. Great for experienced contractors or areas where the permitting requirements are minimal.

  • Provided free with our residential grid tie and battery backup systems
  • Wiring schematic with conductor and wire schedule
  • Can be provided with your Company logo and/or site address
solar system line diagram
PV system design wiring

Solar System Design
Line Diagram Example

solar system wiring schematic line diagram

Permit Plan Sets

Available from our design partners

We can assist with Permit Plan Sets for any state in the country from our experienced partners. These Full Permit Plan Sets make it easier for you to obtain a permit for your solar system. These Permit Plan Sets are recommended for new contractors and DIY installers. Very reasonable fees are quoted based on your project type.


permit approval

Roof-Mounted Solar Panel Permit Plan Sets

Full Permit Plan Sets for any state include:

  • Project material list
  • Property map
  • Solar module roof layout
  • Rafter and solar mounting stantion detail
  • Wiring schematic with conductor and wire schedule
  • Safety signage
  • Data sheets
  • Racking Manufacturer Engineering Documents and Installation Guide
PV roof mount beam spacing design
PV utility intertie connection review
ground mounted solar system

Rooftop Solar System Design

roof-mounted solar system permit plan design

Contact us toll-free: (877) 297-0014
for expert assistance.


Ground-Mounted Solar Module Permit Plan Sets

Full Permit Plan Sets for any state include:

  • Project material list
  • Property map showing solar array location and conduit run to main panel
  • Ground mount foundation detail with hole foundation diameters and spacing
  • Rafter and solar mounting stantion detail
  • Wiring schematic with conductor and wire schedule
  • Safety signage
  • Data sheets
  • Racking Manufacturer Engineering Documents and Installation Guide

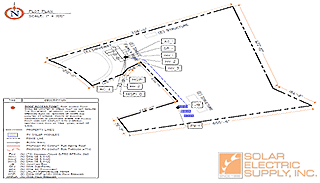

geround mount PV layout

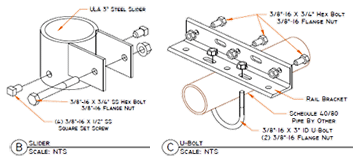

ground pole mount hardware
ground mounted solar system

Ground-Mount Solar System Design

ground-mounted solar system permit plan design

Contact us toll-free: (877) 297-0014
for expert assistance.

Top-of-Pole PV Module Permit Plan Sets

Full Permit Plan Sets for any state include:

  • Project material list
  • Property map showing solar array location and conduit run to main panel
  • Top-of-pole mount foundation detail with hole foundation diameters and spacing
  • Wiring schematic with conductor and wire schedule
  • Safety signage
  • Data sheets
  • Mounting Structure MFG Engineering Documents & Installation Guide
PV roof mount beam spacing design
pole mount hole foundation diameter
top of pole mounted solar system

Top-of-Pole Mounted Solar System Design

ground-mounted solar system permit plan design

Contact us toll-free: (877) 297-0014
for expert assistance.


Battery Based Systems - Energy Storage Systems

SES is a major wholesale distributor for the largest battery and energy storage system manufacturers in the world.

We have traditional sealed AGM and Gel Lead Acid stationary batteries with racking or outdoor enclosures. We also have advanced battery technologies such as Lithium Ion, Aqueous Ion and more. Applications include remote off grid homes, utility switchgear systems, emergency long term disaster backup power, emergency short term backup power, self consumption systems with no sell back, time of use or peak load shaving. Contact us for a recommendation on the proper storage technology for your next project.

Battery Based Systems / Energy Storage Systems Permit Plan Sets

Project Load review, technology recommendation, initial quotation provided by SES


Full Permit Plan sets in every state, include:

  • Project Material List
  • Property Map showing solar array location and conduit run to main panel
  • Solar array structural detail
  • Battery/Energy Storage System wiring schematic with conductor and wire schedule
  • Safety signage
  • Data sheets
  • Mfg Engineering Documents and/or Installation Guide
  • Technical Support

Energy Storage System Design

ground-mounted solar system permit plan design

Contact us toll-free: (877) 297-0014
for expert assistance.
