Jinko Solar Bificial 430-450W Half Cell Image
Jinko Solar Model Number JKM430M-72HLMV-TV
STC Rating 430.0 Watts
PTC Rating No PTC
5% Bifacial Gain 452Wp
Module Efficiency: 20.76%
15% Bifacial Gain 495Wp
Module Efficiency: 22.73%
25% Bifacial Gain 538Wp
Module Efficiency: 24.70%
Open Circuit Voltage (Voc) 48.76 Volts
Short Circuit Current (Isc) 11.28 Amps
Frame Color Silver
Origin USA
Power Tolerance -0 / +3%
Module Efficiency 19.80%
Length 82.50 in
Width 40.91 in
Area 23.4 ft²
Weight 56.15 lbs.

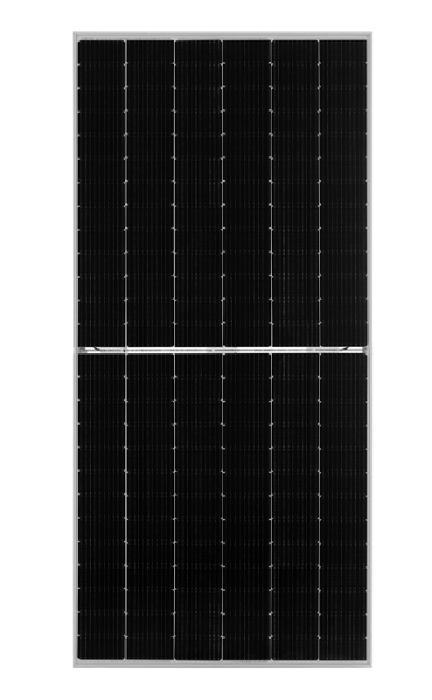

Jinko Eagle 72 JKM430M-72HLMV-TV G4b 430W Bifacial Solar Panel

Jinko Solar: Building Your Trust In Solar.

Jinko Eagle 72 JKM430M-72HLMV-TV G4b 430W

Jinko Eagle 72 solar panel frame

The EAGLE 72HM G4B 430W solar panel by Jinko Solar features multi-busbar half cell technology and high-efficiency half cut solar cells that deliver high power in a small footprint. The bifacial cell architecture allows for backside bonus and increased lifetime power yield. The light-weight design, with the use of a transparent backsheet, enables easy installation and low BOS cost. This solar panel is also designed to be shade tolerant with a twin array design for continued performance even with shading from trees or debris.

Certified to withstand various harsh environments including humidity, heat, rain, marine environments, wind, hailstorms, and packed snow, this panel is protected against all elements.

Jinko Eagle JKM430M-72HLMV-TV Benefits

The JKM430M-72HLMV-TV is suitable for commercial rooftop and ground mounted solar systems.

  • 144 high-performance Diamond 5-busbar mono PERC half-cells
  • UL and IEC 1500V certified; lowers BOS costs and yields better LCOE
  • Reinforced cells prevent PID
  • Excellent performance in low-light environments
  • Certified for high snow and wind loads

Bifacial Half Cell Modules

half-cut Bifacial Diamond solar cells

This cutting-edge module is designed to maximize energy production with its unique bifacial technology, allowing it to harness power from both the front and back of the panel. This means that it can capture sunlight reflected off surfaces like rooftops, ground, and water, increasing its energy output even further. Upgrade to the Eagle 72 JKM430M G4b Bifacial Solar Panel and experience the most advanced solar technology available today.

JKM430M-72HLMV-TV GB4 Warranty

Jinko Eagle G4b Certifications

30 Year Linear Power Warranty

Jinko Solar EAGLE 72HM G4b Certifications

Jinko EAGLE 72HM G4b Certifications

ISO9001:2015 Quality Standards, ISO14001:2015 Environmental Standards, IEC61215, IEC61730 certified products, ISO45001:2018 Occupational Health & Safety Standards, UL61730 certified products.

Jinko Eagle 72 G4B 430W Bifacial Solar Module Review

Jinko Eagle Flys logo

The Eagle 72HM G4b 430W Solar Panel has a light-weight design with a transparent backsheet that makes for easy installation and low BOS costs, while its twin array design ensures continued performance even with shading. Certified to withstand harsh environments, including humidity, heat, rain, marine conditions, wind, hailstorms, and packed snow, this solar panel is a smart investment for your energy future. Its automated manufacturing process utilizing artificial intelligence and tight controls on quality ensure reliable and sustainable energy for years to come. Check out the video below to learn more about the Jinko manufacturing process and much more.

diamond cell

Diamond Cell Technology

Uniquely designed high performance 5 busbar mono PERC half cell.

high voltage 1500V

High Voltage 1500V

UL and IEC 1500V certified; lowers BOS costs and yields better LCOE.

higher module power

Higher Module Power

Decrease in current loss yields higher module efficiency.

shade tolerant

Shade Tolerance

More shade tolerance due to twin arrays.

PID Free


Reinforced cell prevents potential induced degradation.

high snow and wind load

Strength & Durability

Certified for high snow (5400Pa) and wind (2400 Pa) loads.

The Jinko Solar Difference

Jinko Solar Building Your Trust in Solar

An ideal solar panel manufacturer offers three key attributes: quality products, operational efficiency, and an unconditional commitment to its customers. Many manufacturers today offer one or two of these advantages; only JinkoSolar provides the whole package.

Jinko Solar has state-of-the-art, modern manufacturing facilities in Jacksonville, Florida and Penang, Malaysia that produce dependable, world-class solar panels with an unblemished quality record for the U.S. market. Jinko also has a near-perfect, on-time delivery rate, and the management resolve to remain a committed partner to their customers over the entire 25-year lifespan of all solar projects. Simply put, Jinko Solar always keeps their commitments.

Different solar panels, PV mount & inverter available at low wholesale prices.


Contact us toll-free: (877) 297-0014 - All Jinko Solar systems can be custom designed.

Commercial Solar Systems  ·  Contractor Discounts Available  ·  Jinko Solar Panels


Popular inverters we supply:

solar inverters

Contact us for sales, latest low price and expert assistance with the Jinko Eagle 72 G4b solar panel.
