|Type||HIT Bifacial Monocrystalline|
|Connection||39.4" No. 12 AWG MC3 Cable|
|Frame||Black anodized aluminum with tempered glass|
|Warranty||2 Years Workmanship|

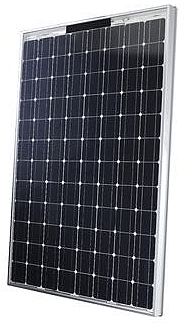

Sanyo 195 Watt Solar Panel HIP-195DA3
- 195-249 Watt Peak Output
- Cell Efficiency: 19.3%
- Module Efficiency: Depends on mounting environment
- 2 Year Workmanship Warranty, 20 Year Power Output
- Monocrystalline cells for high-efficiency and uniform dark color.
- Perfect for high-power grid-tie when limited on space
- 20 Years Power Output
HIT Double bifacial solar panels are World leaders in sunlight conversion efficiency, helping customers to enjoy the maximum power per square foot from available space.
SANYO guarantees customers will receive 100% of the panel’s rated power (or more) at the time of purchase, enabling owners to generate more kWh per rated watt.
The back face of a HIT Double panel generates electricity from ambient light reflected off surrounding surfaces, and combines with power from the front face of the panel. Depending upon system design and site albedo, this results in up to 30% higher power generation (more kWh) per square foot.
Architectural, Awnings, Balconies, Bus Shelters, Walkway Covers, Deck & Porch Coverings, Canopies, Carports, Trellises, Fences, Facades, Siding, Trellises, Tracking Systems, BIPV, Ground Mount, Roof Mount, Skylights, and More!
HIT bifacial solar cells are hybrids of single crystalline silicon surrounded by ultra-thin amorphous silicon layers, available solely from SANYO.
As temperatures rise, HIT Double solar panels produce more electricity than conventional solar panels at the same temperature, due to their low temperature coefficient.
SANYO silicon wafers are made in California USA, and assembled in Mexico at SANYO’s certified factory. ISO 9001 (quality), 14001 (environment), and 18001 (safety).
HIT Double panels operate silently and have no moving parts. A double glass structure allows some sunlight to penetrate portions of the panel, creating brilliant light and shadows for aesthetic and architectural applications. HIT Double panels are perfect for areas with performance-based incentives and tradable energy credits.
SANYO silicon wafers located inside HIT solar panels are made in California, USA, and the panels are assembled in an ISO 9001 (quality), 14001 (environment), and 18001 (safety) certified factory. The panels have a Limited 20-Year Power Output and 5-Year Product Workmanship Warranty.
for Heterojunction with Intrisic Thin Layer. Supported by the New
Energy and Industrial Technology Development Organization (NEDO)
in Japan. Specifications, product design, and information on this
website are subject to change without notice.
About HIT Technology
The SANYO HIT (Heterojunction with Intrinsic Thin layer) solar cell is composed of a single thin crystalline silicon wafer surrounded by ultra-thin amorphous silicon layers. This product provides industry-leading performance and value using state-of-the-art manufacturing techniques.
silicon solar cell and HIT solar cell structure comparison
High output produced by minimizing power generation losses in the non-regular grid area on the solar cell surface.
HIT solar cells improve boundary characteristics and reduce power generation losses by forming impurity-free i-type amorphous silicon layers between the crystalline base and p- and n-type amorphous silicon layers.
