Panasonic HIT N330 solar panel specifications
Maximum Units per 20 A (L-L) Branch Circuit†† 12 @ 240VAC / 10 @ 208VAC
Model VBHN330SA17E
Series AC Series
Rated Power (Pmax)¹ 330W
Maximum Power Voltage (Vpm) 58.0V
Maximum Power Current (lpm) 5.70A
Open Circuit Voltage (Voc) 69.7V
Short Circuit Current (Isc) 6.07A
Temperature Coefficient (Pmax) *-0.258%/°C
Temperature Coefficient (Voc) -0.16V/°C
Temperature Coefficient (lsc) 3.34mA/°C
NOCT 44.0°C
CEC PTC Rating (Tentative) N/A
Cell Efficiency 22.09%
Module Efficiency 19.70%
Watts per Ft.² 18.3W
Maximum System Voltage 600V
Series Fuse Rating 15A
Warranted Tolerance (-/+) +10%/-0%*
Internal Bypass Diodes 4 Bypass Diodes
Module Area 18.02 Ft.² (1.67m²)
Weight 42.99 Lbs. (19.5kg)
Dimensions LxWxH 62.6x41.5x1.6 in. (1590x1053x40 mm)
Cable Length +Male/-Female 40.2/40.2 in. (1020/1020 mm)
Cable Size / Type No. 12 AWG / PV Cable
Connector Type2 Multi-Contact® Type IV (MC4™)
Static Wind / Snow Load 112 PSF (5400Pa)
Pallet Dimensions LxWxH 65.3x43.7x48.5 in.
Quantity per Pallet / Pallet Weight 24 pcs/1098 Lbs. (498kg)
Quantity per 40’ Container 672 pcs.
Quantity per 20’ Container 288 pcs.
Operating Temperature -30°C to 85°C (-22°F to 185°F)
Hail Safety Impact Velocity 1" hailstone (25mm) at 52 mph (23m/s)
Safety & Rating Certifications UL 1703, cUL, CEC
UL 1703 Fire Classification Type 2
Limited Warranty Module: 25** Yrs Workmanship and Power Output (Linear)*** Microinverter: 25 Yrs Workmanship and Materials
Manufacturing Location USA
Peak Power Output 320VA
Maximum Continuous Output Power 315VA
Nominal (L-L) voltage/range† 240V / 211 – 264V
Maximum Continuous Output Current 1.31A @ 240VAC / 1.51A @ 208VAC
Nominal Frequency 60Hz
Extended Frequency Range 47 – 68Hz
AC Short Circuit Fault Current Over 3 Cycles 5.8Arms
Maximum Units per 20 A (L-L) Branch Circuit††
Overvoltage Class AC Port III
AC Port Backfeed Current 0A
Power Factor Setting 1
Power Factor (adjustable) 0.7 leading / 0.7 lagging
CEC Weighted Efficiency 97.5% @ 240V / 96.5% @ 208V

Residential Solar System Pricing
Panasonic solar panel system

We carry complete residential solar systems.
Perfect for the solar contractor or handy homeowner.

Panasonic HIT N330 VBHN330SA17E Solar Panel with Enphase IQ 7X

SKU VBHN330SA17E
Panasonic HIT
Panasonic HIT N330 solar panel
Panasonic HIT solar panels use HIT heterojunction monocrystalline solar cells.

Panasonic HIT N330 VBHN330SA17 Solar Panel

The 96-cell high-efficiency HIT N330 solar panel provides your home with a powerful combination of impub/mediate energy savings, long term performance, and sleek beauty at a low price. A remarkably low temperature coefficient of -0.258%/°C helps generate greater electricity output even on the hottest days. Panasonic home solar panels are backed by an industry-leading parts and performance warranty that guarantees minimum power output of 90.76% after 25 years.

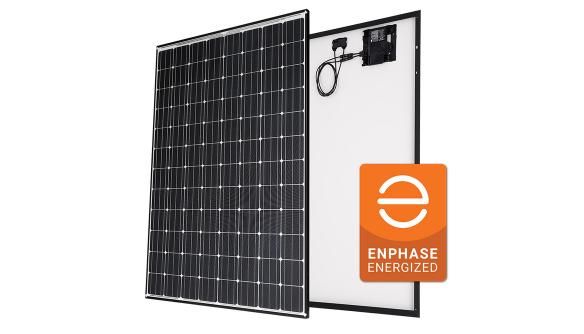

HIT® AC Series Module combines the efficiency of HIT® solar panels with the intelligence of Enphase microinverters. An Enphase IQ 7X microinverter with Individual MPPT tracking (Module-level Power Point Tracker) is integrated with HIT® high efficiency solar technology to deliver maximum power production from every roof size and shape. The AC Series alternative energy source offers extreme efficiency and high power output for residential solar systems. Panasonic solar panels are backed by our industry-leading performance warranty that guarantees minimum power output of 90.76% after 25 years.

HIT N330 Features

  • Enhanced New Frame Design (40mm)
  • Pyramid cell structure design for optimal sunlight capture
  • Low temperature coefficient of -0.258%/°C produces higher power output at high temperatures
  • Heterojunction technology with ultra-thin amorphous silicon layers reduce electron loss
  • Water drainage frame design prevents rain accumulation, eliminates water stains from panel surface
  • Complete 25-year warranty on linear power output, parts, and product workmanship
high-efficiency
High Efficiency at High Temperatures
As temperature increases, HIT continues to perform at high levels due to the industry leading temperature coefficient of -0.258% /°C. No other module even comes close to our temperature characteristics. That means more energy throughout the day.
25 year warranty
25 Year Product and Performance Warranty
Industry leading 2 year product workmanship and performance warranty is backed by a century old company- Panasonic. Power output is guaranteed to 90.76% after 25 years, far greater than other companies.
quality reliability

Quality and Reliability
Panasonic’s vertical integration, 20 years of experience manufacturing HIT® and 20 internal tests beyond those mandated by current standards provides extreme quality assurance.

higher efficiency
Higher Efficiency 19.7%
Enables higher power output and greater energy yields. HIT® provides maximum production for your limited roof space.
Low PID, Low LID
Low Degradation
HIT “N-type” cells result in extremely Low Light Induced Degradation (LID) and zero Potential Induced Degradation (PID) which supports reliability and longevity. This technology reduces annual degradation to 0.26% compare to 0.70% in conventional panels, guaranteeing more power for the long haul.
enhanced frame
Enhanced Frame Design
A new 40mm frame increases durability and strength, being able to handle loads of up to 5400Pa. Also, the water drainage system gives rain water and snow melt a place to go, reducing water stains and soiling. Less dirt on the module means more sunlight getting through to generate power.
HIT warranty

Panasonic HIT N330 VBHN330SA17 Warranty

25 Years Workmanship, 25 Years Power Output
Power output is guaranteed to 90.76% after 25 years.

Contact us toll-free: (877) 297-0014

Enphase logo

Enphase IQ7X-96-2-US Microinverter for 96-Cell Solar Panels

Enphase IQ 7 Microinverter detail review

The Enphase IQ7X-96-2-US is designed for modern grid-tied solar PV systems using 96-cell solar panels connected to 208 VAC or 240 VAC utility power.

The high-powered smart grid-ready Enphase IQ 7X Micro dramatically simplifies the installation process while achieving the highest system efficiency for systems with 96-cell modules. The IQ7X-96-2-US continues to offer the same ease of installation with the revolutionary 2-wire Q-Cable . It also leverages semiconductor integration for higher reliability and better economies of scale.

Enphase IQ7 microinverter on roof

Part of the Enphase IQ System, IQ 7 Micro inverters integrate seamlessly with the Enphase IQ Envoy, Enphase Q Aggregator, Enphase IQ Battery, and the Enphase Enlighten monitoring and analysis software.

The IQ7X-96-2-US Micro extends the reliability standards set forth by previous generations and has over a million hours of power-on testing. This thorough testing of proven solid-state technology enables Enphase to have the confidence to provide an industry-leading warranty of up to 25 years.

Enphase IQ7 microinverter solar contractor installing

Smart Grid Ready

• Complies with fixed power factor, voltage and frequency ride-through requirements
• Remotely updates to respond to changing grid requirements
• Configurable for varying grid profiles

Easy to Install

• Lightweight and simple
• Faster installation with improved two-wire cabling
• Built-in rapid shutdown compliant (NEC 2014 & 2017)

Productive and Reliable

• Optimized for high powered 96-cell PV modules
• More than a million hours of testing
• Class II double-insulated enclosure

Enphase IQ Battery Compatible!

• Low upfront cost
• Easy to expand
• Lithium-ion technology
• 10 year battery life expectancy

Learn more about the Enphase IQ Battery Energy Storage System.

Residential Enphase IQ7X-96-2-US Microinverter Solar Systems

Solar Electric Supply provides complete systems and design at a low wholesale price.

These pre-engineered PV systems include IQ 7 series microinverters, roof or ground mount, Envoy Energy Management Unit (EMU), Q Aggregator, Q cables, disconnects and breakers. We support our customers in the US with friendly knowledgeable staff that is here to help with your microinverter solar system questions.

Contact us toll-free at (877) 297-0014.

Enphase Microinverters

Panasonic HIT N330 VBHN330SA17 Solar Panel Review

HIT hetereojunction solar panel cell layers

Panasonic’s unique heterojunction technology uses ultra-thin amorphous silicon layers. These thin dual layers reduce losses, resulting in higher energy output than conventional panels.

bifacial solar panel cell

Advanced bifacial cell designed for increased energy output. The cell utilizes sunlight reflected back from the rear side material which captures more light and converted into energy.



HIT solar cell efficiency
The 19.7% efficiency of the HIT N330 enables a higher output and lower specific installation and balance-of-system costs.

100% Panasonic, 100% HIT

Proudly featuring Panasonic's original invention, the heterojunction solar cell. With over 1 billion cells produced commercially over 18 years, 25 years after the breakthrough in the development and looking back to over 40 years of experience in solar. Panasonic really offers you a 25-year guarantee you can trust.

  • Vertically integrated in-house manufacturing of wafer, cell, and module
  • State-of-the-art production facilities and manufacturing processes
  • Industry’s most stringent independent testing and quality control standards
  • IEC and 20+ internal tests

Record Breaking HIT Solar Cell Efficiency

Panasonic photovoltaic modules HIT feature an innovative hetero-junction cell structure made of mono-crystalline and amorphous silicon layers. Ultra-thin amorphous silicon layers prevent recombinations of electrons, keeping carrier loss to an absolute minimum. As a result, HIT® conversion efficiency ratings are among the highest available today.

Panasonic Proven Reliability

With HIT solar panels, Panasonic has proven its position among leading solar module manufacturers. These modules are shipped from the Panasonic's global manufacturing hub in Malaysia. Panasonic employs strict materials selection and qualified manufacturing processes. A vertically integrated factory allows for exhaustive quality assessments at every step of production. Panasonic HIT solar panels are IEC certified by JET.
