DPW Power-Fab MPM-G2 Multi-Pole Ground Mounting System

DPW Solar
DPW Solar MPM-G2 seasonally adjustable PV Solar Ground Mounting System


The DPW Solar MPM-G2  ground mounting system is manually adjustable, requires few penetrations, with factory design and engineering support available.

We can save you a significant amount versus list price from DPW Solar.

Multi-Pole Mounts G2
PV Solar Ground Mounting System Seasonally Adjustable
DPW MPM-G2 Mount

multi-pole

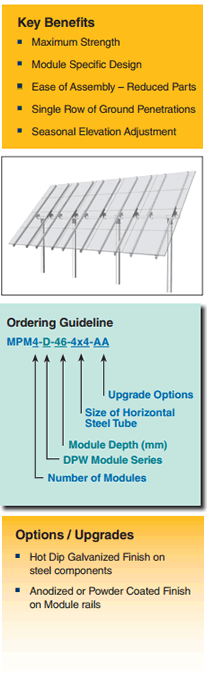

Power-Fab® Multi-Pole PV Mounting (MPM-G2) System

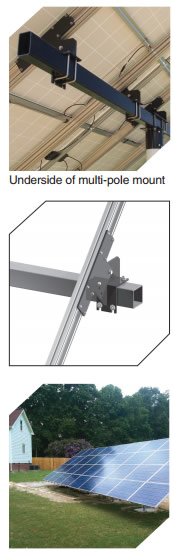

The POWER-FAB MPM-G2 ground mount is designed to install quickly and provide a secure mounting structure for PV modules on a single row of vertical pipe. The module specific design reduces the number of components and provides for an easier assembly. The MPM-G2 utilizes high strength welded steel components and corrosion resistant hardware for long term reliability. Seasonal adjustability for maximizing production is provided by nine positive locking tilt angle settings.

DPW MPM4

Maximum Strength - Durable Design
  • Designs available to withstand up to 130 MPH wind zones
  • MIG welded steel pipe caps and rail brackets with powder-coat finish
  • Stainless steel module mounting hardware
  • 6000 series structural Aluminum mounting rails
  • Stainless steel module clamps
  • Stainless steel rack assembly hardware
Application Flexibility
  • Several sizes available from 2 through 4 modules high in landscape orientation
  • Structures designed for standard 3", 4" or 6" Schedule 40 or 80 vertical steel pipe and 4" x 4" square or 5" x 4" rectangular horizontal steel tube (Installer Supplied)

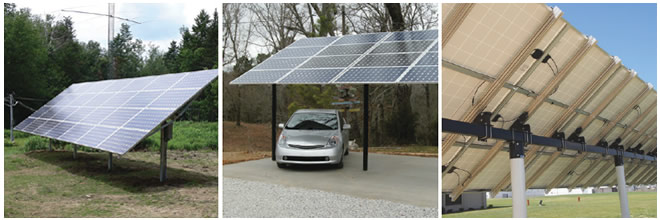

  • Ideal for shade and carport structures
  • Capable of significant ground clearance
  • Adjustable elevation brackets available with 0°, 10°, 20°, 25°, 30°, 35°, 40°, 45° and 55° positive locking tilt angles.
Ease Of Assembly - Reduced Labor Costs
  • One row of vertical pipe reduces ground work
  • Fast top-clamping module attachment
  • Fewer ground penetrations than traditional ground mounts
  • DPW Power-Fab RAD™ Twist-In bolts that Lock-in-Place
  • 0° Tilt setting to ease module installation
  • WEEB grounding option

multi-pole info DPW G2 Multi-Pole Ground Mount Specifications
