Side-Of-Pole Solar Panel Mounts
Power-Fab® Side-Of-Pole SPM Mount
Maximum Strength Single Pole PV Mounting System
We provide the DPW Solar POWER-FAB Side-of-Pole (SPM) PV Mounting System. This Single Pole PV Mounting System is designed to install quickly and provide a secure mounting structure for PV resistant hardware for long term reliability. Seasonal adjustability for maximizing production is provided by several tilt-angle settings and is a one person operation.
 |
Maximum Strength - Durable Design
- Standard SPM mounts designed to withstand 90 MPH wind zones
- TIG welded Aluminum pole channels
- 6000 series structural aluminum mounting rails
- Stainless Steel module mounting hardware
- Zinc plated rack assembly hardware

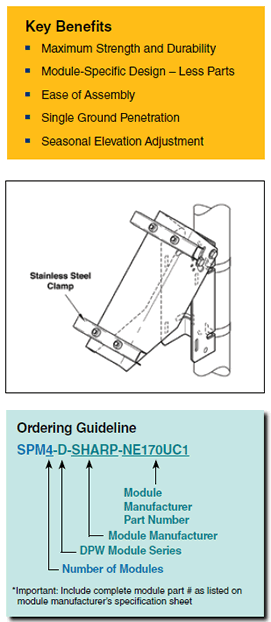

- High strength stainless steel band clamps
Application Flexibility

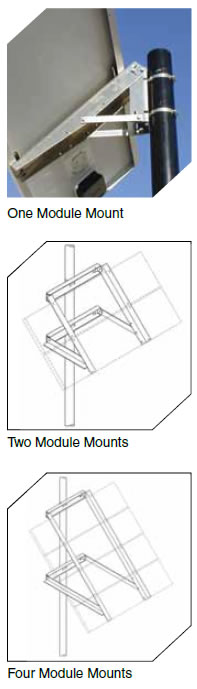

- Several sizes available from 1 through 4 modules
- Installs around standard 2 - 4.5' OD pipe (Installer Supplied)
- 30° to 60° tilt angle settings (full range)
- Mount up to 840W on a single pole
Ease of Assembly - Reduced Labor Costs
- Module Specific Design reduces number of parts and labor
- No measuring required
- Factory set module hole placement locations create uniform spacing
- Easy access bottom flange module attachment
|
 |
DPW Side-of-Pole Mount Specifications
