Model Number BPSX330J
STC Rating 30.0
PTC Rating 0.0
Open Circuit Voltage (V) 21.0
Short Circuit Current (A) 1.94
Frame Color Silver
Origin
Power % ± -10/10
(W/ft²) 0.00
Area (ft²) 461.0
Weight (lbs) 8.6
Length (in) 23.40
Width (in) 19.70
Height (in) 1.97

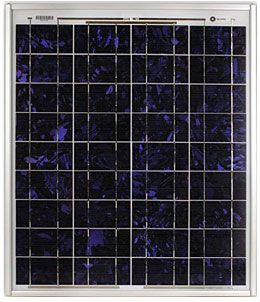

BP Solar BPSX330J Solar Panels

  • The BP SX330 is backed by a 12 year power warranty
  • The BP SX330J photovoltaic module is part of BP Solar's new SX module series. It is the new replacement for the BP SX30 (BP SX30U). It provides affordable solar power for DC loads with lower energy requirements. This solar module uses 36 multicrystalline cells in series. This panel configuration is ideal for charging a 12 volt battery or 24 volt battery bank in virtually any climate (with a charge regulator / controller).

    With two sets of 36 efficiency-enhanced cells in parallel, the 350J charges 12V batteries (or multiples of 12V) efficiently in virtually any climate. Typical applications include remote telemetry, instrumentation systems, radio repeaters, security sensors, water pumps, marine applications and land-based aids to navigation. An installed 9A, 45V Schottky by-pass diode offers flexibility, enabling two 350J modules to be put into series safely. The 350J is well suited to provide power to homes in remote areas without utility service.

    No Longer Available

    We carry many high quality BP Solar Panel Equivalents for off-grid systems.

    Contact us at (877) 297-0014 for expert advice.

    SKU BPSX330J

    BP Solar SX 330 30 Watt Multicrystalline Solar Panel

    There are typical commercial applications of this module, which generates a nominal maximum power of 30 watts. Applications include remote telemetry, instrumentation systems, security sensors, signals, and land-based navigation aids. The Universal Frame has a junction box and a very rugged frame. The junction box accepts cable or conduit. The included standard terminals accept 8 to 14 AWG wire. The raintight (IP54 Rated) junction box of the SX 330 accepts PG13.5 or 1/2" nominal conduit or cable fittings. With its four -terminal connection block, it enables most system array connections (putting modules in series or parallel) to be made right in the junction box. The SX330 is intended for 12VDC or 24VDC systems. The SX330 is approved by Factory Mutual Research for application in NEC Class 1, Division 2 FM, Groups C & D hazardous locations and approved for explosion resistance. This certification is required near gas and oil pipelines.

    BP SX330 - Universal Frame Specifications:

    BP Solar BPSX330J electrical characteristics

    Dimensions

    595mm x 502mm x 50mm (23.4" x 18.4" x 1.97")

    BP Solar BPSX330J dimensions
    Model Rating Description Price

    BP SX330

    30 Watts,
    12V Nominal
    16.8V Peak

    Model: SX330J
    Type: Performance Multicrystalline
    Connection: Junction box
    Frame: Aluminum with tempered glass - Rugged universal frame
    Peak Power: 30 watts, 27 watts warranted
