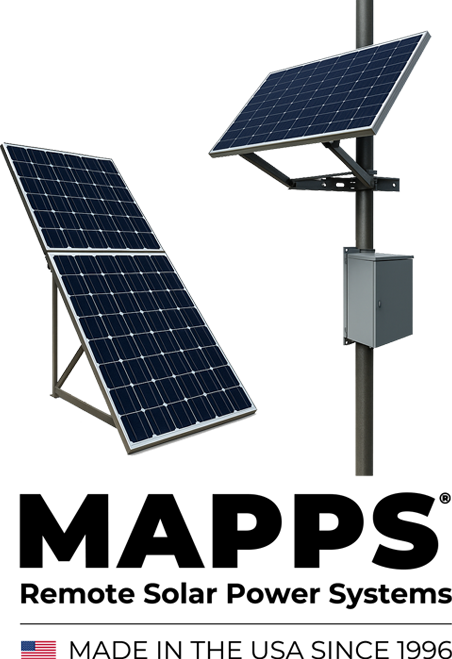

MAPPS^® Remote Industrial Solar System Design Tool

Find the right MAPPS^® solar system in 3 easy steps:

Estimate Energy Use: Utilize the MAPPS Load Calculator to determine your daily Watt-hours (Wh/d). You can enter the Wh/d manually if you've already calculated it.
Identify Solar Zone: Use the "Solar Irradiance Map" (linked in the tool below under 'Select your Solar Zone') to find your zone and select it from the drop-down menu.
Select System Voltage & Find your MAPPS^® System: Select your desired system voltage from the drop-down menu in step 3 and click Launch MAPPS Design Tool to view your results.

Need assistance? Contact our experts at Contact@SolarElectricSupply.com.

1. Enter your Daily Power Requirement (Watt-hr/day)

Begin by listing every device you’ll power in the MAPPS® Load Calculator below – it adds up the Watt-hours for you in real time. For an ofline copy, download the excel worksheet.

Daily Power Requirement (Wh/d)

Download Load Calculator (Excel)

2. Select your Solar Zone

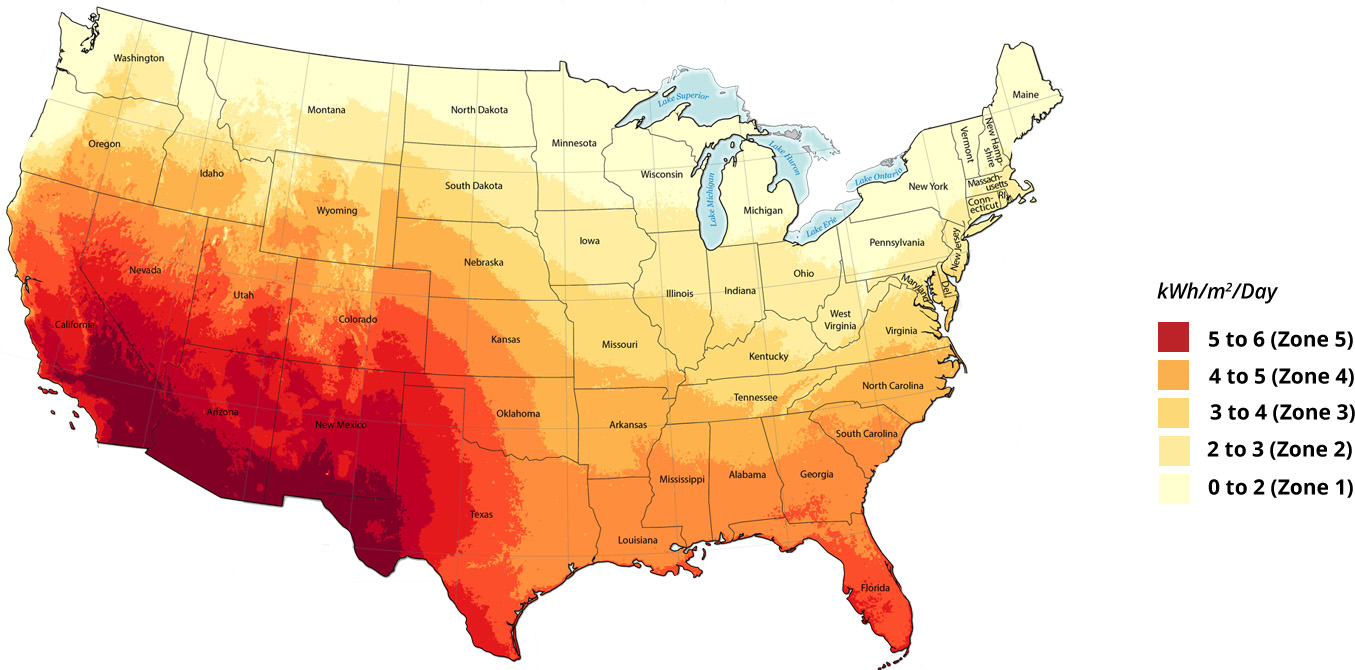

Locate your site on the Solar Irradiance Map (click to view) . The values represent average winter insolation; energy availability increases from Zone 1 to Zone 5.

Your Solar Zone

View MAPPS^® System Zone Design Tables

3. Select System Load Voltage

Pick a system voltage, then compare the table values for your zone to your required Watt-hours. Select the MAPPS model that meets or exceeds your need.

Preferred System Voltage

MAPPS^® Watt-hr/day Load Calculator

Qty	Description	Amps	Volts	Watts	Hours/day	Wh/day
Total: 0.00 Wh/day

* Example: Calculating Watt‑hours for a 25% duty‑cycle radio

Qty	Load Description	Amps	Volts	Watts	Hours/day	Watt‑hr/day
1	Radio Transmit	3	12	36	6	72
1	Radio Standby	0.5	12	6	18	108
Total Watt‑hr/day						324

* Use the actual operating current and duty‑cycle for each device to calculate daily Watt‑hours. Spec‑sheet ratings often show peak currents that are higher than average consumption. We recommend bench‑testing your equipment under expected field conditions for at least 24 hours before selecting a MAPPS® system.

MAPPS^® Solar Power System Performance Tables

The tables below represent the Watt-hours per day performance of each MAPPS^® system in the different solar zones. Choose your system voltage, then look down your solar zone column for the value that meets or exceeds your design load Watt-hours. Follow the row to the left for the corresponding prepackaged MAPPS system that will fully power your load requirements. Complimentary solar sizing analysis for your location can be provided with quotation.

12 Volt MAPPS^® System Design Table

MAPPS^® ID Number

Solar Array Wattage

Battery Amp-Hr Rating

Zone 1 MAPPS (Whr/d)

Zone 2 MAPPS (Whr/d)

Zone 3 MAPPS (Whr/d)

Zone 4 MAPPS (Whr/d)

Zone 5 MAPPS (Whr/d)

MAPPS 20-36-12

20W

MAPPS 30-58-12

30W

MAPPS 50-108-12

50W

108

135

MAPPS 90-108-12

90W

108

146

194

243

MAPPS 90-216-12

90W

216

146

194

243

MAPPS 120-216-12

120W

216

130

194

259

324

MAPPS 150-216-12

150W

216

162

243

324

405

MAPPS 180-216-12

180W

216

194

292

389

486

MAPPS 300-265-12

300W

265

162

324

486

648

810

MAPPS 300-530-12

300W

530

162

324

486

648

810

24 Volt MAPPS^® System Design Table

MAPPS^® ID Number

Solar Array Wattage

Battery Amp-Hr Rating

Zone 1 MAPPS (Whr/d)

Zone 2 MAPPS (Whr/d)

Zone 3 MAPPS (Whr/d)

Zone 4 MAPPS (Whr/d)

Zone 5 MAPPS (Whr/d)

MAPPS 90-108-24

90W

108

146

194

243

MAPPS 100-108-24

100W

108

162

216

270

MAPPS 200-108-24

200W

108

216

324

432

540

MAPPS 300-265-24

300W

265

162

324

486

648

810

MAPPS 400-265-24

400W

265

216

432

648

864

1080

MAPPS 400-530-24

400W

530

216

432

648

864

1080

MAPPS 600-530-24

600W

530

324

648

972

1296

1620

MAPPS 800-530-24

800W

530

432

864

1296

1728

2160

MAPPS 1200-530-24

1200W

530

648

1296

1944

2592

3240

MAPPS 1200-1060-24

1200W

1060

648

1296

1944

2592

3240

48 Volt MAPPS^® System Design Table

MAPPS^® ID Number

Solar Array Wattage

Battery Amp-Hr Rating

Zone 1 MAPPS (Whr/d)

Zone 2 MAPPS (Whr/d)

Zone 3 MAPPS (Whr/d)

Zone 4 MAPPS (Whr/d)

Zone 5 MAPPS (Whr/d)

MAPPS 1200-530-48

1200W

530

648

1296

1944

2592

3240

MAPPS 1600-795-48

1600W

795

864

1728

2592

3456

4320

MAPPS 2000-795-48

2000W

795

1080

2160

3240

4320

5400

MAPPS 2400-1060-48

2400W

1060

1296

2592

3888

5184

6480

120 Volt MAPPS^® System Design Table

(Note: These systems include a DC to 120 VAC pure sine wave inverter for AC loads)

MAPPS^® ID Number

Solar Array Wattage

Battery Amp-Hr Rating

Zone 1 MAPPS (Whr/d)

Zone 2 MAPPS (Whr/d)

Zone 3 MAPPS (Whr/d)

Zone 4 MAPPS (Whr/d)

Zone 5 MAPPS (Whr/d)

MAPPS 50-108-12-120

50W

108

115

MAPPS 90-108-12-120

90W

108

124

166

207

MAPPS 90-216-12-120

90W

216

124

166

207

MAPPS 100-216-12-120

100W

216

138

184

230

MAPPS 150-216-12-120

150W

216

138

207

276

345

MAPPS 200-108-24-120

200W

108

184

276

368

460

MAPPS 300-265-24-120

300W

265

138

276

414

552

690

MAPPS 400-530-24-120

400W

530

184

368

552

736

920

MAPPS 600-530-24-120

600W

530

276

552

828

1104

1380

MAPPS 800-530-24-120

800W

530

368

736

1104

1472

1840

M 1200-1060-24-120

1200W

1060

552

1104

1656

2208

2760

M 1600-795-48-120

1600W

795

736

1472

2208

2944

3680

M 2000-795-48-120

2000W

795

920

1840

2760

3680

4600

M 2400-1060-48-120

2400W

1060

1104

2208

3312

4416

5520
