Pegasus Roof Mount Rail System - Wholesale Pricing

One System. Any Roof. Done Right.

Tool-free splicing and integrated bonding. Comp shingle, tile, and flat roof attachments. Complete wire management system. All backed by a 25-year warranty.

Pegasus Rail System

One System for Every Roof Type

The Pegasus mounting system delivers a complete rooftop PV solution with tool-free installation and integrated bonding for standard 30-40mm module frames. The open-channel rail design accommodates MC4 connectors, PV wire, and trunk cables without zip-ties. Standard and Max Rail options are available in 84" and 168" lengths with Mill and Black finishes. Compatible roof attachments include InstaFlash2 for composition shingle, Tile Scissor Mount for S/W/Flat tile, and InstaTilt for flat roof applications.

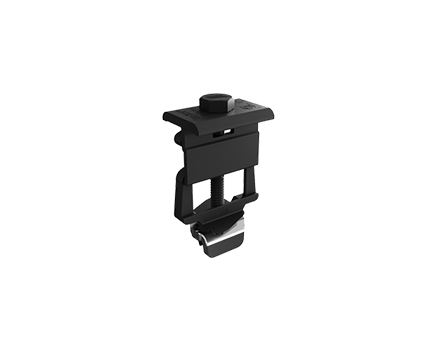

                                Single Multi-Clamp design functions as mid or end clamp for
                                    30-40mm frames


                                Tool-free structural splice with automatic bonding (UL 2703
                                    listed)


                                Roof-type-specific attachments for comp shingle, tile, and
                                    flat
                                    roofs



                                Integrated wire management with open-channel design and
                                    snap-in
                                    clips



                                25-year warranty with Class A fire rating for any slope
                                    roof

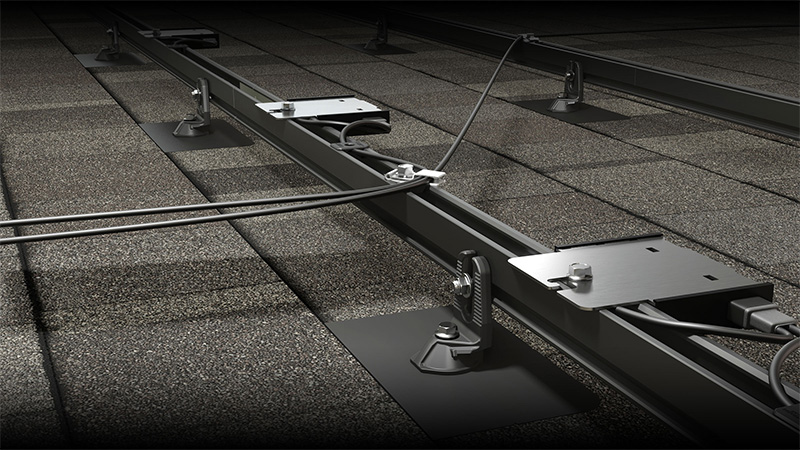

Pegasus Rail System with Multi-Clamp and Integrated Wire Management

Pegasus Rail System Components

Choose Your Pegasus Rail System

Select the rail system for your project, then add roof attachments and accessories below based on your roof type.

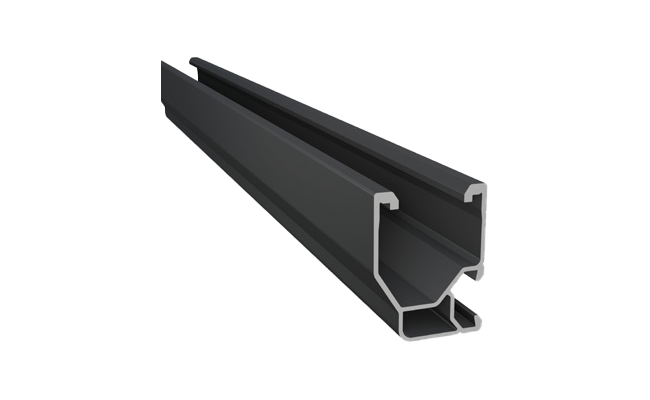

Pegasus Rail System

Available in 14' and 7' lengths with Mill and Black finishes. Open-channel profile holds MC4 connectors, PV wire, and trunk cables without zip-ties.

Download Datasheet

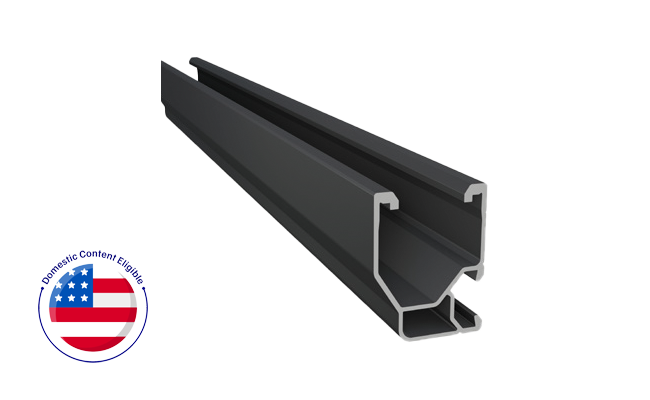

Pegasus Max Rail Domestic Content Eligible

Domestic Content Rails & Hardware

(Available in 2026) USA-made rails, clamps, and splices designed to help qualifying projects pursue the domestic content bonus tax credit under the Inflation Reduction Act.

Download Datasheet

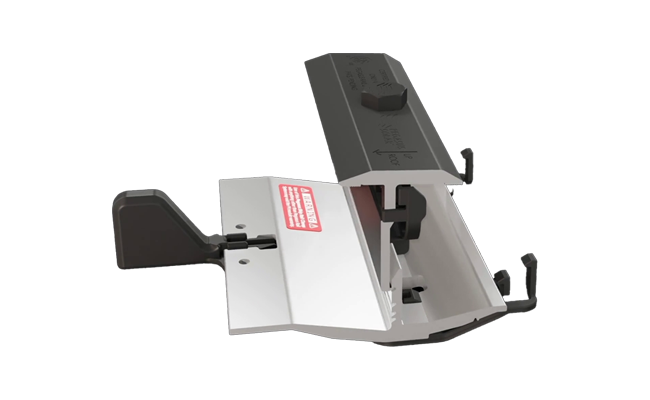

SkipRail Row-Skipping Clamp

Add SkipRail clamps to the Pegasus Rail System to “skip” intermediate rows of mounts, rails, and clamps. Add to any Pegasus Rail System to eliminate intermediate rows.

Download Datasheet

Product Categories

Browse by Roof Type

Select your roof type to view compatible Pegasus attachments, rail systems, and accessories.

Composition Shingle

Flashless and traditional mounting options for shingle roofs. Factory-sealed InstaFlash2, Comp Mount, and ButyL-Foot solutions.

4 Products View Products

Tile Roof

Click-to-lock Scissor Mounts and Tile Replace flashings for S-tile, W-tile, and flat tile applications. No grinding or cutting required.

3 Products View Products

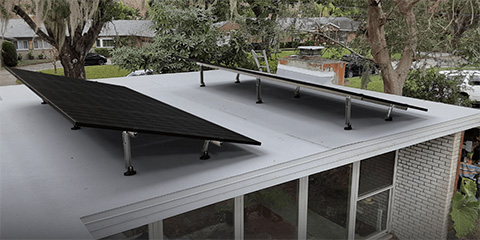

Flat Roof & Tilt Systems

Adjustable tilt mounting for low-slope and flat roofs. InstaTilt and Tilt Leg Kit with 0-35° adjustment. Uses scrap rail for cost savings.

2 Products View Products

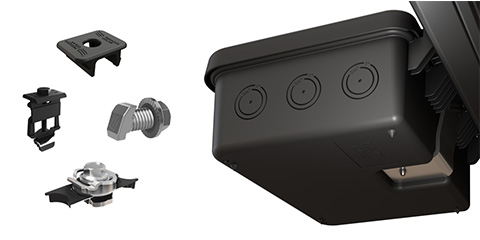

Accessories & Hardware

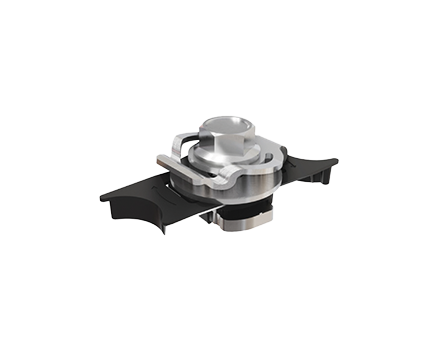

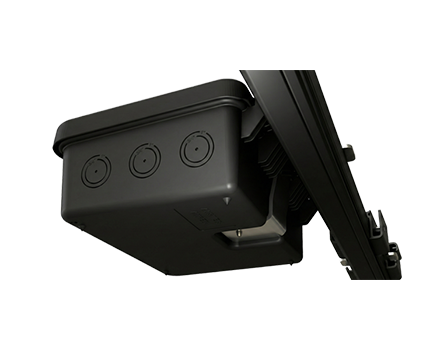

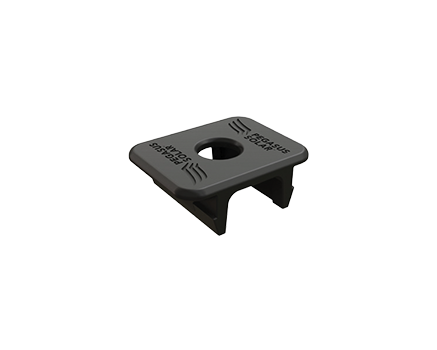

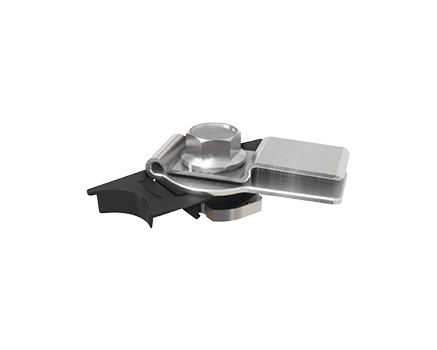

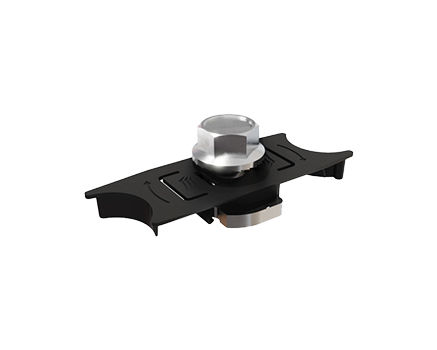

BondBox junction boxes, MLPE mounts, wire management clips, cable grips, ground lugs, clamps, and finishing components.

9 Products View Accessories

Composition Shingle

Watertight Attachments for Any Season

Flashless mounts with factory-sealed butyl and traditional flashing options. Install in rain, sleet, or sun — 0°F to 170°F. UL 2703 listed with 25-year warranty.

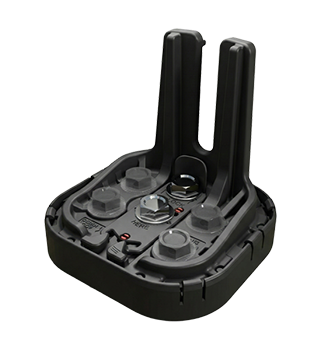

InstaFlash2 Kit

Rafter or deck attach — no pilot holes
Pre-installed self-healing butyl sealant
Fills gaps and butt joints instantly
Install in 0°F to 170°F, including rain

Datasheet

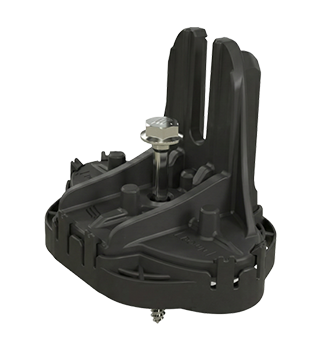

InstaFlash Kit

Rafter attach with 5/16" x 4.0" SS lag
Factory-installed sealant in protective cage
4.6" base fills voids and shingle rips
Self-healing seal flexes with thermal cycles

Datasheet

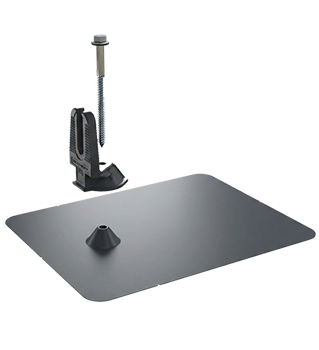

Comp Mount Kit

One-piece flashing with elevated cone
Water seal raised 0.9" above deck
Includes flashing, L-foot, SS lag w/ EPDM
Tested to AC286 without sealant

Datasheet

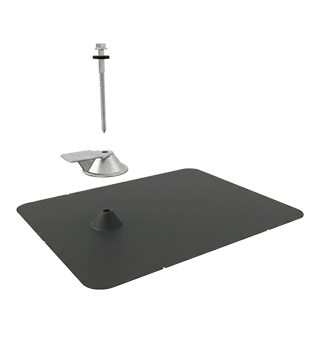

Comp Accessory Mount

Mount conduit or J-boxes on comp shingle
One-piece flashing with elevated cone
Holds accessories 1" above roof surface
Supports up to 1" conduit at any angle

Datasheet

Tile Roof

No Grinding. No Dust. No Problem.

Click-to-lock Scissor Mounts and Tile Replace systems for S-tile, W-tile, and flat tile. Gain extra tiles for replacements — no trips to the tile yard. UL 2703 certified with 25-year warranty.

Tile Scissor Mount

Click-to-lock — no L-foot needed
Flashing slides in, scissor clicks into place
Available for Flat, S-tile, and W-tile
Kit includes flashing, scissor, EPDM boot

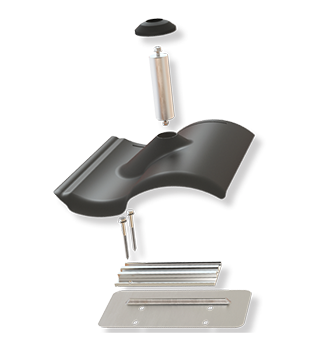

Tile Replace Mount

Post twist-locks into sled channel
No grinding or cutting required
Available for Flat, S-tile, and W-tile
Kit includes flashing, post, bolt, EPDM boot

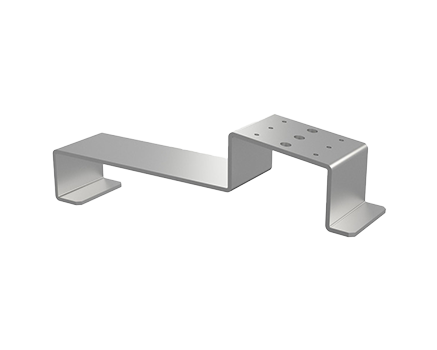

Tile Accessory Mount

Mount conduit or J-boxes on tile roofs
Tool-free install on Flat, S, and W-tile
Hooks onto tile — no tile removal needed
Supports up to 2x 3/4" or 1x 1" EMT

Flat Roof & Tilt Systems

Adjustable Tilt. Zero Waste.

Adjustable tilt mounting for low-slope and flat roofs. Pre-assembled components with 0-35° tilt adjustment. Uses scrap Pegasus Rail for cost savings.

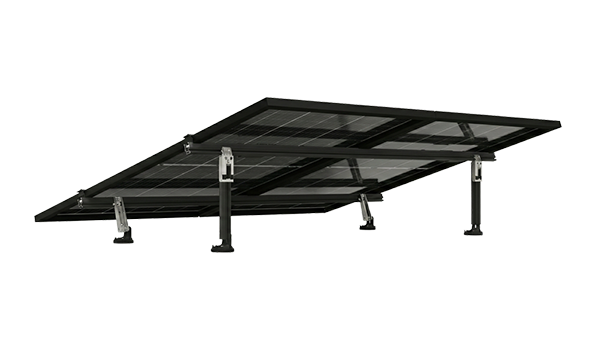

InstaTilt Kit

InstaFlash-based attachment included
Adjustable 0-35° tilt angle
Uses scrap Pegasus Rail for tilt legs
Pre-assembled components, rapid install

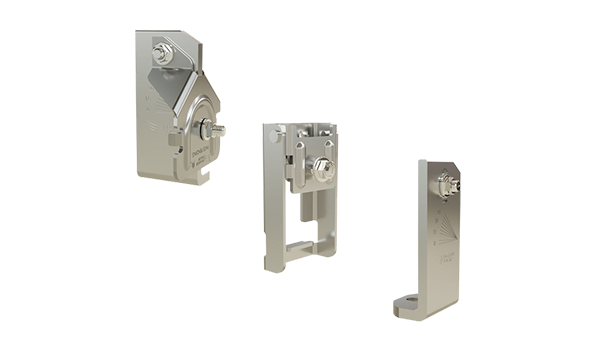

Tilt Leg Kit

For 3rd-party 3"+ curb flashing systems
Adjustable 0-35° tilt angle
Uses scrap Pegasus Rail for tilt legs
Level without removing modules

Accessories & Wire Management

Finish the Job Right

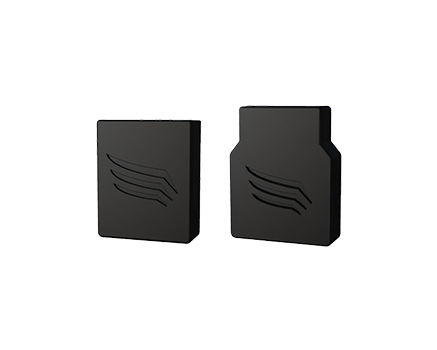

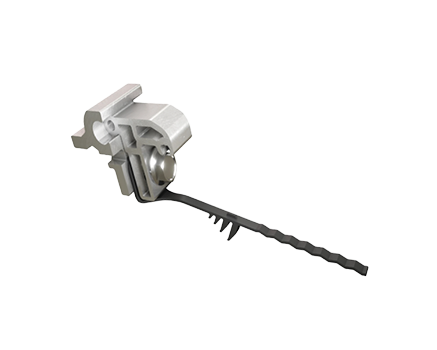

Clamps, grounding, wire management, and finishing components for the Pegasus Rail System. All accessories are UL 2703 listed and backed by a 25-year warranty.
