EcoFlow Ocean Pro Hybrid Inverter Specifications

Model	EcoFlow OCEAN Pro Inverter
Nominal Output Voltage	120/240V AC Split Phase
Rated Power	24 kVA
Grid Frequency	60 Hz
Solar Input (STC)	40 kW Max
MPPT Inputs	8 Channels (5kW Each)
PV Input Voltage Range	80 – 500 VDC
DC Voltage Range	60 – 550 VDC
Withstand Voltage	600 VDC
Max MPPT Current (Imp)	16A per channel
Max Short-Circuit Current	20A per MPPT
Battery Compatibility	EcoFlow OCEAN Pro Battery (10kWh, up to 8 units)

Residential Roof Mount Kit Prices

Complete roof mounted solar systems engineered for durability and ease of installation. Our premium kits include IronRidge XR rail systems, compatible with all our solar panels and available for all roof types, with special options for tile, flat, and metal roofs at competitive wholesale pricing.

View Latest Roof Mount System Prices

EcoFlow OCEAN Pro 24kVA Hybrid Solar Inverter

Name: EcoFlow OCEAN Pro 24kVA Hybrid Solar Inverter
SKU: ECOFLOW-OCEAN-PRO-HYB-INVERTER

SKU ECOFLOW-OCEAN-PRO-HYB-INVERTER

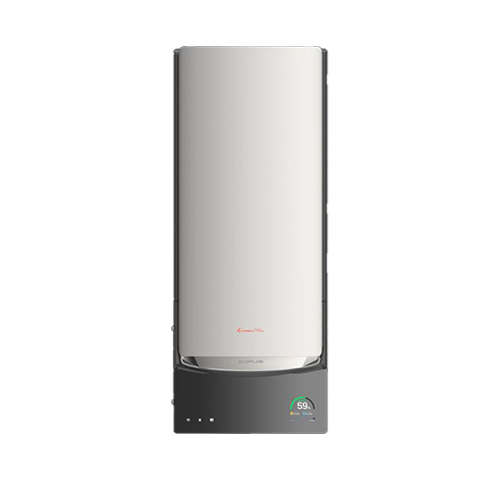

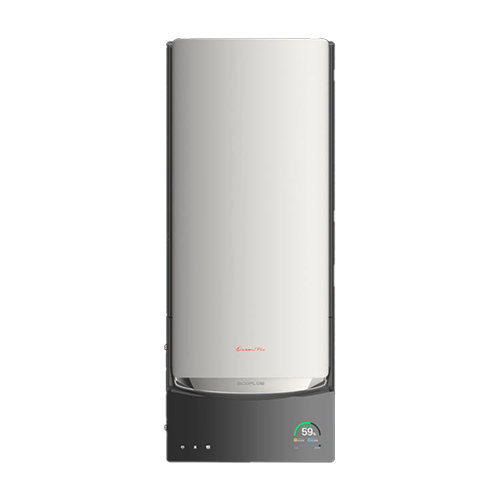

The EcoFlow OCEAN Pro Hybrid Inverter

The EcoFlow OCEAN Pro Hybrid Inverter is the central energy control unit of the OCEAN Pro ecosystem. Delivering 24 kVA of split-phase power, it combines solar, battery, and grid connectivity with fast response, integrated protection, and advanced load management.

With 8 MPPT channels and support for up to 40kW of solar input, the OCEAN Pro inverter enables precise power tracking and broad design flexibility. Native compatibility with EcoFlow’s Smart Panel and storage modules allows for unified whole-home backup and smart grid participation in a single, scalable solution.

OCEAN Pro Hybrid Inverter Features

High Solar Input Capacity: Accepts up to 40kW of PV input with 8 MPPT channels to maximize energy harvest across diverse rooftop layouts.
Split-Phase AC Output: Delivers 24kVA 120/240V output for full compatibility with North American residential loads.
Fast Load Start Capability: 205A Locked Rotor Amp (LRA) start supports large inductive loads during outages or backup use.
Multi-Source Coupling: Works with solar, grid, battery, and generator simultaneously for uninterrupted power flow.
Hybrid Mode Support: Operates in both AC- and DC-coupled configurations for flexible storage integration and backup response.

Full Home Solar Energy Control

Designed for seamless operation across the EcoFlow energy ecosystem, the OCEAN Pro Inverter functions as the central brain of a modern, hybrid energy system. It synchronizes battery storage, PV, grid, and generator sources — all managed through the EcoFlow App.

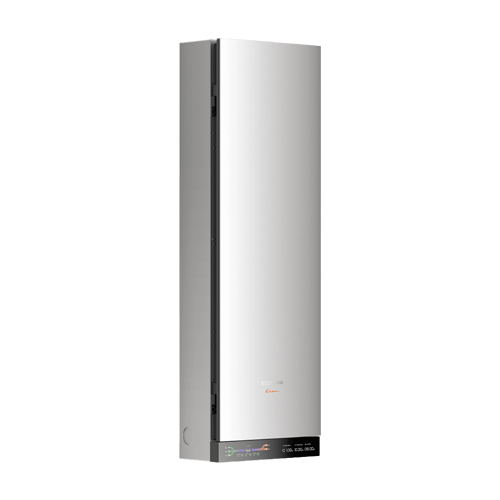

Compatible with EcoFlow Smart Electrical Panel 40 and Meter Backup Switch
Fully synchronized with EcoFlow OCEAN Pro Batteries and up to 80kWh per inverter
Supports AC- and DC-coupled system architectures
Integrated rapid shutdown and dry contact relays for compliant system shutdown

Attachments Details

EcoFlow OCEAN Pro Hybrid Inverter Review

The EcoFlow OCEAN Pro Hybrid Inverter delivers strong performance in both grid-tied and off-grid applications. With 24kVA of output and support for up to 40kW of PV input, it meets the demands of whole-home systems including large HVAC, EV, and storage integration. Its 8 MPPT inputs improve array design and shading tolerance, while the rapid-load startup capability supports heavy inductive loads like pumps and compressors.

Designed for residential and small commercial use, the inverter’s hybrid capabilities and wide input ranges simplify installation and commissioning. Combined with its UL 1741 and IEEE 1547 compliance, it positions itself as a robust and scalable platform for backup, self-consumption, and time-of-use optimization in North America.
