Model Number KD240GX-LPB
STC Rating 240.0
PTC Rating 217.3
Open Circuit Voltage (V) 36.9
Short Circuit Current (A) 8.59
Frame Color Black
Origin US/Mexico
Power % ± -3/5
(W/ft²) 13.55
Area (ft²) 17.7
Weight (lbs) 46.3
Length (in) 65.43
Width (in) 38.98
Height (in) 1.40

Kyocera KD240GX-LPB Solar Panels

SKU KD240GX-LPB

This Kyocera Product is Discontinued

Please note: This Kyocera product is no longer available. For help finding a suitable replacement, please contact us or browse our current wholesale solar panel specials for current stock availability.

  • High efficiency multi-crystalline modules
  • The KD240GX-LPB modules have a +5/-5% power tolerance
  • Cell Efficiency over 18.5%
  • UL listed
  • Low iron, tempered glass, EVA encapsulant and anodized aluminum frame construction
  • 20 year output warranty on all KD Series modules
  • Weather resistant junction box or Multi Contact connectors
Attachments Details

Made in the USA

The KD240 solar module is qualified for "Buy American" as these modules are made in the USA. They are manufactured in the Kyocera facility in San Diego, CA.

Cutting Edge Technology

As a pioneer with 35 years in solar, Kyocera demonstrates leadership in the development of solar energy products. Kyocera's Kaizen Philosophy, commitment to continuous improvement, is shown by repeatedly achieving world record cell efficiencies.

Kyocera Quality Built In

60 cell module for utility and commercial applications with silver anodized frame. Kyocera manufactures and assembles solar cells and modules at its own worldwide production sites using a true vertical integration process. This superior approach gives Kyocera complete control over every step of the manufacturing process, producing modules with the industry's tightest power tolerance, promising high quality and efficiency.

  • Highest Built-In Quality
  • Proven Superior Field Performance
  • 25 Year Warranty
  • 5 Year Workmanship Warranty
  • Kyocera's Most Powerful Module Manufactured
  • Requires an average 8” mounting clearance for optimal performance
  • Supported by most major mounting structure manufacturers
  • Easily accessible grounding points on all four corners for fast installation
  • Proven junction box technology with PV Wire
  • Quality locking plug-in connectors to provide safe and quick connections

NEC 2008 Compliant UL 1703, ISO 9001 and ISO 14001. Certified and Registered Class C
Design and specifications are subject to change without notice.

KD240GX-LFB Specifications

Electrical Performance
Under Standard Test Conditions (*STC)
Maximum Power (Pmax)
240 W (+5W/-3W)
Maximum Power Voltage (Vmpp)
29.8V
Maximum Power Current (Impp)
8.06A
Open Circuit Voltage (Voc)
36.9V
Short Circuit Current (Isc)
8.59A
Max System Voltage
600V
Cells
Number per Module
60
Module Characteristics
Length x Width x Depth
1682mm x 990mm x 46mm (65.4" x 39.0" x 1.8")
Weight
21kg (46.3lbs)
Cable
(+)760mm (-)1840mm ((+)29.9" x (-)72.4")
Junction Box Characteristics
Length x Width x Depth
105mm x 108mm x 15mm (4.1" x 4.3" x .8")
IP Code
IP65

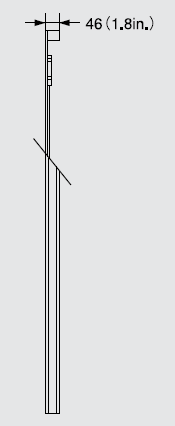

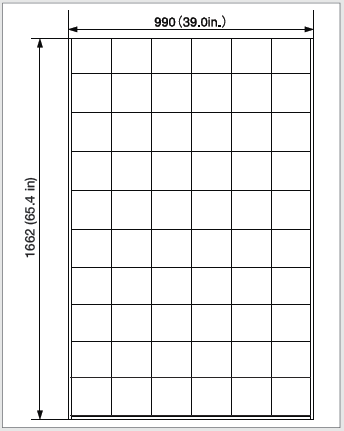

Dimensions (click for picture)
KD235GX-LPB Review KD-235GX-LB Dimensions KD200-60
Others
*Operating Temperature
-40 C ˜ 90°C
Maximum Fuse
15A

*This temperature is based on cell temperature.

made in USA
The KD240GX-LPB is proudly made in the USA in San Diego, CA.


Kyocera Solar System examples:

Kyocera Solar Panels
PPL Renewable Energy Park
Camden Co., NJ 500kW System Performing at 105%

Kyocera Solar Panels
Gatorade Distribution Facility
Tolleson, AZ 500kW System
Performing at 108%

Kyocera Solar Panels
Integrity Building Corporation
Mesa, AZ 19.2kW System
Performing at 106%

Kyocera Solar Panels
Alvarado Water Treatment Facility
San Diego, CA 1.2 MW System Performing at 115%



Complete grid-tie solar systems using these Kyocera solar panels - click here


Kyocera has made many technological advances over the past 35 years.
Kyocera KD200-60 solar panels lead today's current photovoltaic Kyocera products.
