SOLAR POWER FOR REMOTE APPLICATIONS

Model Number MAPPS-150-216-12
Nominal System Voltage 12 VDC
Solar PV Module SES 150J 12 Vdc 150 Watts
Solar Module Certifications UL 1703, Class 1 Division 2, Group A, B, C, D, Class C Fire Rating
PV Module Mount SPM1-150 side of pole mount
Battery Type 2X Deka Solar 8G30-HFL-DEKA Gel Cell
Battery Bank Capacity 12V 216 Ahr at 100 hour discharge rate
Enclosure Model AL-POL-2-G31N
Enclosure Rating NEMA 3R
Charge Controller SunSaver SS-20L-12
Controller Certifications ETL Listed to UL 1741 & CSA C22.2 No. 107.1-01
MAPPS System Weight w/ Batteries 221.5 lbs.
Origin USA
List Price $2,920.00

MAPPS Offgrid Systems from SES
Check Out Our Full Selection of Pad & Pole Mounted Solar Systems

MAPPS 150 Watt 12VDC 216Ahr Pole-Mounted Solar Battery System

SKU MAPPS-150-216-12
$2,920.00

Reliable Power Anywhere with Our 150W 216Ahr Pole-Mounted System

MAPPS solar panel system

Designed for long life in
harsh weather climates.

When it comes to selecting a solar power system, MAPPS® is a standout choice with its robust features, superior reliability, and proven performance. Designed to deliver a sustainable power supply for any remote off-grid location, these systems are pre-wired, easy to install, and adaptable to an array of outdoor applications. MAPPS® systems are renowned for their reliability, cost-effectiveness, and low maintenance, providing a seamless solution to your diverse outdoor power needs.

MAPPS® systems are built tough, capable of withstanding the harshest weather conditions, from the cold of the North Slope of Alaska to the heat of the Arabian Desert. The photovoltaic modules used in these systems exceed Jet Propulsion Laboratory Block V durability tests, are UL listed, and rated for Class I Division II hazardous areas, ensuring a design life of 25 to 40 years.

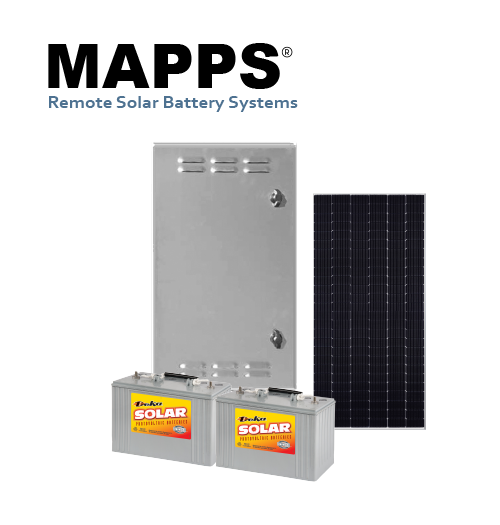

MAPPS-150-216-12 Solar Battery Systems Include

  • 1x 150W SES 150J Solar Panel w/ mount
  • 1X NEMA 3R Outdoor Battery & Control Enclosure
  • 2x Deka Solar 8G30-HFL-DEKA Gel Cell Battery
  • 1x SPM1-150 side of pole mount
  • Charge control load center with
    pre-cut color coded wiring harness included.
  • Locking Compression Latches w/ 5/16" + 1/4" Shackles

Optional

  • DC to DC converters for 12, 24, 48 VDC loads
  • DC to AC inverter for 120 VAC loads
  • Pre-wired PoE Power over Ethernet injectors
  • Radio shelf for additional load equipment
  • We can custom prewire many designs, CONTACT US today for details

MAPPS System Benefits

Reliable

Engineered with the industry's finest components, each element within the MAPPS® system undergoes thorough testing, ensuring reliability in even the harshest environments.

Cost-Effective

By eliminating the need for generators and trenching, the MAPPS® system offers a cost-effective solution for your power needs.

Easy Installation

The system comes pre-wired, making the installation process a breeze. Even the most remote off-grid sites can benefit from this user-friendly design.

UL Listed components

MAPPS® systems contain components that are UL listed, assuring safety and performance to the highest standards.

MAPPS Systems are Made in USA

MAPPS® systems are made in the USA and qualify for Buy America programs

solar contractors on utility transmission tower

MAPPS Remote Pole-Mounted Solar Power System Applications

No matter what extreme environment on Earth: arctic, desert, coastal or tropical, this corrosion-resistant solar power system is ideal for your next remote off-grid solar project.

Solar battery powered examples can include:

  • Wireless communications
  • Ultrasonic Meter
  • DC/DC Converter
  • LED lighting
  • Raven RV50
  • Digital Outputs
  • MDS SD9 Radio
  • UPS battery backup systems

With your solar powered application today! OEM, Distributor, System Integrator, Government, VAR, Dealer, Contractor, MWBE, International, and Reseller discounts available.

Toll-Free: (877) 297-0014

MAPPS 150W 216AHr Battery Off-Grid Enclosure Solar System Review

150W 216Ahr Pole Mounted Solar Panel Systems Include


MAPPS 150W 216Ahr Pole Mount Enclosure Details

pole mounted off-grid enclosure solar system

Need to purchase from your local electrical supply house?

Our MAPPS systems are available from these top distributors:.


SES Solar Store Distributors P&R Tech Border States Crescent Electric Supply Company Mayer Electric Supply Rexel Independent Electric Supply Sonepar OneSource Distributors Miller Electric Graybar Grainger Elliot Electric Supply CED - Consolidated Electrical Distributors

Solar Electric Supply specializes in supplying dealer, contractor, government and industrial accounts worldwide with reliable, cost-effective Class 1 Division 2 solar electric power solutions.

Pole Mounted Solar Systems  ·  Contractor Discounts Available



Contact us toll-free: (877) 297-0014 for expert assistance and wholesale prices for the SES MAPPS 150W 216Ahr 12 Volt Pole-Mounted Solar System with 2 batterys.
