90 Watt 12VDC 216Ahr Pole-Mounted Solar Panel System

Availability: Call For Availability

Features

remote off-grid battery enclosure solar system
remote off-grid solar panel systems
MAPPS off-grid enclosure solar system logo

Off-Grid Enclosure Solar Systems

90 Watt 12VDC 216Ahr Pole-Mounted Solar Panel System

one solar panel system
Enclosure solar system designed for long life in harsh weather climates.

Reliable Weatherproof Off-Grid Solar System

This highly reliable, durable, and rugged two-battery system is designed to require minimal maintenance with a 20 year design life (with battery replacements approximately every five to seven years). Our systems are assembled and tested following strict QA/QC procedures, and are designed to IEEE Standard 1562: Guide for Array and Battery Sizing in Stand-Alone Photovoltaic (PV) Systems.

MAPPS enclosure off-grid solar systems include components with the highest quality standards and qualify for Made in USA, Buy America and ARRA. MAPPS systems are also available with UL Listing or Class I Div 2 approval.

90W Off-Grid Solar System w/ 2 batteries

charge controller Charge control load center with pre-cut color coded wiring harness included.
lock for battery box
enclosure box lockable latch
The compression latch for locking includes a 5/16" and 1/4" shackle.
charge controller options
We can pre-wire many options.

Solar Panel

  • High efficiency crystalline silicon
  • Meets JPL Block V durability criteria
  • Tempered glass and aluminum frame
  • Conduit ready junction box or MC 4 connectors

Gel Cell Sealed Batteries

  • Sealed maintenance-free
  • Excellent deep-cycling performance
  • Immobilized electrolyte, non-spillable
  • Transports easily and safely

System Enclosure

  • Mill finish Aluminum construction
  • Powder coated enamel white option
  • Filtered louvered vents
  • Insulation Kit for battery optional
  • Controller mounted on DIN rail with array/battery/load breakers

Balance of System Components

  • Heavy duty aluminum mounting structure
  • Controller with low voltage battery protection
  • Optional 130 and 170 MPH available
  • Color-coded, pre-cut wiring harness
  • Easy-to-follow manual/system schematics

Optional Components

  • DC to DC converters for 12, 24, 48 VDC loads
  • DC to AC inverter for 120 VAC loads
  • Radio shelf for additional load equipment
  • Pre-wired PoE Power over Ethernet injectors
solar contractors on utility transmission tower

MAPPS Remote Off-Grid Solar Power System Applications

No matter what extreme environment on Earth: arctic, desert, coastal or tropical, this corrosion-resistant solar power system is ideal for your next remote off-grid solar project.

Solar battery powered examples can include:

  • Wireless transceiver
  • Cabinet fan
  • Lineguard Cabinet LED
  • LED lighting
  • Communication
  • Rosemount 3051
  • DIO & Al Exp. Modules
  • UPS battery backup systems
  • Contact us with your solar powered application today! OEM, Distributor, System Integrator, Government, VAR, Dealer, Contractor, MWBE, International, and Reseller discounts available.

    Call toll-free: (877) 297-0014

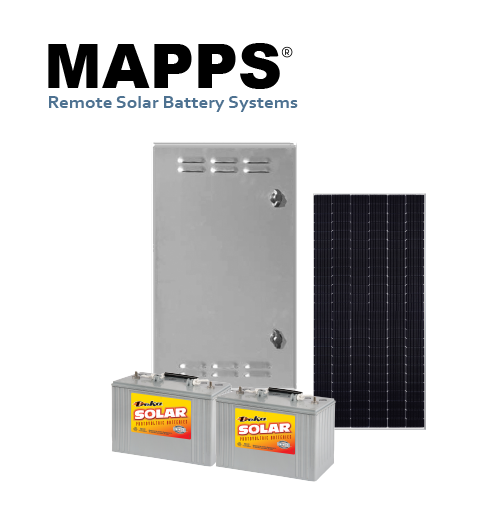

    90 Watt 12VDC 216Ahr Off-Grid Enclosure Solar System

    Double click on above image to view full picture

    Zoom Out
    Zoom In

    Specifications

    SES MAPPS Off-Grid Solar Panel System

    Model Number MAPPS-90-216-12
    Nominal System Voltage 12 VDC
    Solar PV Module

    SES 490J 12 Vdc 90 Watts

    Solar Module Certifications UL 1703, Class C Fire Rating
    PV Module Mount SPM2-Multi side of pole mount
    Battery Type 2X Deka Solar 8G30H Gel Cell
    Battery Bank Capacity 12V 216 Ahr at 100 hour discharge rate
    Enclosure Model AL-POL-2-G31N
    Enclosure Rating NEMA 3R
    Charge Controller SunSaver SS-10L-12
    Controller Certifications ETL Listed to UL 1741 & CSA C22.2 No. 107.1-01
    MAPPS System Weight w/ Batteries 221.5 lbs.
    Origin USA
    List Price $2,771.02

    Manufacturer Specification Sheets

    View FileMAPPS 90-216-12 Pole-Mounted Battery Enclosure Solar System Datasheet    Size: (131.82 KB)
    View FileMAPPS Solar Panel System Design Guide    Size: (317.13 KB)

    Details

    MAPPS 90W 216AHr Battery Off-Grid Enclosure Solar System Review

    pole mounted off-grid enclosure solar system
