1,140W 24VDC 1,060Ahr Pad-Mounted Enclosure Solar System

Availability: Call For Availability

Features

remote off-grid battery enclosure solar system
remote off-grid solar panel systems
MAPPS off-grid enclosure solar system logo

Weatherproof Pad Mounted Solar Systems

1,140W 24VDC 1,060Ahr Pad-Mounted Enclosure Solar System

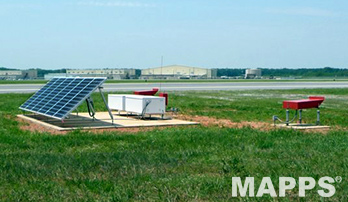

4 battery pad-mount solar battery enclosure system
Weatherproof solar system designed for long life in harsh weather climates.

Weatherproof Pad-Mounted Solar System

This highly reliable, durable, and rugged four-battery system is designed to require minimal maintenance with a 20 year design life (with battery replacements approximately every five to seven years). Our systems are assembled and tested following strict QA/QC procedures, and are designed to IEEE Standard 1562: Guide for Array and Battery Sizing in Stand-Alone Photovoltaic (PV) Systems.

MAPPS weatherproof pad-mounted solar systems include components with the highest quality standards and qualify for Made in USA, Buy America and ARRA. MAPPS systems are also available with UL Listing or Class I Div 2 approval.

1,140 Watt 24V Weatherproof Pad-Mounted Solar System

charge controller Charge control load center with pre-cut color coded wiring harness included.
custom pre-wired AC-DC charger option
We can pre-wire many options.

Solar Panels

  • High efficiency crystalline silicon
  • Meets JPL Block V durability criteria
  • Tempered glass and aluminum frame
  • Conduit ready junction box or MC 4 connectors

Gel Cell Sealed Batteries

  • Sealed maintenance-free
  • Excellent deep-cycling performance
  • Immobilized electrolyte, non-spillable
  • Transports easily and safely

System Enclosure

  • Aluminum construction
  • Powder coated enamel white paint
  • Filtered louvered vents
  • Insulation Kit for battery
  • Controller mounted on DIN rail with array/battery/load breakers

Balance of System Components

  • Heavy duty aluminum mounting structure
  • Controller with low voltage battery protection
  • Optional 130 and 170 MPH available
  • Color-coded, pre-cut wiring harness
  • Easy-to-follow manual/system schematics

Optional Components

  • DC to DC converters for 12, 24, 48 VDC loads
  • DC to AC inverter for 120 VAC loads
  • Radio shelf for additional load equipment
  • Pre-wired PoE Power over Ethernet injectors
solar contractors on utility transmission tower

MAPPS Off-Grid Solar Panel System Applications

No matter what extreme environment on Earth: arctic, desert, coastal or tropical, this corrosion-resistant solar power system is ideal for your next remote off-grid solar project.

Solar battery powered examples can include:

  • Radio transceiver
  • Microwave Repeater
  • Remote broadband service
  • 4G LTE ruggedized gateways
  • DC/DC Converter
  • Grid Modernization
  • LED obstruction light
  • ControlWave Micro and Cards
  • UPS battery backup systems
  • DC Fail alarm relay
  • Contact us with your solar powered application today! OEM, Distributor, System Integrator, Government, VAR, Dealer, Contractor, MWBE, International, and Reseller discounts available.

    Call toll-free: (877) 297-0014

    1,140W 24VDC 1,060Ahr Pad-Mounted Enclosure Solar System

    Double click on above image to view full picture

    Zoom Out
    Zoom In

    Specifications

    SES MAPPS Pad-Mounted Solar Panel System

    Model Number MAPPS-1140-1060-24-PAD
    Nominal System Voltage 24 VDC
    Solar PV Module

    6X SES 4190J 24 Vdc 190 Watts ea.

    Solar Module Certifications UL 1703, Class C Fire Rating
    PV Module Mount Low-profile ground mount
    Battery Type 8X Deka Solar 8G8D Gel Cell
    Battery Bank Capacity 24V 1,060 Ahr at 100 hour discharge rate
    Enclosure Model 2X AL-PAD-4-8G8DN
    Enclosure Design NEMA 3R
    Charge Controller ProStar 30M
    Controller Certifications ETL Listed to UL 1741 & CSA C22.2 No. 107.1-01
    MAPPS System Weight w/ Batteries 1,822 lbs.
    Origin USA
    List Price $24,267.70

    Manufacturer Specification Sheets

    View FileMAPPS 1140-1060-24 Pad-Mounted Battery Enclosure Solar System Datasheet    Size: (150.13 KB)
    View FileMAPPS Solar Panel System Design Guide    Size: (317.13 KB)

    Details

    MAPPS 1,140 Watt 1,060AHr Weatherproof Pad-Mounted Battery Enclosure Solar System Review

    pad mounted 8D solar battery enclosure review

    Solar Electric Supply specializes in supplying dealer, contractor, government and industrial accounts worldwide with reliable, cost-effective Class 1 Division 2 solar electric power solutions.

    Pad Mounted Solar Systems  ·  Contractor Discounts Available



    Contact us toll-free: (877) 297-0014 for expert assistance and wholesale prices for the SES MAPPS 1,140 Watt 24V Weatherproof Pad-Mounted Solar System.
