SimpliPhi PHI 3.8 24V Lithium Ion Battery

Availability: Call For Availability

Features

SimpliPhi

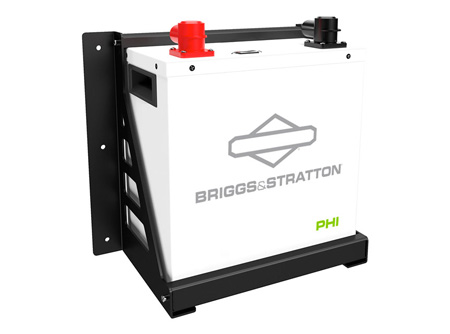

SimpliPhi PHI 3.8 24V Lithium Ion Battery


SimpliPhi Phi 3.8

Design an energy storage system for your home, business or RV with a safe, simple, reliable and practical lithium ion battery solution. The PHI 3.8 is designed and manufactured in California, USA.

The PHI 3.8 kWh 24V 151 AHr deep-cycle Lithium Ferro Phosphate (LFP) battery is optimized with proprietary cell architecture, power electronics, BMS and assembly methods. It is modular, light-weight and scalable for installations that range from kWh to MWh.

Provides power security and seamless integration of renewable and traditional sources of energy in conjunction with or independent of the grid: net zero, peak shaving, emergency back-up, portable and mobile.

ETL US UL STD 1973
Chemistry Lithium Ferro Phosphate (LFP) The safest Lithium Ion chemistry available No cobalt, risk of thermal runaway or fire

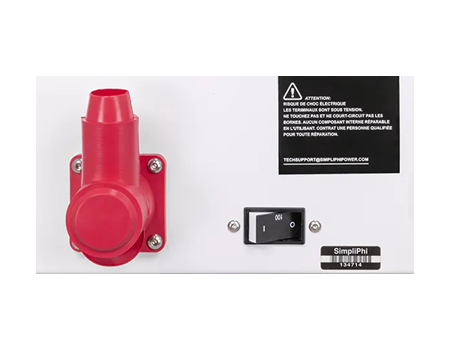

OCPD Built-in, accessible 80 Amp DC breaker on/off switch
BMS Built-in Battery Management System
Compatibility Compatible with all industry standard inverters and charge controllers
Maintenance Maintenance-free
No ventilation, cooling or thermal regulation required

SimpliPhi PHI 3.8 24V Benefits

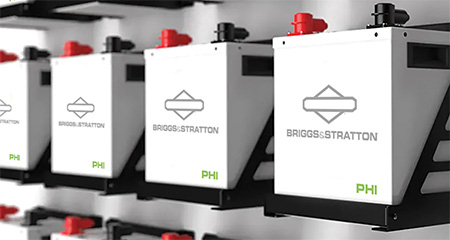

Wall of SimpliPhi batteries

Simple

• Energy and power in one battery
• Drop-in replacement for existing lead acid battery banks
• On- or off-grid
• No thermal monitoring, cooling, fire suppression or ventilation equipment required
• No maintenance

Reliable

• 10-year warranty
• High efficiency rate = more usable power for you
• Provides primary or back-up power for on- or off-grid homes and businesses
• Delivers multiple charge/discharge cycles per day
• Operates in broad temperature range of -4 to 120 degrees F
• Proven in the field for 9+ years

SimpliPhi Phi 3.8 lithium ion battery system

Practical

• Stores electricity from solar, wind, diesel/ gas generators, the grid or any combination

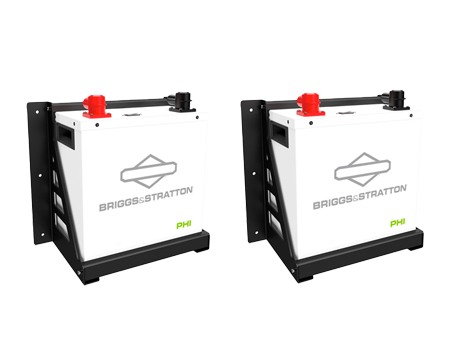

• Modular and scalable: seamlessly add more capacity if energy needs grow
• Install in small spaces
• Indoor and outdoor use in all climates

Safe

• Environmentally benign and non-toxic Lithium Iron Phosphate (LFP)
• No Cobalt - no hazards
• No risk of overheating or fire
• No fumes or off-gassing

Contact us toll-free: (877) 297-0014.

SimpliPhi PHI 3.8 24V Lithium Ion Battery - Low-Price

Double click on above image to view full picture

Zoom Out
Zoom In

Specifications

PHI LITHIUM ION
SimpliPhi Model Number PHI 3.8 24V
Nominal Voltage 25.6V
Nominal Energy 3,800 Wh
Terminal 3/8"
Capacity 151 AHr
Continuous Current 45 A (1.15 KW DC)
Peak Current 60 A for 10 minutes
Weight (lbs) 78.24 lbs. (35.5 kg)
Dimensions 13.5" H x 14" W x 8" D
(15.5" H w/ terminals)
Warranty 10 Years or 10,000 cycles
(@ 80% DOD)
Certifications • UN 3480, Lithium Ion battery contained in equipment, 9, II
• UL, CE, UN/DOT and RoHS compliant components - UL Compliant

Manufacturer Specification Sheets

View FileSimpliPhi Power PHI 3.8 24V & 48V Battery Datasheet    Size: (329.14 KB)
View FileSimpliPhi Power PHI Battery Brochure    Size: (228.54 KB)
View FileSimpliPhi Power PHI 3.8 24V & 48V Battery Warranty    Size: (287.05 KB)
View FileSimpliPhi Power PHI 3.8 24V & 48V Battery Manual    Size: (782.01 KB)

Details

SimpliFi PHI 3.8  Lithium-ion Battery review

SimpliPhi PHI 3.8 24V Lithium Ion Battery Review

Scalable Power Security

SimpliPhi Solar Battery Systems

Build power security with storage solutions for residential and commercial battery banks that provide grid tied back-up, primary, peak and uninterrupted off-grid power reserves.

Proprietary Engineering

SimpliPhi batteries feature non-toxic, non-hazardous Lithium Ferro Phosphate (LFP) chemistry combined with proprietary architecture, circuitry, methods of assembly and Battery Management System (BMS) that offer the highest efficiency charge & discharge rates without heat build-up or cumbersome thermal monitoring.

Proven Performance

Reliable and rugged integrated energy storage and management systems deployed across industries since 2002: film, residential, commercial, military, emergency, agricultural and utility for both on and off-grid power resiliency. SimpliPhi does not beta test on their customers.

Warranty & Technical Support

A portfolio of enduring power storage solutions that come with a robust Warranty and all the technical expertise and support you and your project could possibly need. Our customers are our partners for life.

SimpliPhi PHI 3.8 battery voltage vs. discharged capacity
