Model Number SES-3130J
STC Rating 130.0
PTC Rating 0.0
Open Circuit Voltage (V) 22.0
Short Circuit Current (A) 8.20
Frame Color Silver
Origin Hong Kong
Power % ± -10/10
(W/ft²) 11.90
Area (ft²) 10.9
Weight (lbs) 26.5
Length (in) 59.40
Width (in) 26.50
Height (in) 2.00

Solar Electric Supply SES-3130J Solar Panels


Example Pole Mount PhotographSES 3130J available in SES MAPPS systems

SES 3130J and 3140J Description (replaces the discontinued BP Solar SX 3130J and 3140J)

The SES 3130J 130 Watt photovoltaic module is part of SES's rugged industrial off grid series, providing cost-effective photovoltaic power for DC loads with higher energy requirements. With 36 multicrystalline cells in series, this panel charges batteries efficiently in any climate.  The SES 3130 is intended for 12VDC or 24VDC solar battery charging systems (charge controller highly recommended).  It is ideal for longevity outdoors; with an anodized aluminum frame and tempered glass.  The SES 3130J is approved  for applications in NEC Class 1, Division 2  Groups A, B, C & D hazardous locations and approved for explosion resistance. This certification is required near gas and oil pipelines.

The SES 3130J has  has a weather proof junction box and a very rugged frame. The standard terminals accept 8 AWG to 14 AWG wire. The raintight (IP65 Rated) junction box of the SES 3130J accepts PG13.5 or 1/2" nominal conduit or cable fittings. With its four-terminal connection block, it enables most system array connections (putting modules in series or parallel) to be made right in the junction box.

The SES 3130J uses high efficiency Polycrystalline solar cells

Remote Industrial Applications:

  • Remote telemetry
  • Two Way Radio & Microwave
  • Class I Div 2 Solar Systems for oil/gas
  • Security cameras
  • Cellular Repeaters & Enhancers
  • Oil metering
  • Water metering
  • Security & Area Lighting
  • Obstruction lights

ISO 9001 Certified:

ISO 9001 factory certification ensures that our manufacturing facilities use proven manufacturing and control processes.

Approval Listings and Qualifications:

  • Listed to UL 1703 & ULC ORD-C1703 Standard for Safety by Intertek ETL. Class C Fire Rating.
  • Approved by Intertek ETL according to FM 3611, Dec 2004, and according to CAN/CSA C22.2 No. 213-M1987, 1st Edition, Reaffirmed 2004, for use in a Class I Division 2, Group A, B, C, D Hazardous (Classified) Location.

SES Module Warranty

  • Free from defects in materials and workmanship for 2 years
  • 90% Min power output for 12 years
  • 25 year warranty optional

*Refer to limited warranty certificate for terms and conditions

How to Buy the SES 3130J:

  1. The SES 3130J is available in our complete MAPPS solar power systems that include everything you need to power your remote equipment; solar module, mounting structure, wiring harness, battery enclosure with controller and sealed battery, and installation manual.
  2. OEM's and Industrial Customers can buy in case or pallet quantities, contact us for pricing.

MAPPS Complete Remote Solar Power Systems MAPPS Logo


Conduit ready junction box photographConduit Ready Junction Box, gaskets included, box attached to frame wall for added durability

ISO 9001 Certification Logo

Approved Solar Vendor For:

  • US Federal Agencies
  • US DOD
  • SAIC
  • Black & Veatch
  • Grainger
  • Graybar Electric
  • CED
  • Crescent Electric

Exostar Approved for:

  • Lockheed Martin
  • Boeing
  • Raytheon
  • Hughes
  • & Many others!

We are a government approved vendor, Net 30 with PO. Government, educational and corporate P.O.s & IMPAC cards accepted.

SES 3130J Solar Module Features

Module aluminum frame photographHeavy Duty Aluminum Frame for High Wind Speed Rating & Durability

Module aluminum frame with pre-drilled mounting holes photographModule Frame includes pre-drilled mounting holes for mounting frame and ground

Approval Listings and Certification Label on back of modules photograph

Label on back of modules shows Approval Listings and Certification

The SES 3130J is a direct bolt in replacement for the BP Solar 3115, 3120, 3125, 3130, 3140


SES 3130J Solar Module Specifications:

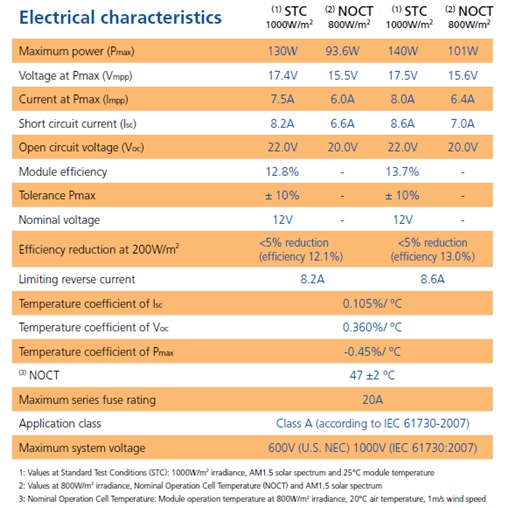

SES 3130J Electrical Characteristics Table

SES 3130 J Module Dimensions Drawing

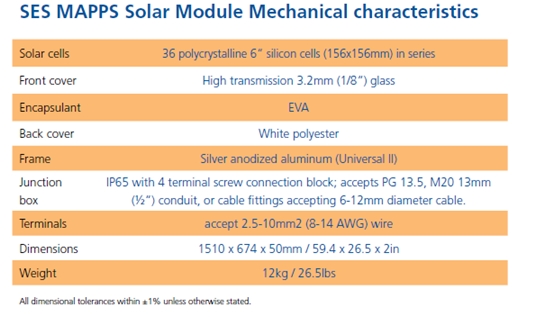

SES 3130 J MAPPS Solar Module Mechanical

SES 3130 J Dependence Graphs
