Orion Pre-Fabricated Scalable Solar Carports

Orion Scalable Solar Carport Structures
Commercial and Utility-Scale Projects


Solar Electric Supply offers the Orion Solar Racking Series Carport Mount System. This Pre-fabricated scalable solar carport structure is a revolutionary system for PV modules on the ground. Orion Solar Racking has brought over 3 years of field experience and special engineering to form unique, patented aluminum base rail and Quickstone technology to enable easier and faster installations.

Orion carport info Orion Saturn Series Specifications

install Orion Saturn Series Assembly Manual



Orion Solar Racking

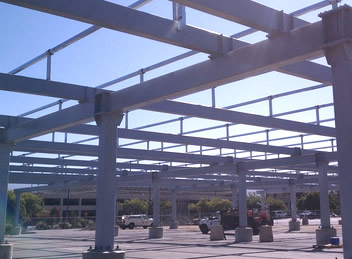

Orion Pre-Fabricated Scalable Solar Carport Structures

car charging

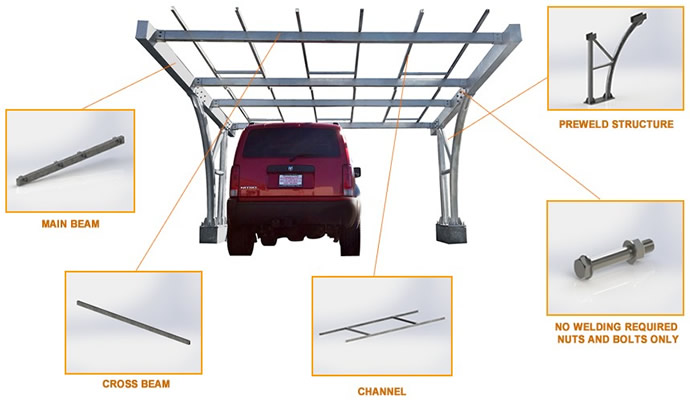

Saturn Series Carport Structure System

  • The structure and components are pre-engineered and pre-fabricated
    to meet/exceed industry standards and prevailing building codes
  • Structures: 2 cars/per unit
  • Power Generation Area/per unit:29 meter square
  • Slope angle: 5 degrees
    • Dimensions
    • Structure Width/per unit~18' (5,500mm)
    • Space Width/per car~9' (2,750mm)/car
    • Structure Height (Front) >9.5' (3,000m)
    • Stucture Height (Back) >8.2' (2,500mm)
    • Structure is scalable to any project size
  • Steel/Galvanizing
  • Concrete piers protect structural steel from vehicle damage
Benefits:

  • Orion solar carports require no roof penetrations and potential maintenance issue
  • Shade structure provides protection from harmful sun/elements
  • Demonstrate "Green" awareness & increase customer/employee loyalty
  • Add car charging unit(s) & increase value for patrons w/ "Plug In Hybrids"
  • Maximize wasted space by generating clean/renewable energy with a solar car park.
  • Earn coveted LEED points
Features:

  • Significantly Reduce Complicated Engineering w/Template & Modular Design
  • Product can scale from residential to large commercial applications w/ease
  • Greatly reduce installation time & labor costs w/pre-assembled components
  • Easy minimal assembly w/no dangerous welding required
  • Minimal man hours mean do more w/less time & money









shade structure

cost
Parking Structure

MFG Website: Orion Solar Racking Saturn Series Carport
