80 Watt Solar Panel - Siemens / Shell Replacement


80W High-Efficiency
Multicrystalline Solar Panel

Drop-in replacement for Siemens SP75, SP70 and
Shell SQ75, SQ80, SQ85

SES 80-P Rugged Aluminium Frame

Not sold retail.
Minimum order 100 units.
Government, OEM & Industrial customers,
please contact us for pricing


SES 80-P Standard J-Box

SES 80-P

This solar module has a
20 year performance warranty

High-Quality - High Efficiency - Compatible

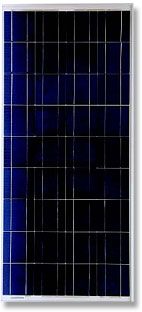

SES 80-P Polycrystalline Solar ModuleThe SES80-P is a high-efficiency polycrystalline solar module. Thanks to its optimum size, it is easy to handle and specifically designed for large scale off grid applications. It will fit in any mount or application requiring a Siemens SP75 or Shell SQ75, SQ80 or SQ85.

Compare to the Siemens SP70, SP75 & Shell SQ75, SQ80, SQ85

This solar module uses multicrystalline technology. Encapsulation beneath high transmission tempered glass is accomplished using an advanced, UV resistant thermal setting plastic. The ethylene vinyl acetate encapsulant cushions the solar cells within the laminate and protects the cells from etching. The rear surface of the module is completely sealed from moisture and mechanical damage by a continuous high strength polymer sheet.

The SES80-P uses a reinforced anodized aluminum frame, designed to meet our high quality standards for corrosion resistance. The standard junction box makes wiring a snap for anybody familiar with the Siemens Solar Powermax SP75, SP70 or Shell PowerMax Ultra SQ75, SQ80, SQ85.

SES 80-P Call BoxIdeal for Stand-Alone Solar Power Systems for:

· Villages in remote areas
· Homes and summer cottages
· Microwave / Radio repeater stations
· Medical facilities in rural areas
· Emergency communication
· Water quality and environmental data monitoring
· Drinking water and livestock water pumping
· Small-scale irrigation pumping
· Cathodic protection
· Aviation obstruction lights
· Environmental data monitoring
· Railway signals
· Street lighting
· Small-scale desalination

Dimensions: Length: 47.2" x Width: 20.8" x Depth: 1.57"
Weight (without box): approx. 16.8 lbs.

Electrical Data
Maximum Power (Pmax)
80 Watts
Tolerance ± 5%
Maximum Power Voltage (Vpm) 17.2 Volts
Maximum Power Current (Ipm) 4.65 Amps
Open Circuit Voltage (Voc) 21.6 Volts
Short Circuit Current (Isc) 5.05 Amps
Maximum System Voltage 600 Volts
Temp. coefficient of Voc .08V x 50° F
Temp. coefficient of Isc .37A x 50° F

Number per module 36
Cell Technology Polycrystalline
Cell Shape Rectangular

Not sold retail.
Minimum order 100 units.
Government, OEM & Industrial customers,
please contact us for pricing

Call toll-free (877) 297-0014
or email us for expert assistance or to order.
