Ephase IQ Battery 10C Specifications

Battery Model	IQBATTERY-10C-1P-NA
Usable Energy Capacity	10.0 kWh (Two 5.0 kWh battery units)
Continuous Output Power	7.08 kVA
Peak Output Power (10 sec)	14.16 kVA
Battery Chemistry	Lithium Iron Phosphate (LFP)
Mounting Options	Wall Mount or Pedestal (sold separately)
Cooling	Natural Convection (No Moving Parts)
Enclosure Rating	NEMA Type 3R (Outdoor Rated)
Operating Temperature	–4°F to 131°F (–20°C to 55°C)
Communication	Wired Control / Enphase App Compatible

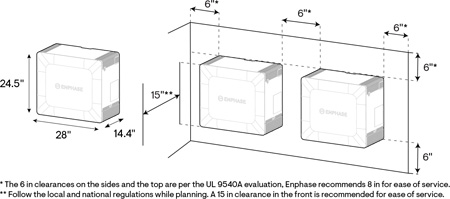

Dimensions (H × W × D)	24.5 in × 28 in × 14.4 in
Total installed weight	317 lbs (144 kg)

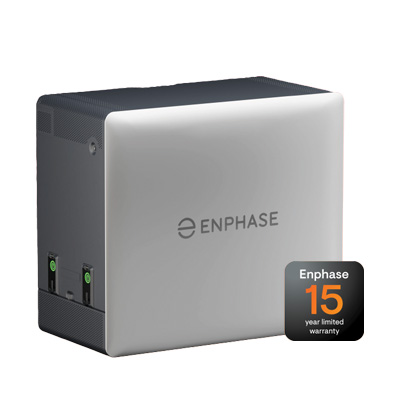

Warranty	60% capacity, up to 15 years, or 6,000 cycles
Compatibility	Compatible with IQ and M Series Microinverters, IQ Meter Collar, IQ Combiner 6C, and IQ Gateway for grid-tied and backup operations.

Residential Roof Mount Kit Prices

Complete roof mounted solar systems engineered for durability and ease of installation. Our premium kits include IronRidge XR rail systems, compatible with all our solar panels and available for all roof types, with special options for tile, flat, and metal roofs at competitive wholesale pricing.

View Latest Roof Mount System Prices

Enphase IQ Battery 10C (IQBATTERY-10C-1P-NA)

Name: Enphase IQ Battery 10C (IQBATTERY-10C-1P-NA)
SKU: ENPHASE-IQ-BAT-10C-LION

SKU ENPHASE-IQ-BAT-10C-LION

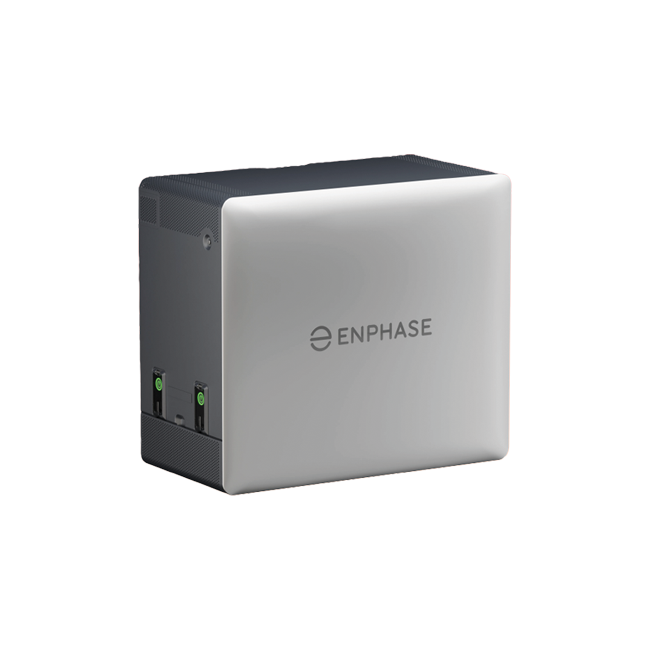

The Enphase IQ Battery 10C

The Enphase IQ Battery 10C is a powerful, compact AC-coupled energy storage solution designed for seamless integration into new or existing Enphase Energy Systems. With a usable capacity of 10.0 kWh and four embedded microinverters, it provides 7.08 kVA of continuous power with exceptional reliability and safety, leveraging lithium iron phosphate (LFP) chemistry.

Engineered for simplicity and performance, the IQ Battery 10C supports whole-home backup, self-consumption, time-of-use optimization, and more. Its passively cooled design eliminates moving parts, reducing maintenance, while remote monitoring via the Enphase App ensures visibility into system performance at all times.

Enphase IQ Battery 10C Features

High-Capacity Energy Storage: Provides 10.0 kWh of usable capacity using two 5.0 kWh LFP battery units for safe, long-lasting home energy storage.
Integrated Microinverters: Includes four embedded IQ8B microinverters for 7.08 kVA continuous output and 14.16 kVA peak power.
Passive Cooling Design: Uses natural convection with no moving parts for silent, low-maintenance operation and improved system reliability.
Enphase App Monitoring: Enables real-time system insights, remote updates, and performance tracking via the Enphase Energy App.
Installer-Friendly Setup: Ships with mounting brackets, pre-wired internal connectors, and templates for fast, accurate wall-mounted installation.

What’s Included in the Box?

The IQ Battery 10C (IQBATTERY-10C-1P-NA) ships in three boxes and includes two 5.0 kWh battery units, wall-mount brackets, seismic hardware, and a cover kit with interconnect power/control cables, raceway adapters, cable holders, and conduit covers. All components required for internal battery linking and wall installation are included.

Attachments Details

Enphase IQ Battery 10C Review

The IQ Battery 10C is Enphase’s next-generation home energy storage system, delivering both high performance and versatility in a single, field-ready package. With its embedded microinverters, it offers seamless integration into grid-tied or hybrid setups, simplifying installation while maximizing reliability.

Built on lithium iron phosphate chemistry and passively cooled, the IQ Battery 10C balances safety, durability, and efficiency. It’s fully compatible with Enphase's ecosystem, including the IQ Combiner 6C, IQ System Controller 3M, and IQ Meter Collar—making it an excellent choice for homeowners looking for scalable backup power and full system visibility.

Expected Q2 - Q3 2025 - Contact us for more details!
