AP Smart Rapid Shutdown RSD-S-PLC Specifications
| Model | RSD-S-PLC |
| Input Voltage Range | 10.5–80 V DC |
| Output Voltage Range | 10.5–80 V DC |
| Max Continuous Input Current | 15 A |
| Max Short Circuit Current | 25 A |
| Max System Voltage | 1000V / 1500V |
| Max Series Fuse Rating | 30 A |
| Communication | PLC (Power Line Communication) |
| Operating Temp Range | -40°F to +185°F |
| Enclosure Rating | NEMA 6P / IP68 |
| Dimensions | 5.5" x 1.3" x 0.7" |
Sol-Ark Residential & Commercial Hybrid Inverters
Check out our full section of Sol Ark hybrid inverters available for both residential and commercial applications.

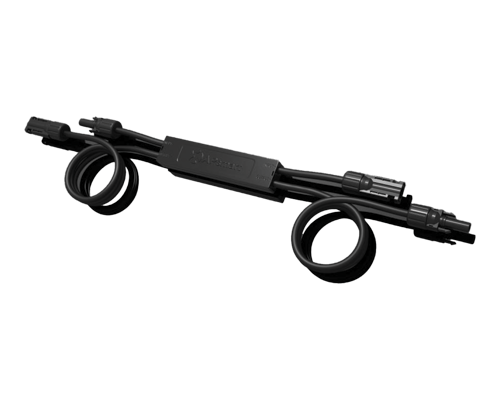

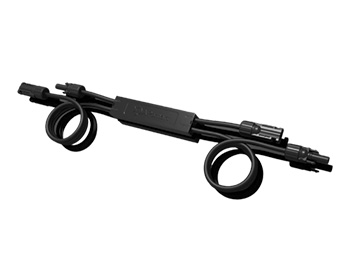

APsmart RSD-S-PLC Rapid Shutdown Device
SKU APS-RSD-S-PLC-SES
The RSD-S-PLC Rapid Shutdown Device

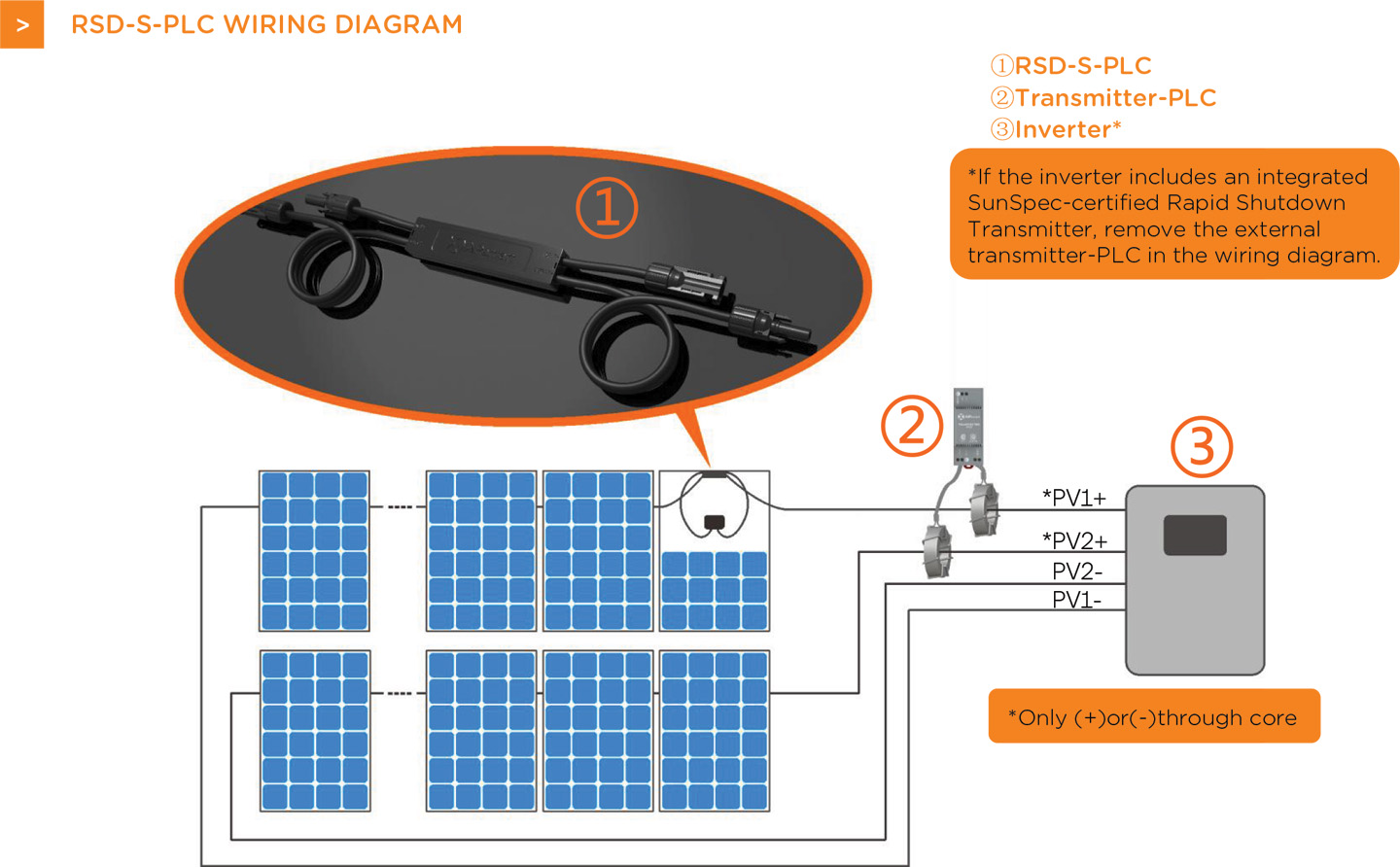

The APsmart RSD-S-PLC is a module-level power electronics (MLPE) solution designed to meet NEC 2017, 2020, and 2023 690.12 requirements for rapid shutdown in solar installations. Fully SunSpec-certified, it uses Power Line Communication (PLC) to receive heartbeat signals from the transmitter and shuts down operation immediately when a signal is lost.
Built with an APsystems-designed ASIC chip and a high-integration SoC, the RSD-S-PLC offers unparalleled reliability, low power consumption, and noise isolation from AFCI systems. Its compact form factor, rugged IP68-rated enclosure, and flexible mounting options make it ideal for both residential and commercial solar projects.
AP Smart RSD-S-PLC Features
- NEC 2017–2023 Compliant: Fully meets 690.12 rapid shutdown requirements across the latest NEC code cycles.
- SunSpec Certified: Communicates via PLC to execute rapid shutdown when transmitter signal is lost.
- Proprietary RSD ASIC Design: High-reliability chip architecture reduces board complexity and enhances fault tolerance.
- Low Voltage Operation: Activates with just 10.5V, extending daily runtime by 15–30 minutes compared to standard RSD units.
- NEMA 6P/IP68 Rated: Fully sealed and submersible enclosure withstands harsh outdoor environments.
AP Smart RSD-S-PLC Certifications
Safety Compliance:
- NEC 2017, 2020&2023 (690.12)
- UL1741
- CSA C22.2 No. 330-17
- IEC/EN62109-1
- 2PFG2305
EMC Compliance
- FCC Part15
- ICES-003
- EIEC/EN61000-6-1/-2/-3/-4
APsmart RSD-S-PLC Rapid Shutdown Device Review
The APsmart RSD-S-PLC is a certified rapid shutdown solution engineered to meet the latest NEC 2017 & 2020 (690.12) requirements. Designed for PV module-level safety, it works seamlessly with SunSpec-certified Transmitters to rapidly de-energize the system in the event of an emergency or signal loss.
Built on a highly integrated SoC design, the RSD-S-PLC delivers reliable, low-power performance in a compact, easy-to-install form. Its flexible mounting options, IP68-rated housing, and wide voltage range make it ideal for residential and commercial solar applications demanding code compliance, system stability, and simplified field deployment.
