Blue Sky Solar Boost 2512iX Charge Controller

SKU SB2512iX

No Longer Available


  • 25 Amp 12 Volt Rating Supports A Wide Range Of Applications
  • Optional IPN-ProRemote Display Provides Charge Control & Full-Featured Battery Monitoring System
  • 3-Stage Charge Control with Filtered PWM Output Improves Battery Performance & Life While Minimizing Battery Maintenance
  • Clear Anodized Faceplate, Galvanized Mounting Box & Conformal Coated Electronics Resist Corrosion
  • Full 5 Year Limited Warranty
  • Add an IPN Remote for basic charge controller status

Additional SB2512iX Features Include:

  • Automatic or Manual Equalization To Periodically Condition Flooded Lead-Acid Batteries
  • Full IPN Network Interface Coordinates Multiple Controllers & Shares Optional Battery Temperature Sensor & Display
  • Auxiliary Output Provides 25 Amp Load Control Or 2 Amp Auxiliary Battery Charge
  • Battery Temperature Sensor Input
Blue Sky Energy Solar Boost

Solar Boost 2512iX

The Solar Boost 2512iX is low cost MPPT charge controllers. The Solar Boost 2512iX includes post-dusk and pre-dawn timers for use with solar lighting and other timed loads.

The low cost Solar Boost 2512i provides an advanced fully automatic 3-stage charge control system to ensure the battery is properly and fully charged, resulting in enhanced battery performance with less maintenance. A partial IPN™ network interface is also included to allow use of the IPN-Remote or IPN-ProRemote displays.

Blue Sky Energy's advanced Integrated Power Net™, or IPN Network, allows up to 8 IPN capable charge controllers to communicate with each other and operate as a single machine rather than separate charge controllers. The IPN network also allows networked controllers to share an optional battery temperature sensor and remote display. The IPN network does not require a display or other special hardware to operate.

Solar Boost SB2512i Charge Controller Specifications:

Solar Boost SB2512i Charge Controller Specification

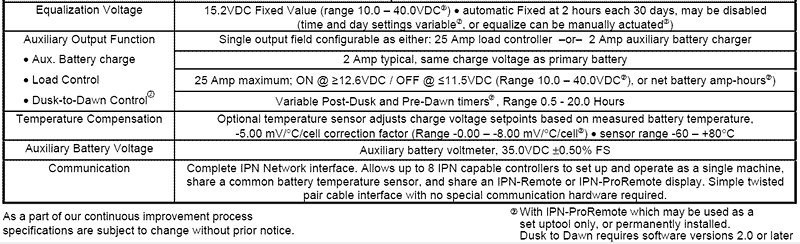

Additional Specifications / Features for the Solar Boost SB2512iX Charge Controller:

Solar Boost SB2512i Charge Controller Additional Specification

Blue Sky Solar Boost 2512iX Charge Controller Options:

IPNREM IPN Remote display. 25' (7.6m) cable included, CE labeled.
IPNPRO IPN-ProRemote display w/o required shunt. 25' (7.6m) cable included, CE labeled.
930-0022-20 Optional battery temperature sensor
930-0039-01 SB2512i(X) & SB1524iX Deluxe wall mount box - 2.75" (7cm) deep. Black powder coat
UCM Universal Communication Module ( est. March 2011) External communication bridge via RS-485Modbus, Modbus/IP and HTTP web site driver
