Blue Sky Solar Boost 50L Charge Controller


No Longer Available


  • Patented MPPT technology increases charge current up to 30% or more!
  • 50A/24V rating supports large solar module arrays
  • Three stage PWM charge control optimizes charge parameters to battery size & type
  • MPPT power converter can charge lower voltage battery from higher voltage array
  • Electronic current limit prevents overload or nuisance fuse blow
  • Available digital display monitors PV charge performance
  • Durable powder coat finish & conformal coated electronics resist corrosion
  • Fully protected against excess current, temperature, transient voltage & polarity
  • Full 5 Year Limited Warranty
  • ETL listed to UL STD. 1741, certified to CAN/CSA STD. E335-1/2E, CE labeled
Blue Sky Energy Solar Boost

Blue Sky solar boost 50L charge controllerThe Blue Sky Solar Boost 50L MPPT Charge Controller uses Maximum Power Point Tracking technology to improve charge current up to 30% or more.

The Solar Boost 50L charge controller uses patented Maximum Power Point Tracking (MPPT) technology. MPPT allows the Solar Boost 50L to increase charge current up to 30% or more compared to conventional solar charge controllers. Don’t waste money by throwing PV power away! Get the power you paid for with a Solar Boost 50L charge controller.

The Solar Boost 50L controller also provides an advanced fully automatic three stage charge control system to ensure the battery is properly and fully charged, resulting in enhanced battery performance with less battery maintenance. An equalize function is also included to periodically condition liquid electrolyte lead-acid batteries.

An optional user friendly digital display is available to monitor PV charge performance. Optional temperature compensation of charge voltage is also available to further improve charge control and battery performance.

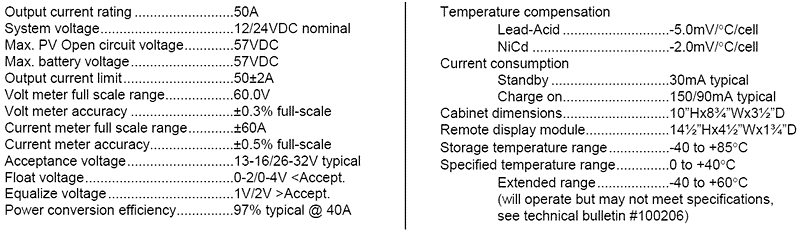

Blue Sky Solar Boost 50 Specifications:

Blue Sky solar boost 50L specifications

Blue Sky Solar Boost 50L Charge Controller Options:

SB50PDL SB50 cover with built in digital display
SB50RD25 Remote digital display for SB50, 3048 & 6024H. 25' (7.6m) cable included
310-0010-01 SB50 power control board & heatsink
310-0013-01 SB3048 power control board & heatsink
930-0022-20 Optional battery temperature sensor
