CPS SCA25KTL-DO-R/US-480 Specifications
| Model | CPS SCA25KTL-DO-R/US-480 |
| Rated Output Power | 25 kW |
| Max Efficiency | 98.5% (CEC: 98.0%) |
| MPPT Channels | 2 independent MPPTs |
| Max PV Input Power | 37.5 kW (22 kW per MPPT) |
| Max Input Voltage | 1000V DC |
| MPPT Voltage Range | 560-850V DC |
| Max Input Current | 72A (36A per MPPT) |
| Output Voltage | 480V AC 3-Phase |
| Max Output Current | 30.5A @ 480V AC |
| Operating Temperature | -30°C to 60°C (-22°F to 140°F) |
| Ingress Protection | NEMA Type 4X |
| Dimensions | 15.95 × 15.75 × 7.87 in |
| Weight | 48.5 lb |
| Warranty | 10 Years (15/20 year extensions available) |
Complete solar systems engineered for membrane or torch down roofs, standing metal seam, corrugated steel, concrete, flashed or non-flashed composition, tile, metal, and virtually any sloping roof application. Available at competitive wholesale pricing.

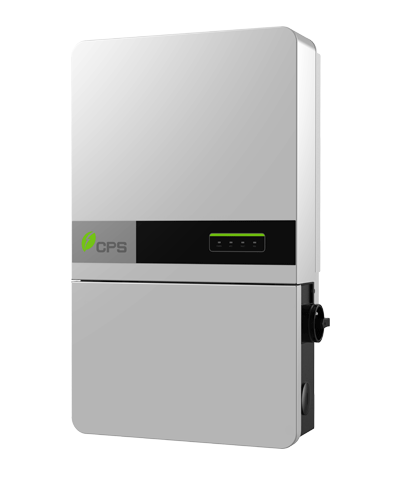

Chint CPS SCA25KTL 25kW 480V 3-Phase String Inverter w/ RSD
SKU CPS-SCA25KTL-25KW-480C-INVERTER
3-Phase String Inverter with Rapid Shutdown - 480V Commercial Solar
The Chint Power Systems CPS SCA25KTL-DO-R/US-480 delivers 25kW of three-phase power output with 98.5% peak efficiency and 98.0% CEC efficiency, specifically engineered for North American commercial rooftop and carport installations. This transformerless string inverter features dual MPPT channels with 37.5kW maximum PV input capacity, 1000VDC maximum input voltage, and 480VAC three-phase output designed for demanding commercial applications.
Advanced safety features include integrated PVRSS-certified rapid shutdown, UL-1699B compliant arc-fault circuit protection, and Smart-Grid Rule 21 compliance with IEEE 1547-2018 certification. The inverter supports flexible mounting orientations from 15-90 degrees for low-profile installations, includes WiFi connectivity through the CPS Connect Pro app, and offers optional CPS FlexOM Gateway for comprehensive site monitoring and remote diagnostics.
CPS SCA25KTL-DO-R/US-480 Features
- Advanced Safety Integration: PVRSS-certified rapid shutdown with UL-1699B arc-fault protection ensures compliance with latest safety standards and code requirements
- High-Efficiency Performance: 98.5% peak efficiency with transformerless topology minimizes energy losses and maximizes system performance in commercial applications
- Smart Grid Compliance: IEEE 1547-2018 and Rule 21 certification with volt-VAR, frequency-watt, and volt-watt grid support functions for utility integration
- Dual MPPT Flexibility: Two independent MPPT channels with 22kW capacity each optimize energy harvest from different roof orientations and shading conditions
- Installation Versatility: 15-90° mounting orientation capability with optional 15° tilt rack assembly accommodates challenging roof conditions and space constraints
CPS SCA25KTL-DO-R/US-480 Certifications
The CPS SCA25KTL-DO-R/US-480 meets stringent North American safety and performance standards for commercial solar installations.
Certifications and standards:
- UL 1741-SA/SB Ed. 3, UL 1699B, UL 1998, CSA-C22.2 NO.107.1-01, IEEE 1547-2018, FCC Part 15
Selectable grid standards:
- IEEE 1547a-2014, IEEE 1547-2018, CA Rule 21, ISO-NE, HECO
Smart-grid features:
- Volt-RideThru, Freq-RideThru, Ramp-Rate, Specified-PF, Volt-VAR, Freq-Watt, Volt-Watt

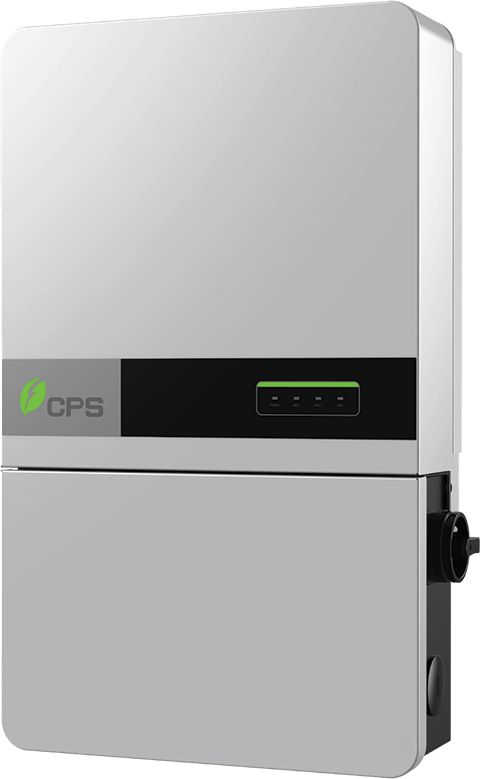

CPS SCA25KTL-DO-R/US-480 3-Phase Inverter Technical Review
The Chint Power Systems CPS SCA25KTL-DO-R/US-480 represents a well-engineered solution for medium-scale commercial installations, combining high efficiency with comprehensive safety features required by North American electrical codes. The dual MPPT architecture with 37.5kW input capacity provides significant oversizing capability, allowing for optimal energy harvest in varying conditions while maintaining the 25kW AC output limit. The 480VAC three-phase output matches standard commercial electrical systems, eliminating the need for step-up transformers.
Engineering highlights include the integrated rapid shutdown wire-box that simplifies installation while ensuring PVRSS compliance, variable speed cooling fans for thermal management, and NEMA 4X enclosure protection for harsh environmental conditions. The Smart Grid functionality with IEEE 1547-2018 certification ensures compatibility with evolving utility requirements, while the optional CPS FlexOM Gateway provides enterprise-level monitoring capabilities for portfolio management. The 15-90° mounting flexibility addresses challenging installation scenarios commonly encountered in commercial rooftop applications.
