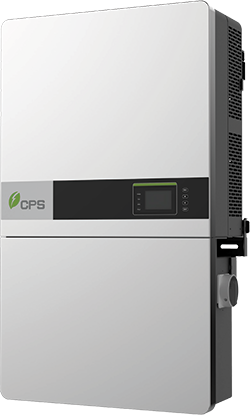

CPS SCA36KTL-DO/US-480 Specifications
| Model | CPS SCA36KTL-DO/US-480 |
| Rated Output Power | 36 kW |
| Max Efficiency | 98.18% (CEC: 97.4%) |
| MPPT Channels | 3 independent MPPTs |
| Max PV Input Power | 61.2 kW (22.4 kW per MPPT) |
| Max Input Voltage | 1000V DC |
| MPPT Voltage Range | 400-850V DC |
| Max Input Current | 163.2A (54.4A per MPPT) |
| DC Inputs | 15 inputs (5 per MPPT) |
| Output Voltage | 480V AC 3-Phase |
| Max Output Current | 43.5A @ 480V AC |
| Operating Temperature | -22°F to 140°F |
| Ingress Protection | NEMA Type 4X |
| Dimensions | 39.4 × 23.6 × 10.24 in |
| Weight | 123.5 lb |
| Warranty | 10 Years (15/20 year extensions available) |
Complete solar systems engineered for membrane or torch down roofs, standing metal seam, corrugated steel, concrete, flashed or non-flashed composition, tile, metal, and virtually any sloping roof application. Available at competitive wholesale pricing.
Chint CPS SCA36KTL 36kW 3-Phase 480V String Inverter
SKU CPS-SCA36KTL-36KW-480V-INVERTER

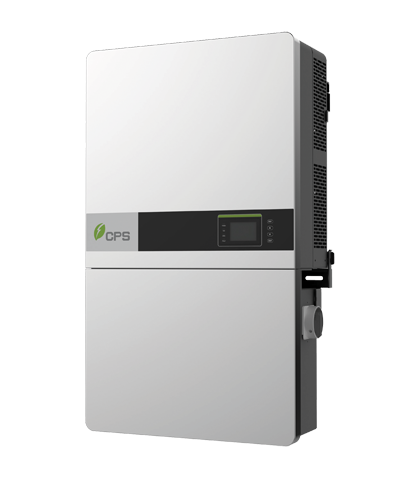

Chint CPS SCA36KTL V2 36kW 3-Phase String Inverter - 480v
The Chint Power Systems CPS SCA36KTL-DO/US-480 V2 delivers 36kW of three-phase power output with 98.18% peak efficiency and 97.4% CEC efficiency, representing the enhanced V2 generation specifically engineered for North American commercial rooftop and carport installations. This transformerless string inverter features three independent MPPT channels with 61.2kW maximum PV input capacity, 1000VDC maximum input voltage, and 480VAC three-phase output designed for medium-scale commercial applications.
Advanced V2 features include standard wire-box design with PVRSS certification capability, UL-1699B compliant arc-fault circuit protection, and comprehensive Smart-Grid compliance with IEEE 1547-2018 and Rule 21 certification including SA8-SA18 volt-watt functionality. The inverter supports flexible mounting orientations from 15-90 degrees for challenging installations, features separable wire-box design for enhanced serviceability, and offers optional CPS FlexOM Gateway for enterprise-level monitoring with remote firmware upgrade capabilities.
CPS SCA36KTL 36kW 408v Inverter Features
- Enhanced V2 Architecture: Three independent MPPT channels with 15 DC inputs and 22.4kW capacity each provide maximum design flexibility for complex roof configurations
- Exceptional Oversizing Capability: 61.2kW DC input capacity enables 170% oversizing ratio for optimal energy production in varying weather conditions
- Separable Wire-Box Design: Enhanced serviceability with removable wire-box for simplified maintenance access and reduced downtime
- Advanced Grid Compliance: IEEE 1547-2018 and Rule 21 SA8-SA18 certification with comprehensive volt-watt and grid support functions
- Integrated Safety Systems: PVRSS-ready standard wire-box with UL-1699B arc-fault protection and integrated AC/DC disconnect switches for comprehensive safety
CPS SCA36KTL-DO/US-480 Certifications
The CPS SCA36KTL-DO/US-480 V2 meets stringent North American safety and performance standards for commercial solar installations.
Certifications and standards:
- UL 1741-SA/SB Ed. 3, UL 1699B, UL 1998, CSA-C22.2 NO.107.1-01, IEEE 1547-2018, FCC Part 15
Selectable grid standards:
- IEEE 1547a-2014, IEEE 1547-2018, CA Rule 21 (including SA8-SA18 VW), ISO-NE, HECO
Smart-grid features:
- Volt-RideThru, Freq-RideThru, Ramp-Rate, Specified-PF, Volt-VAR, Freq-Watt, Volt-Watt
CPS SCA36KTL-DO/US-480 3-Phase Inverter Technical Review
The Chint Power Systems CPS SCA36KTL-DO/US-480 V2 combines exceptional efficiency with enhanced serviceability features. The three-MPPT architecture with 15 DC inputs provides unprecedented design flexibility, allowing installers to accommodate complex roof layouts while maintaining optimal power point tracking across all array sections. The 61.2kW DC input capacity enables substantial oversizing opportunities, maximizing energy production during low-irradiance conditions.
Includes a separable standard wire-box design that streamlines maintenance procedures, advanced Rule 21 compliance with SA8-SA18 volt-watt functionality for evolving utility requirements, and enhanced thermal management through variable speed cooling systems. The 480VAC three-phase output directly integrates with standard commercial electrical infrastructure, while the comprehensive safety features including PVRSS-ready capability and integrated disconnect switches ensure code compliance. The optional CPS FlexOM Gateway provides enterprise-level monitoring capabilities essential for commercial portfolio management and remote diagnostics.
